Explore the different types of fits in engineering including clearance, transition, and interference fits with standards and practical design tips.

Why Understanding Types of Fits Matters in Mechanical Design

In mechanical design, selecting the right type of fit is crucial for ensuring that parts assemble correctly, function reliably, and last longer. Types of fits determine how tightly or loosely two mating parts, such as a shaft and hole, fit together. This impacts everything from ease of assembly and operational performance to wear and maintenance needs.

Ignoring proper fit selection can lead to issues like excessive vibration, premature failure, or difficulties during assembly. On the other hand, choosing the right fit optimises engineering tolerances, minimises tolerance stack-up, and improves overall product quality. Understanding the different types of fits helps engineers balance precision machining costs against functional requirements, making designs more efficient and dependable.

Whether you’re dealing with clearance fits that allow free movement or interference fits for permanent joins, knowing when and how to apply each fit type is essential for delivering mechanical mating parts that perform as intended under real-world conditions.

The Core Categories Breaking Down the Different Types of Fits

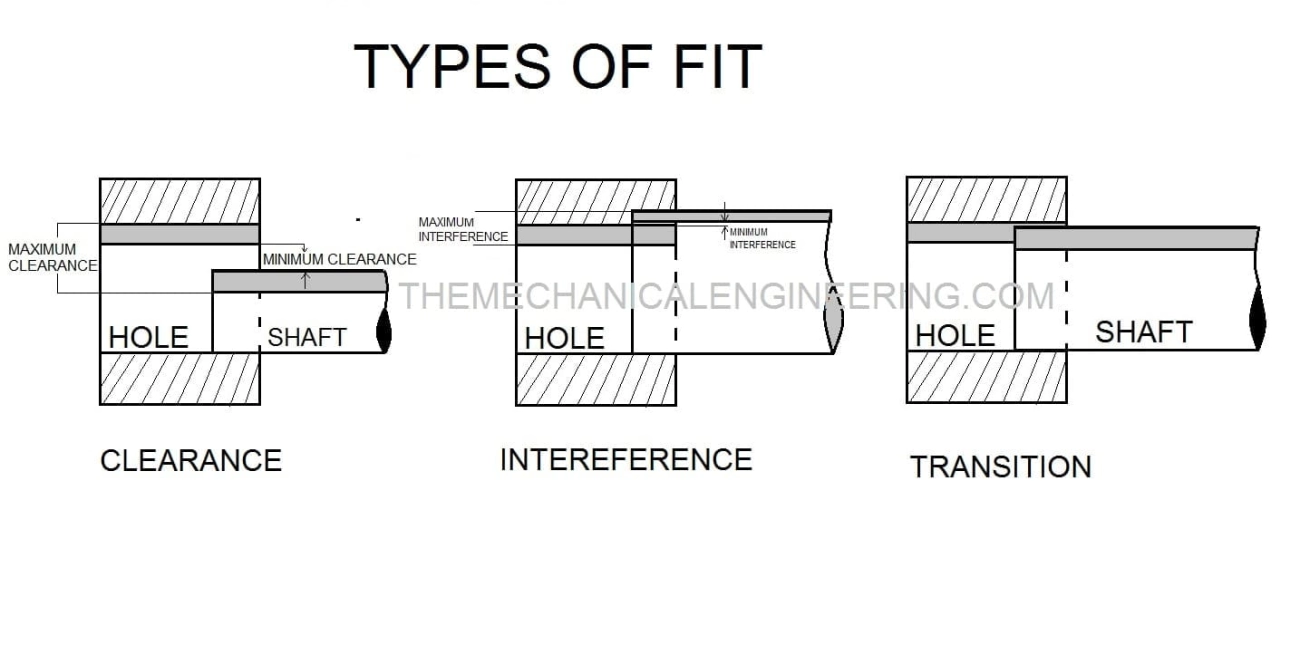

When it comes to mechanical mating parts, understanding the different types of fits is key. There are three core categories to know: clearance fits, transition fits, and interference fits. Each serves a unique purpose depending on how tight or loose you want your shaft hole assembly to be.

Clearance Fits For Free Movement and Easy Assembly

Clearance fits are all about space. They provide enough gap between the shaft and hole so parts can move freely or be assembled without hassle. This is great for applications where easy installation, adjustment, or rotation is needed. Clearance fit examples include loose couplings and sliding assemblies where low friction is a priority.

Transition Fits The Versatile Middle Ground

Transition fits sit between clearance and interference fits. They offer a balance, sometimes snug, sometimes with a slight clearance. This fit is versatile for parts that need precise location without rigid locking down. Often called transition location fits, they’re commonly used when moderate tolerance stack-up analysis is needed to keep parts from shifting but still allow disassembly.

Interference Fits For Rock Solid Permanent Bonds

Interference fits, also known as press fits, create a tight bond by making the shaft slightly larger than the hole. This causes the parts to lock firmly together, ideal for permanent assembly where movement is not acceptable, like in press-fitted gears or bearings. In the UK market, interference press fit applications require high precision machining fits and strict engineering tolerances to avoid damage during installation.

Knowing these three categories helps you select the right fit based on your project needs and standards, whether following ISO 286 standards or ANSI B4.1 fits.

Standards and Systems Navigating ISO 286 vs ANSI B4.1

When working with different types of fits, understanding the key standards is crucial. The two main systems you’ll encounter are ISO 286 and ANSI B4.1. Both set guidelines on tolerances, fits, and clearances but cater to slightly different needs.

ISO 286 ISO 286

On the other hand, ANSI B4.1 is more common in the United Kingdom and ties closely with inch-based measurements. It covers allowances and tolerances for shaft and hole assemblies, including popular interference press fit examples. ANSI standards are handy when dealing with older equipment or manufacturing setups in the United Kingdom that rely on imperial units.

Both standards support engineers in performing accurate tolerance stack-up analysis for mechanical mating parts. The choice between them often depends on your project’s location, tooling, and customer requirements.

Understanding these systems helps you pick the right tolerance levels and reduces errors during assembly, leading to better-performing products with predictable mechanical behaviour.

How to Choose the Right Fit for Your Application A Step by Step Guide

Picking the right type of fit for your mechanical mating parts isn’t just guesswork—it’s about balancing function, ease of assembly, and durability. Here’s a simple approach you can follow:

1. Define the Purpose

Start by asking what the connection needs to do. Should the parts move freely, stay fixed permanently, or allow slight adjustment? This helps you narrow down between clearance, transition, or interference fits.

2. Consider Load and Stress

Think about the forces your parts will face. High loads or heavy vibrations usually call for an interference press fit to keep everything locked. Light loads might be fine with clearance fits.

3. Check Manufacturing Limits

Review your engineering tolerances and precision machining capabilities. Some fits require tighter control, which can increase costs. Make sure your workshop can handle the chosen fit’s requirements.

4. Evaluate Assembly Method

If you need easy disassembly or quick assembly, clearance fits or light transition fits work best. For permanent, rock-solid joints, interference fits are the way to go.

5. Reference Standards

Use standards like ISO 286 or ANSI B4 1 fits to select tolerances and limits that match industry best practices. This also makes communication with suppliers smoother.

6. Perform Tolerance Stack-up Analysis

Before finalising, analyse the combined variation of all parts involved. This prevents surprises and ensures everything fits as expected.

By following these steps, you’ll pick a fit that matches your application’s needs without overdoing tolerance tightness or compromising functionality. If you want deeper insights, check out our guide on engineering tolerances for more details on precision fits.

Common Pitfalls and Pro Tips for Implementing Fits

When working with different types of fits, it’s easy to make mistakes that lead to assembly issues, poor performance, or increased costs. Here’s what to watch out for and some practical tips to get it right:

Common PitfallsIgnoring Tolerance Stack Up

Overlooking how tolerances add up between mating parts can cause fits to be too tight or too loose. Always analyse the combined variation to avoid surprise interference or clearance.

Choosing the Wrong Fit for the Application

Using an interference fit where a clearance fit is needed can damage parts or complicate assembly. Make sure you understand the functional needs before selecting a fit type.

Skipping Standard References

Avoid making custom fits without referring to standards like ISO 286 standards or ANSI B4 1 fits. These standards help ensure compatibility and easier replacement or tooling.

Poor Communication Between Teams

Mechanical design, machining, and assembly teams must be on the same page about fit requirements. Miscommunication can lead to parts not fitting as intended.

Pro TipsDefine Clear Specifications Early

Outline your fit requirements upfront, including shaft hole assembly dimensions and tolerances. This avoids guesswork down the line.

Use Transition Fits for Versatility

When unsure, transition fits offer flexibility, allowing slight clearance or interference as needed.

Validate with Precision Machining Fits

Work with your machinist to confirm achievable tolerances and confirm which mechanical mating parts best suit your application.

Test in Real Conditions

Whenever possible, assemble prototype parts to check how fits perform under actual conditions like temperature changes or load.

By staying mindful of these pitfalls and applying these tips, you’ll save time, reduce waste, and get reliable results in your mechanical design projects. For more on tolerance management, check out our guide on [engineering tolerances].
