Discover what precision casting molds are how they work their types and advantages for accurate complex manufacturing applications by vast experts

Understanding Precision Casting Molds

Precision casting molds are specialized tools used to create highly detailed and accurate metal parts through the precision casting process. Also known as investment casting molds, they serve as the exact negative shape in which molten metal is poured to form complex components.

There are several types of precision casting molds, with the most common being:

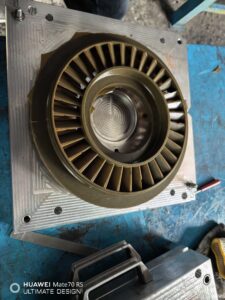

Wax molds: These are created by injecting wax into a metal mold to form a precise pattern. The wax model is then coated with ceramic to form a shell.
Ceramic molds: Used mainly in the shell-building phase, these molds are made from layers of ceramic slurry and refractory materials that harden around the wax pattern to withstand high temperatures.

Materials commonly used for precision casting molds include:

Wax for initial pattern making
Ceramic materials such as silica, zircon, and alumina for mold shells

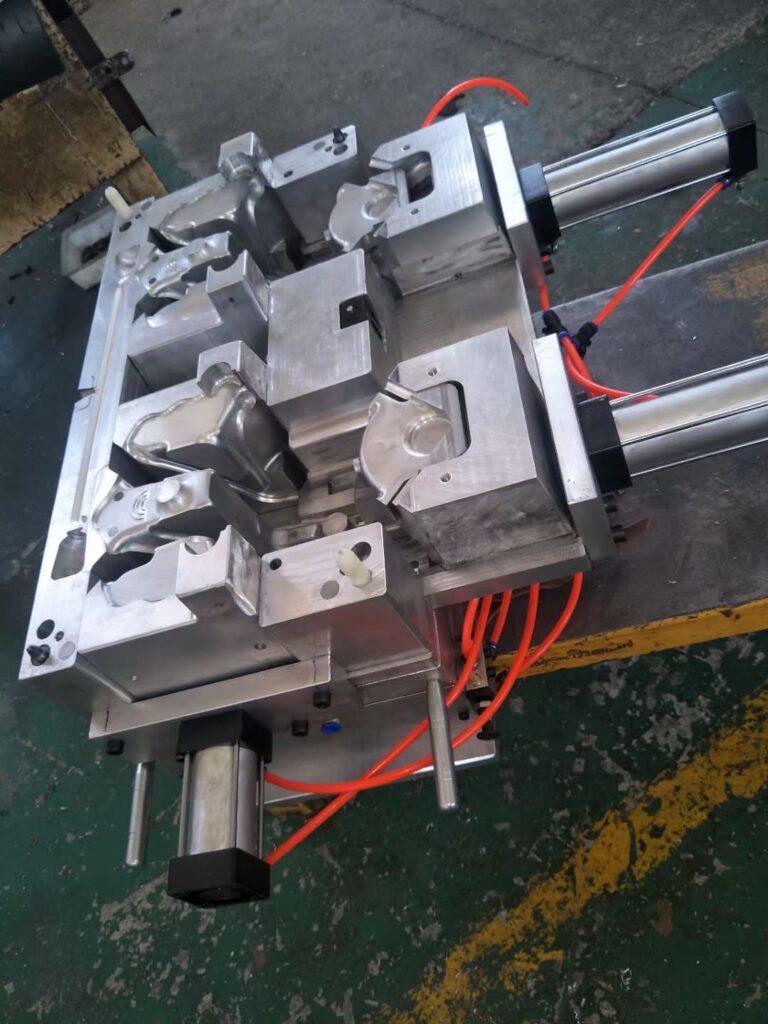

Metal molds for wax pattern production in high-volume runs

The precision casting process closely ties the mold materials and types to the final product quality. Starting with an accurate wax pattern, followed by a durable ceramic shell mold, ensures the fine details and tight tolerances are maintained throughout casting. This method allows complex shapes to be replicated with excellent surface finish and dimensional consistency.

How Precision Casting Molds Work

Precision casting molds are at the heart of creating detailed, high-quality parts. Here’s a simple step-by-step look at how they work, from mold creation to the final product:

Mold CreationThe process usually starts with a wax pattern. This wax pattern is an exact replica of the final part. For ceramic molds, a ceramic shell is built around the wax. Once hardened, the wax is melted and drained out, leaving a hollow mold.
Metal PouringMolten metal is poured into the empty mold cavity. Because the mold captures every detail from the wax, the metal fills in all the complex shapes and fine features.
Cooling and Mold RemovalAfter the metal cools and solidifies, the mold (usually ceramic) is broken away to reveal the raw casting.
FinishingThe casting is cleaned, and any excess metal or imperfections are removed. Due to mold accuracy, this step is often minimal.

Why Mold Accuracy Matters

Accuracy in these molds is critical. Even tiny deviations can affect the fit and function of parts used in aerospace, automotive, or medical fields. Precision molds ensure:

cURL Too many subrequests.: The molds can capture intricate designs, thin walls, and complex geometries that are hard to achieve with other methods.
Tight Tolerances: Parts come out very close to the final specifications, reducing the need for extra machining.

In , precision casting molds play a vital role in delivering parts that meet exact design needs, saving time and cost during production.

Advantages of Using Precision Casting Molds

Precision casting molds offer several key benefits that make them a smart choice for manufacturers in the U.S. market.

High Dimensional Accuracy and Surface FinishThese molds deliver parts with tight tolerances and smooth surfaces straight from the mold, reducing the need for extra finishing work.
Ability to Produce Complex and Intricate DesignsPrecision casting allows for detailed shapes and fine features that other molding methods struggle with, opening the door to innovative product designs.
Reduction in Machining and Finishing TimeSince parts come out closer to final specs, you spend less on machining, saving time and cutting down production costs.
Cost-Effectiveness for Small to Medium Production RunsUnlike traditional casting methods that require expensive tooling, precision molds are economical for runs that don’t need mass production but still demand quality.
Enhanced Material Properties Through Precision CastingThe process improves the structural integrity and performance of materials, resulting in stronger, more reliable parts for industries like aerospace and medical devices.

Using precision casting molds blends quality, design freedom, and efficiency—ideal for businesses looking to stay competitive without sacrificing standards.

Applications of Precision Casting Molds

Precision casting molds are used across many industries thanks to their ability to produce complex parts with tight tolerances. Here are the key applications where these molds truly shine:

Aerospace industry: Parts like turbine blades, engine components, and structural parts require extreme accuracy and durability, making precision casting molds ideal.
Automotive components: Engine parts, transmission pieces, and custom metal parts benefit from precise molds that reduce machining needs and improve performance.
Medical devices and implants: From surgical instruments to implants, the fine detail and biocompatibility possible with precision casting molds are critical.
Consumer electronicscURL Too many subrequests.
cURL Too many subrequests.cURL Too many subrequests.

cURL Too many subrequests.

MaterialcURL Too many subrequests.
ComplexitycURL Too many subrequests.
Production VolumecURL Too many subrequests.

cURL Too many subrequests.

cURL Too many subrequests.
cURL Too many subrequests.
cURL Too many subrequests.

cURL Too many subrequests.

cURL Too many subrequests. cURL Too many subrequests.:

Regular cleaningcURL Too many subrequests.
Temperature controlcURL Too many subrequests.
cURL Too many subrequests.: Frequently check for cracks, surface damage, or deformation.
Lubrication: Use appropriate mold release agents to protect the mold surface during casting.

Signs your precision casting mold needs replacement include:

Visible cracks or chips in the mold material
Loss of dimensional accuracy or surface defects in cast parts
Frequent sticking of wax or ceramic layers
Increased cycle times due to mold damage slowing the process

At Vast, we focus on mold durability by using high-quality materials and precision manufacturing techniques. We also provide ongoing support, including condition monitoring and timely repairs, helping you get the most out of your molds. This approach minimizes downtime and keeps your production running smoothly.

Innovations and Trends in Precision Casting Molds

The precision casting mold industry is evolving fast, thanks to new materials and smart designs. Advanced materials and coatings are making molds tougher and longer-lasting, improving the finish and accuracy of cast parts. These improvements reduce wear and help maintain tight tolerances even after many uses.

3D printing and digital design are game-changers in how precision casting molds are made. These technologies speed up mold creation, allow for more complex shapes, and offer quick adjustments to designs. This digital approach cuts down lead times and reduces production costs, especially for custom or small-batch jobs.

Environmental concerns are shaping how molds are designed and manufactured. More sustainable materials and energy-efficient processes are being integrated to reduce waste and emissions. Recycling of wax and ceramic materials used in molds is becoming more common, supporting greener casting methods.

At Vast, we stay ahead by continuously investing in new technologies and sustainable practices. Our innovation efforts focus on enhancing mold durability, optimizing design precision, and reducing environmental impact—helping U.S. businesses get the best out of precision casting molds while keeping sustainability in mind.

Why Choose Vast for Your Precision Casting Mold Needs

When it comes to precision casting molds, Vast stands out with proven expertise and years of hands-on experience. We understand the importance of accuracy and quality in every mold we create, ensuring your project meets the highest standards from start to finish.

Our Strengths

Expertise: Decades specializing in precision casting molds for industries across the U.S., including aerospace, automotive, and medical.
Quality Assurance: All molds undergo strict inspections and meet industry certifications for reliability and performance.
cURL Too many subrequests. Tailored mold designs based on your material, complexity, and production volume needs.
Support: Ongoing technical support and maintenance advice to maximize mold longevity.
