The Fundamentals of Shell Molding What It Is and Why It Matters

Shell molding is a precise casting process that uses resin-coated sand to create thin, hard shells as molds. This method combines the accuracy of metal pattern molding with the versatility of sand casting, making it a popular choice for high-quality metal parts.

The process began in Germany with Johannes Croning’s innovation in the 1940s. Croning developed a way to coat fine sand with a thermosetting resin, then partially cure it on heated metal patterns. Since then, shell molding has evolved into highly automated systems, improving consistency and efficiency in factories across the globe.

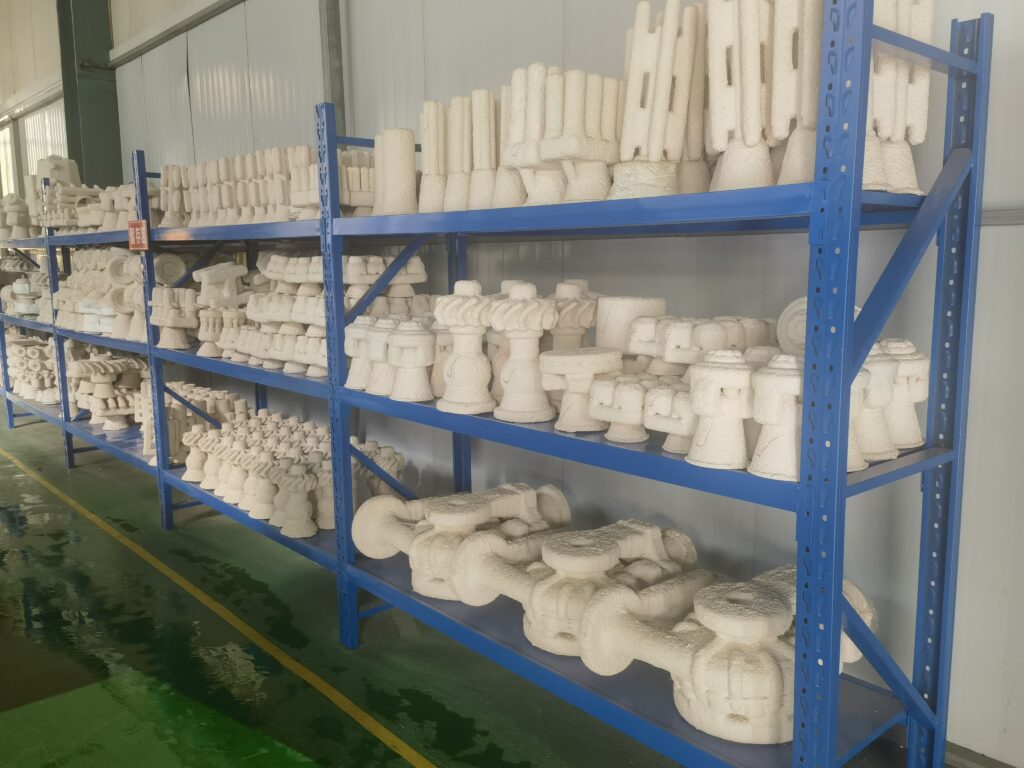

At its core, shell molding relies on fine silica sand mixed with phenolic resin binders. When the resin-coated sand contacts a heated metal pattern, it hardens into a thin, rigid shell—typically 3 to 6 millimeters thick. This shell offers superior mold integrity compared to loose sand molds, which tend to shift or collapse. The thin shell also ensures excellent dimensional accuracy and surface finish for cast parts.

Shell molding works with a wide range of metals, including ferrous metals like cast iron and steel, as well as non-ferrous alloys such as aluminum and copper. The process supports complex shapes and thin walls without sacrificing strength or detail.

Today, shell molding plays an important role in reducing post-casting machining. Its precision casting limits the need for costly secondary operations, aligning well with sustainable manufacturing trends. The process minimizes material waste and energy consumption, making it a smart choice for environmentally conscious foundries serving the U.S. market and beyond.

Step-by-Step Guide to the Shell Molding Process

Here’s a straightforward look at how shell molding works, step by step.

Step 1 Pattern creation

We start by machining reusable metal patterns, typically from iron or steel. These patterns come in two halves that define the exact shape of the part you want to cast.

Step 2 Sand-resin preparation and heating

Next, fine silica sand is mixed with a thermosetting phenolic resin. The metal patterns are heated to between 175°C and 370°C (about 350°F to 700°F) to prepare for shell formation.

Step 3 Shell formation

The heated pattern is inverted into a dump box containing the resin-coated sand. The sand sticks to the hot surface and partially cures through heat transfer, forming a thin, rigid shell about 3 to 6 millimeters thick.

Step 4 Curing and ejection

The formed shells are then fully cured in an oven, strengthening them to tensile strengths around 350 to 450 psi. After curing, the shells are carefully removed from the patterns.

Step 5 Mold assembly

The two shell halves—called cope and drag—are clamped together. If the part design requires, cores are inserted to create internal cavities. The assembled mold is backed with shot sand for extra support during casting.

Step 6 Pouring cooling and extraction

Molten metal, heated up to 1450°C (about 2640°F), is poured into the mold. Once the metal solidifies, the shell mold is broken apart, and the casting is cleaned and trimmed, ready for the next steps.

This precise process helps deliver consistent, high-quality castings with excellent surface finish and dimensional accuracy.

Advantages of Shell Molding Elevating Precision and Efficiency

Shell molding stands out for its superior surface finish, typically reaching Ra values between 3.2 and 6.3 μm. This smoothness significantly cuts down the need for secondary machining, saving time and costs. The process also delivers dimensional accuracy within ±0.1 to 0.5mm, which means parts fit better right out of the mold.

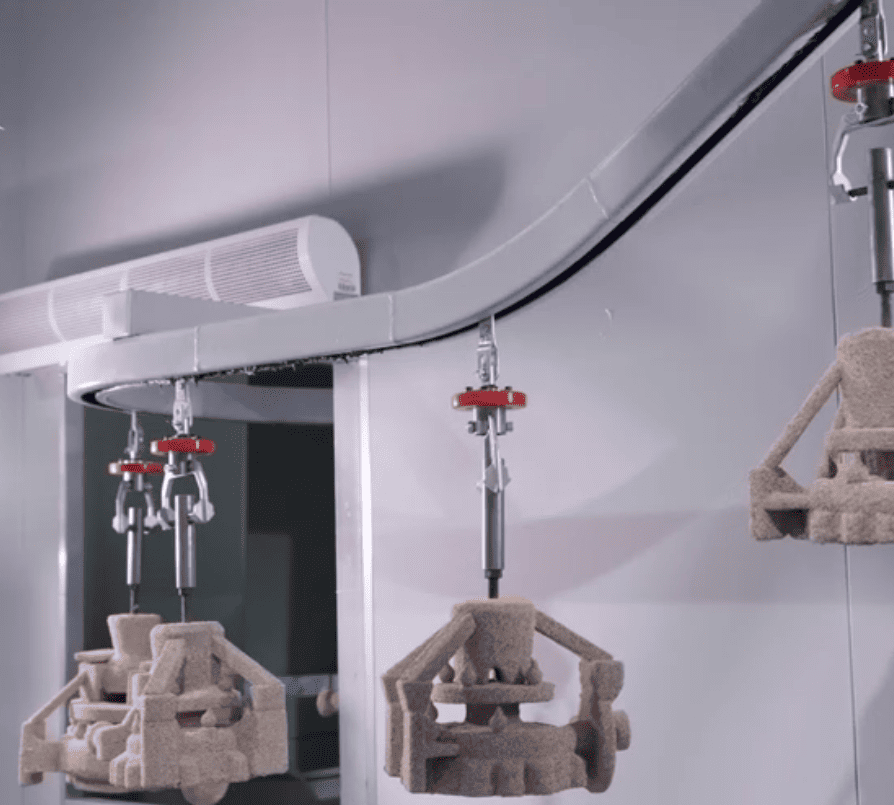

When it comes to production, shell molding excels in medium-volume runs from 100 up to 10,000 units, offering high productivity thanks to automation that reduces labor demands. This makes it ideal for manufacturers looking to balance volume and cost-effectiveness.

The method’s design flexibility is another big plus. It can handle complex shapes, thin walls, and fine details without common defects seen in other casting processes. Whether it’s intricate consumer parts or tough automotive components, shell molding can deliver.

On the cost side, reusable metal patterns and minimal scrap material mean lower waste and shorter lead times—often just days instead of weeks. This efficiency helps manufacturers in the U.S. keep up with fast market demands.

Lastly, shell molding is more sustainable than traditional green sand casting. It uses less sand waste and consumes less energy, aligning well with modern environmentally conscious manufacturing trends.

By combining precision, speed, flexibility, and eco-friendliness, shell molding remains a solid choice for many industries in the U.S. looking for reliable and efficient casting methods.

Disadvantages and Limitations When Shell Molding Isn’t Ideal

Shell molding isn’t always the perfect choice. One big drawback is the high upfront cost. Resin-coated patterns and the specialized equipment can easily run $50,000 or more just to set up. This can be tough for smaller shops or one-off projects.

Porosity is another concern. Gas can get trapped inside the mold, causing tiny holes in the cast part. This problem is more noticeable with larger, heavier parts over 200 pounds, where shell molding struggles to maintain integrity.

Material-wise, shell molding works best for small to medium-sized pieces. Large parts risk resin peeling or thermal cracks because the thin shell can’t handle extreme heat or stress. So, it’s less suitable for big, heavy-duty components.

To get around these limits, many use hybrid approaches—mixing shell molding with other casting methods to balance cost and quality. Also, vast applies strict quality controls to catch and fix common issues early, keeping defects and rework to a minimum.

Shell Molding vs Other Casting Methods A Head-to-Head Comparison

When comparing shell molding to other common casting methods, it’s clear each has its strengths and ideal uses depending on the project needs.

Vs Sand Casting

• Shell Molding
  • Provides a smoother surface finish and better dimensional accuracy (±0.1-0.5mm)
  • Minimal machining required after casting
  • Higher material and setup costs due to resin-coated sand
• Sand Casting
  • Uses loose sand, making it less expensive and quicker for prototypes or low volumes
  • Surface finish is rougher, so more post-casting work needed
  • More wasteful and less consistent in accuracy

Feature	Shell Molding	Sand Casting
Surface Finish	Smooth (Ra 3.2-6.3 µm)	Rough
Dimensional Accuracy	High (±0.1-0.5 mm)	Moderate
Cost	Higher	Lower
Ideal Volume	Medium runs (100-10,000)	Short runs, prototypes

Vs Investment Casting

• Shell Molding
  • Faster and more cost-effective for medium volume runs
  • Handles a variety of alloys well
• Investment Casting
  • Best for ultra-fine details and complex shapes
  • More expensive and time-consuming, especially for larger parts

Vs Die Casting

• Shell Molding
  • More flexible with different metal alloys
  • Does not require the high-pressure machinery die casting needs
  • Better for small to medium runs and less pressure-sensitive metals
• Die Casting
  • Ideal for high-volume production with very tight tolerances
  • Usually limited to metals with low melting points like aluminum, zinc

How to Choose the Right Casting Method

Consider these key points when deciding which process fits your project best:

• Volume:
  • Small batch or prototypes → Sand or investment casting
  • Medium batches → Shell molding strikes a strong balance
  • Large high-volume → Die casting may be more cost-effective
• Detail & Finish:
  • Need extreme detail → Investment casting
  • Good finish with less machining → Shell molding
  • Less concern about finish → Sand casting
• Budget:
  • Limited budget → Sand casting
  • Moderate budget with better quality → Shell molding
  • Higher budget for complex precision → Investment or die casting

Using this framework helps align your project goals with the best casting method, balancing cost, quality, and production needs.

Real-World Applications and Case Studies with vast

Shell molding plays a key role in making parts that demand high precision and durability. In the automotive industry, it’s used to produce gears, cylinder heads, and connecting rods that stand up to tough conditions. These components benefit from shell mold casting because of the process’s superior surface finish and tight dimensional accuracy.

In aerospace, shell molding helps create parts like lever arms and valve bodies. These need to be strong and reliable under constant stress, which resin sand molding and the Croning process can deliver consistently. Precision metal casting with shell molding means fewer defects and longer-lasting parts.

For consumer goods, shell molding is perfect for hardware fittings and pump components that require detailed shapes and consistent quality, making it an ideal choice for custom factory runs.

vast Spotlight Case Study

At vast, we put shell molding to work producing 5,000 custom aluminum gears. By switching to this method, we cut defects by 40% and reduced lead times by 25%. Using reusable metal patterns and automated shell formation helped us scale production efficiently, meeting the high expectations of our customers while keeping costs down.

Future Trends in Shell Molding

Looking ahead, the shell molding process is evolving with the integration of 3D printing. This hybrid approach combines the flexibility of 3D-printed patterns with the strength and precision of resin-coated sand molds. It offers even faster turnaround times and opens doors for more complex designs. For US factories focused on custom and mid-volume runs, this means better quality parts delivered faster with less waste.
