Why Heat Treat Aluminium? Key Benefits and Metallurgical Principles

At Vastmaterial, we view aluminium heat treating as more than just a finishing step—it is a metallurgical transformation essential for structural integrity. Raw aluminum castings, particularly in the “As-Cast” (F) condition, often lack the mechanical strength required for mission-critical applications. By applying precise thermal cycles, we bridge the gap between complex geometry and high-performance durability.

The Role of Precipitation Hardening Aluminum

The core mechanism behind strengthening alloys like A356 (AlSi7Mg) is precipitation hardening aluminum. This process involves dissolving alloying elements (like magnesium and silicon) into a solid solution and then trapping them there through rapid cooling. Subsequent aging forces these elements to precipitate out in a controlled manner, reinforcing the metal’s matrix. This turns a relatively soft casting into a component capable of withstanding significant load and fatigue.

Mechanical Properties: The T6 Transformation

The difference between an untreated part and one that has undergone T6 temper aluminum processing is massive. In our foundry, we see ductility and strength skyrocket after the full solution heat treatment, quenching, and artificial aging cycle.

Here is the typical performance leap we achieve with our standard A356-T6 processing:

Property	Metric Value	Imperial Value	Benefit
Tensile Strength	~234 MPa	~34 ksi	Handles higher loads without breaking
Yield Strength	~165 MPa	~24 ksi	Resists permanent deformation
Hardness	75–90 HB	–	Improved wear resistance
Elongation	~3.5%	–	Better ductility compared to raw casting

Advantages and Challenges Addressed

Choosing the right aluminum heat treat process unlocks specific advantages that raw materials cannot match:

• Improved Fatigue Resistance: Essential for automotive suspension parts and aerospace brackets that face cyclic loading.
• Corrosion Performance: Proper thermal treatment stabilizes the microstructure, reducing susceptibility to environmental degradation.
• Structural Suitability: Converts standard alloys into materials ready for safety-related applications.

However, heat treating introduces its own set of challenges, such as internal stresses and potential warpage during the rapid quenching phase. We mitigate these risks through strict material control—keeping iron content below 0.20% in our A356 alloy—and optimized gating designs. This integrated approach ensures that the final component retains its dimensional accuracy while achieving maximum mechanical properties.

Heat-Treatable vs. Non-Heat-Treatable Aluminium Alloys

Not every piece of aluminum benefits from the furnace. The ability to strengthen a part through thermal processing depends entirely on its chemical composition. In our industry, distinguishing between heat-treatable aluminum alloys and those that only harden through cold working (strain hardening) is the first step in material selection. If you apply high heat to the wrong alloy, you aren’t strengthening it—you are likely annealing (softening) it.

Breakdown of Alloy Series

To get the structural gains we look for in precision manufacturing, the alloy must contain specific elements—like copper, magnesium, zinc, or silicon—that allow for precipitation hardening.

• Heat-Treatable Series:
  • 2xxx Series (Copper): Known for high strength and fatigue resistance (e.g., 2026).
  • 6xxx Series (Magnesium & Silicon): The versatile standard for structural components and machining (e.g., 6061).
  • 7xxx Series (Zinc): Delivers the highest strength, critical for aerospace airframes (e.g., 7075).
  • 3xx.0 Casting Series: This is our primary domain. Casting alloys like A356 (AlSi7Mg) rely on thermal processing to transform from a soft cast state to a durable, industrial-grade component.
• Non-Heat-Treatable Series:
  • 3xxx (Manganese) & 5xxx (Magnesium): Common grades like 3003 or 5052 gain strength only through physical deformation (rolling or forming). They offer excellent corrosion resistance but cannot achieve the high tensile yield strengths of heat-treated grades.

Criteria for High-Strength Applications

Choosing the right category comes down to the mechanical demands of the final part. If the component must withstand high loads, vibration, or requires complex machining without material “gumminess,” a heat-treatable alloy is non-negotiable.

For example, we specifically utilize A356-T6 aluminum alloy specifications for mission-critical castings. The T6 process (solution heat treat + artificial age) nearly doubles the yield strength compared to the as-cast condition, making it suitable for automotive suspension and aerospace brackets. Conversely, if the project involves simple sheet metal forming where ductility is the priority over raw strength, a non-heat-treatable 5xxx series is the better engineering choice.

Comparison of Common Industrial Alloys

Alloy Type	Common Grades	Strengthening Mechanism	Typical Application
Heat-Treatable	6061, 7075, A356	Precipitation Hardening (T4, T6)	Structural brackets, engine components, high-stress fittings
Non-Heat-Treatable	3003, 5052	Strain Hardening (H tempers)	Fuel tanks, architectural paneling, sheet metal work

The Aluminium Heat Treating Process Step by Step

Achieving the structural “gold standard” in aluminum components isn’t magic; it is a precise sequence of thermal events. At Vastmaterial, we treat aluminium heat treating as a critical manufacturing phase, not just an afterthought. Whether we are processing complex A356 castings or wrought alloys, the goal is always to manipulate the microstructure to balance strength, ductility, and machinability.

Solution Heat Treatment

The first step in the T6 process is solution heat treatment. We heat the aluminum alloy to a specific temperature—typically just below the melting point of the eutectic phase (around 1000°F or 540°C for many alloys)—and hold it there. This “soak” time allows soluble alloying elements like magnesium and silicon to dissolve into the aluminum matrix, creating a uniform solid solution.

Precision is non-negotiable here. If the temperature is too low, the elements won’t dissolve; too high, and we risk melting grain boundaries (incipient melting), which destroys the part. We maintain strict furnace uniformity to ensure every casting in the batch reaches the exact target temperature.

Quenching and Distortion Control

Once the elements are in solution, we have to “freeze” them in place. This is done through quenching, where the parts are rapidly cooled, usually in water, polymer glycol, or forced air. The cooling rate is critical:

• Too slow: Precipitates form early and unevenly, reducing final strength.
• Too fast: Excessive thermal shock can cause warpage or residual stress.

We utilize specific aluminum quenching methods tailored to the part’s geometry. For intricate castings with thin walls, we may use polymer quenchants or controlled water temperatures to mitigate shock. This focus on aluminum distortion control ensures that the part maintains its near-net shape, reducing the need for excessive straightening later.

Ageing: Precipitation Hardening Aluminum

After quenching, the aluminum is in an unstable, supersaturated state (often called the ‘W’ condition). To gain strength, it must undergo precipitation hardening aluminum processes, also known as aging:

• Natural Aging (T4): The alloy sits at room temperature. This stabilizes the material and improves ductility but doesn’t maximize tensile strength.
• Artificial Aging (T6): We reheat the parts to a lower temperature (typically 300°F–400°F) for a set period. This accelerates the formation of strengthening precipitates (like Mg2Si in A356).

This controlled artificial aging aluminum cycle is what gives A356-T6 its renowned mechanical properties, jumping yield strength from ~15 ksi (as-cast) to ~24+ ksi. Once the heat treatment is complete, the material is often ready for final shaping via our CNC turning services, where the enhanced hardness ensures precise chip formation and dimensional stability.

Special Processes: Stress Relief and Annealing

Beyond standard T6 cycles, we also employ specialized thermal treatments depending on the application:

• Annealing (O Temper): Heating and slow cooling to soften the alloy, making it easier to cold work or form.
• Stress Relieving: Heating to a moderate temperature to reduce internal residual stresses caused by casting or machining, preventing movement during service.

By integrating these steps in-house, we maintain full traceability from the melt to the final temper, ensuring that every bracket, housing, and structural node meets the rigorous demands of US industries.

Understanding Aluminium Temper Designations

When we engineer components at Vastmaterial, the alloy grade is only half the story. The real performance comes from the temper. In aluminium heat treating, the temper designation (the code following the alloy number, like -T6) defines the specific thermal history and mechanical properties of the finished part. Getting this code right is the difference between a part that bends and a part that snaps under load.

Decoding the ‘T’ Series

For heat-treatable alloys, the ‘T’ series indicates that the material has been thermally treated to produce stable tempers. While there are designations from T1 to T10, we focus primarily on the ones that deliver maximum structural integrity for industrial applications.

• T1 (Cooled & Naturally Aged): The metal is cooled from an elevated temperature shaping process and naturally aged. It’s a basic state with lower stability.
• T4 (Solution Heat Treated & Naturally Aged): We heat the part to dissolve soluble constituents, quench it, and let it age at room temperature. This results in high ductility and toughness, making it easier to form.
• T5 (Cooled & Artificially Aged): Cooled from the shaping process then artificially aged at elevated temperatures. Common in extrusions but less controlled than T6.
• T6 (Solution Heat Treated & Artificially Aged): This is the industry standard for high-strength castings like A356. We solution treat, quench, and then furnace-age the parts to precipitate hardening phases. This maximizes yield strength and hardness.
• T651 (Stress Relieved): Similar to T6 but includes a stretching or compressing step to relieve internal stresses, ensuring the material doesn’t warp during machining.

T4 vs. T6: Strength vs. Ductility

The choice between T4 and T6 temper aluminum usually comes down to whether you need the part to deform slightly (ductility) or hold its shape rigidly (strength). In our foundry, the A356 T6 properties are the gold standard for mission-critical components, offering a superior balance of tensile strength and hardness compared to the naturally aged T4 state.

Comparative Mechanical Properties (Typical)

Alloy & Temper	Tensile Strength	Yield Strength	Elongation	Application Focus
A356-T6	~34 ksi (234 MPa)	~24 ksi (165 MPa)	3.5%	Structural castings, automotive, aerospace
6061-T6	~45 ksi (310 MPa)	~40 ksi (276 MPa)	12%	Structural framing, machined parts
7075-T6	~83 ksi (572 MPa)	~73 ksi (503 MPa)	11%	High-stress aircraft structures
6061-T4	~35 ksi (241 MPa)	~21 ksi (145 MPa)	22%	Parts requiring forming/bending

Brief Overview of ‘H’ Tempers

While our focus is often on heat-treatable casting alloys, it is important to distinguish them from non-heat-treatable alloys (like the 3xxx or 5xxx series). These use ‘H’ designations (e.g., H14, H32), meaning they gain strength solely through strain hardening (cold working), not thermal cycles. However, for applications requiring extreme thermal stability beyond standard aluminum capabilities, engineers might look toward a high-temperature alloy which relies on entirely different strengthening mechanisms. For aluminum structural parts, however, the T-series heat treatment remains the primary method for achieving design specifications.

Equipment and Quality Standards in Modern Heat Treating

To achieve structural integrity in components like A356 aerospace brackets, you need more than just a hot oven. The aluminum heat treatment process relies heavily on specialized equipment designed to execute precise thermal cycles without compromising the part’s geometry.

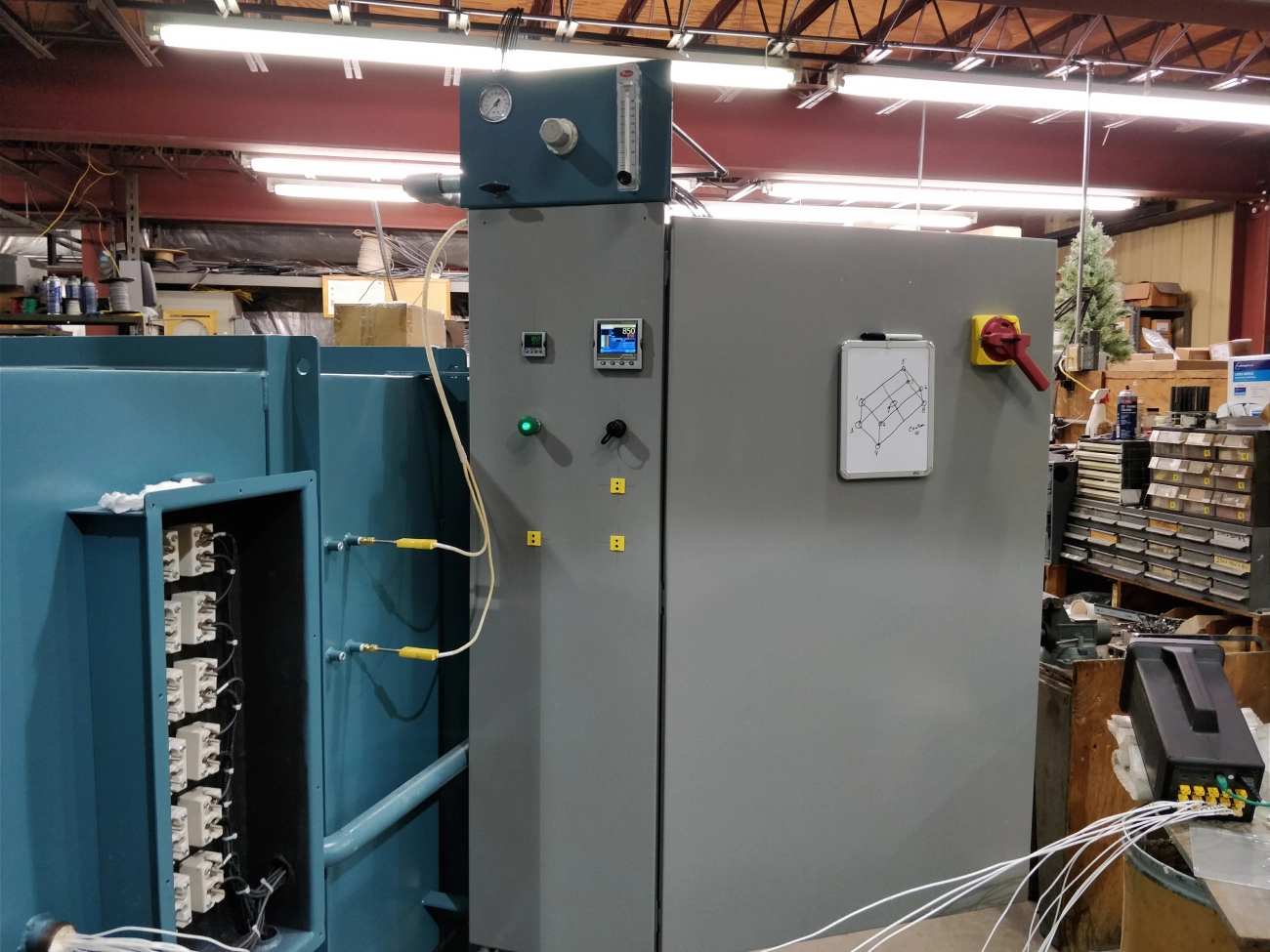

Advanced Furnace Technology

We utilize specific furnace types tailored to the alloy and the required temper.

• Drop Bottom Furnaces: These are the industry standard for solution heat treating high-strength alloys. The design allows the load to drop directly into the quench tank in under 10 seconds. This rapid transfer is critical to prevent the alloying elements from precipitating too early.
• Atmosphere-Controlled & Vacuum Systems: For parts requiring pristine surface finishes, vacuum heat treating aluminum prevents oxidation. This is essential for precision components where dimensional tolerance is tight, and post-process machining must be minimized.

Industry Certifications and Compliance

In sectors like aerospace and defense, “good enough” doesn’t fly. Adherence to AMS2770 standards (Pyrometry and Heat Treatment of Aluminum Alloys) is the baseline for ensuring safety and performance. While NADCAP aluminum heat treating accreditation is often a specific requirement for tier-1 aerospace suppliers, the underlying principle is universal: strict process control.

We maintain rigorous documentation and full traceability for every batch. By integrating comprehensive testing and quality assurance protocols, we verify that every heat cycle meets the specific mechanical property targets.

Precision Control for Repeatability

The difference between a cracked part and a high-performance component often comes down to temperature uniformity. Modern systems use PLC controls to maintain furnace temperatures within tight tolerances (often ±5°F). This precision ensures that aluminum distortion control is managed effectively during the quench phase, reducing scrap rates and ensuring that every casting—from the first to the thousandth—performs exactly as engineered.

Industry Applications of Heat-Treated Aluminium

We see the impact of proper thermal processing across every sector we serve. By altering the microstructure of the metal, aluminium heat treating transforms standard castings into high-performance components capable of withstanding extreme operational loads.

Aerospace and Defense

In aerospace, the strength-to-weight ratio is the primary metric. We utilize T6 and T7 tempers to ensure flight-critical parts, such as avionics housings and structural brackets, meet rigorous AMS specifications. Our precision aluminum investment castings rely heavily on solution heat treatment to homogenize the alloy, eliminating segregation that could lead to catastrophic failure under G-force stress.

Automotive Performance

The automotive industry demands durability without the weight penalty of steel. We frequently process A356 alloy for suspension knuckles, control arms, and engine mounts. Through a precise T6 heat treatment cycle, we boost the mechanical properties significantly, ensuring these safety-critical parts can handle constant road vibration and impact.

Marine and Energy

For marine and energy sectors, corrosion resistance is just as vital as strength. Improperly treated aluminum is prone to stress-corrosion cracking in saltwater environments. Our heat treat cycles are calibrated to stabilize the grain structure, providing long-term reliability for pump housings and valve bodies used in offshore drilling or power generation.

Case Study: Optimizing A356-T6 Castings

The difference between an “As-Cast” (F) part and a fully treated T6 part is night and day. For a recent heavy-duty suspension project, we utilized specific high-performance aluminum casting alloy grades like A356 (AlSi7Mg).

Performance gains achieved through our in-house T6 process:

• Tensile Strength: Increased to ~34 ksi (234 MPa).
• Yield Strength: Boosted to ~24 ksi (165 MPa).
• Hardness: Stabilized between 75–90 HB.
• Ductility: Maintained elongation around 3.5%, preventing brittle fracture.

This transformation allows the component to act as a structural member, a feat impossible in its raw cast state.

Choosing a Reliable Aluminium Heat Treating Partner

Finding the right partner for aluminium heat treating is about more than just locating a facility with a furnace; it is about securing the structural integrity of your entire supply chain. Relying on a fragmented process—where a foundry ships raw castings to a third-party heat treater, who then ships them to a machine shop—introduces unnecessary risks, delays, and logistical costs. At Vastmaterial, we eliminate these variables by offering a vertically integrated manufacturing solution that combines precision casting, thermal processing, and machining under one roof.

Key Factors for Evaluating a Partner:

• Integrated In-House Capabilities: We perform solution heat treatment, quenching, and artificial aging (T6) directly adjacent to our casting lines. This integration avoids external markups and prevents the “double handling” that often leads to part damage or lost traceability.
• Specific Alloy Expertise: Generic heat treaters may not optimize for specific chemical compositions. We specialize in A356 (AlSi7Mg), strictly controlling iron content below 0.20% to maximize ductility and fatigue resistance during the T6 cycle.
• End-to-End Manufacturing Support: From the initial melt to final aluminum alloy rims machining services, we maintain control over the entire lifecycle of the part. This ensures that the mechanical properties achieved during heat treatment are preserved during precision CNC operations.

By consolidating these critical steps, we provide full traceability where every component is tied to a specific heat number. This streamlined approach allows us to deliver near-net-shape components with verified mechanical properties, reducing total part costs by 10–30% and significantly cutting lead times for high-performance applications.

Frequently Asked Questions About Aluminium Heat Treating

What is T6 heat treatment for aluminium?

T6 temper aluminum is the gold standard for achieving maximum structural strength in alloys like A356. It involves a precise three-step cycle:

1. Solution Heat Treatment: Heating the casting to dissolve alloying elements.
2. Quenching: Rapid cooling to freeze the microstructure.
3. Artificial Aging: Reheating at a lower temperature to precipitate hardening phases.

At our facility, this process transforms standard castings into high-performance parts, boosting the tensile strength of A356 to approximately 34 ksi (234 MPa).

Which aluminium alloys can be heat treated?

Not every grade responds to thermal processing. The process is effective on specific heat treatable aluminum alloys, primarily in the 2xxx, 6xxx, and 7xxx wrought series, as well as specific casting alloys.

In the foundry sector, we specialize in the A356 aluminum alloy, which is chemically designed (AlSi7Mg) to respond perfectly to T6 treatment. Non-heat-treatable alloys like the 3xxx or 5xxx series rely solely on work hardening and cannot achieve the same strength gains through thermal cycles.

How does quenching affect aluminium parts?

Aluminum quenching methods are the critical “freeze” point in the process. After solution heating, the part must be cooled rapidly—usually in water or polymer glycol—to lock the alloying elements in a supersaturated solution.

• Correct Quenching: Ensures the material is ready for age hardening.
• Delayed Quenching: Results in poor mechanical properties and potential corrosion issues.

We strictly control quench delay times to prevent the alloy from precipitating too early, ensuring the final A356 T6 properties meet rigorous standards.

What certifications should a heat treating provider have?

Reliability comes down to process control and traceability. While specific aerospace certifications (like NADCAP) are standard for flight parts, any reputable provider must offer full traceability. We ensure every component is tied to a specific heat number, documenting the entire journey from raw melt chemistry to the final thermal cycle. This transparency guarantees that the mechanical values we promise are the values you actually get.

Can cast aluminium be heat treated to T6?

Absolutely. In fact, heat treating is what allows cast parts to bridge the gap with wrought components. When you look at A356 vs 6061 comparisons, you see that cast A356-T6 offers excellent ductility and strength. We routinely process investment and sand castings to T6 to achieve a hardness of 75–90 HB, making them suitable for high-stress automotive and industrial applications.
