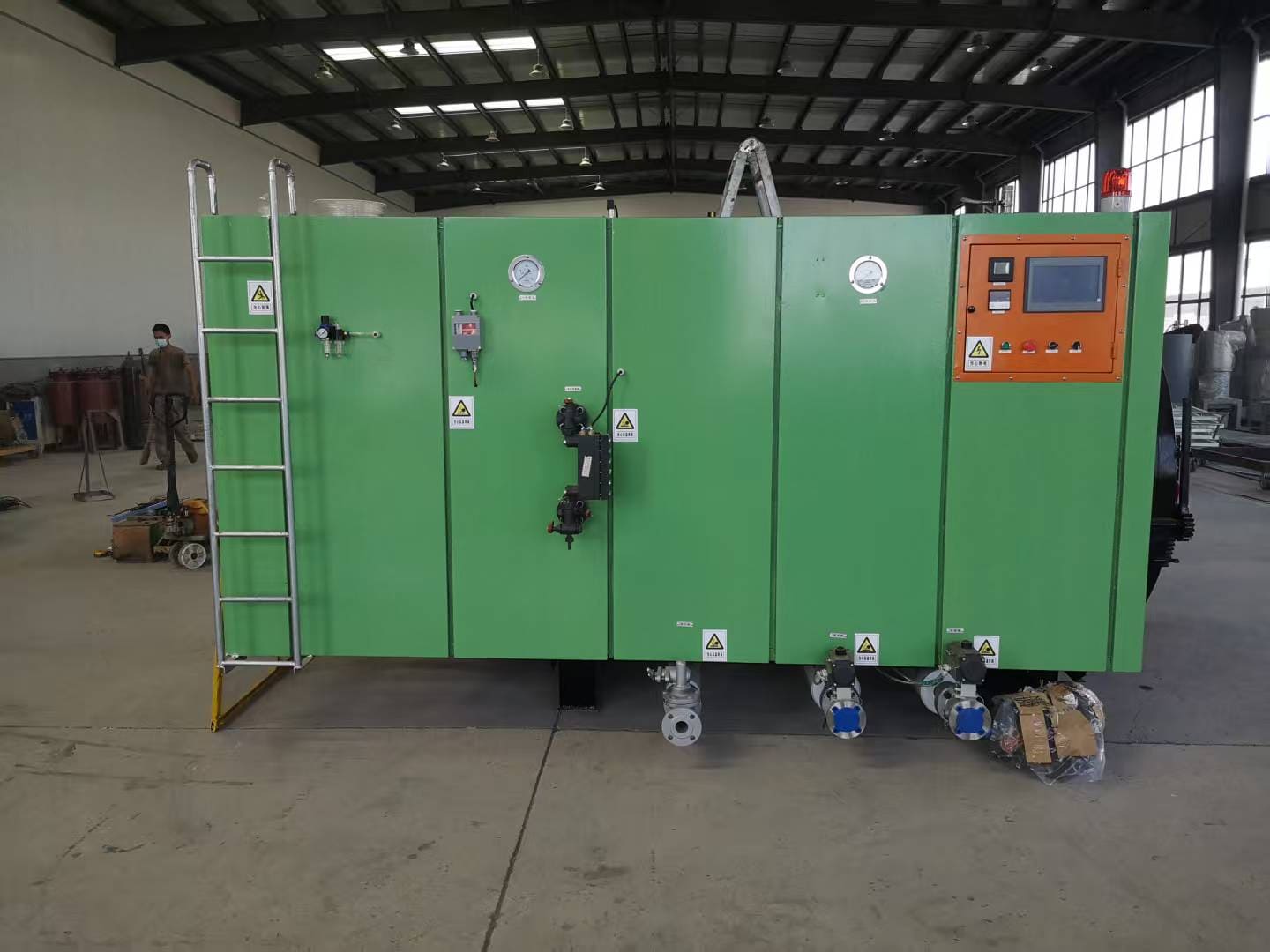

Automatic de-waxing kettle
High-Pressure Automatic
De-waxing Kettle |Safety & Precision Engineering
The automatic de-waxing kettle is a critical component in the investment casting process, engineered for high-pressure steam de-waxing with an emphasis on operator safety and thermal efficiency.
Vast’s de-waxing systems are designed to deliver consistent mold quality while minimizing cycle times through advanced automation and multi-layered safety protocols.
Advanced Safety & Operation Features
Our de-waxing kettle integrates high-pressure engineering with intelligent safety systems to ensure a secure manufacturing environment:
-
Double-Layer High-Pressure Door: Designed for rapid opening/closing without compromising structural integrity.
-
Integrated Safety Lock System: A mechanical and pressure-sensing interlock prevents the door from opening while the chamber is pressurized, providing dual protection for operators.
-
Automated Cycle Management: Equipped with an automatic timing system featuring both visual (light) and audible (sound) alarms to signal process completion.
Precision Controls & Damage Prevention
To ensure the longevity of the equipment and the precision of the wax removal, the system includes:
-
Electrical Pressure Monitoring: A high-accuracy gauge allows for precise pressure calibration tailored to complex wax patterns.
-
Secondary Thermal Safeguard: An emergency cut-off system that automatically kills power if temperatures exceed predefined safety limits.
-
Dual-Color Liquid Level Controller: Manages water supply automatically. It features a low-water cut-off to prevent dry-firing and heater damage, ensuring continuous operation.
Optimized Workflow & Handling
We provide a complete de-waxing station setup to streamline your production line:
-
Efficient Mold Handling: Every unit comes equipped with two specialized trolleys and two handcarts, custom-designed for the seamless transport of heavy wax molds and shells.
-
Heavy-Duty Construction: Built to withstand the rigorous demands of 24/7 industrial casting environments.
Key Features & Advantages
Safe & Reliable Operation
Double-layer high-pressure door with dual safety lock ensures secure use under all conditions
Accurate Control System
Electrical pressure gauge and dual temperature protection guarantee precise and stable de-waxing.
Automated Alarms & Timing
Light and sound alarms with timer function provide clear signals when the process is complete.
Automated Alarms & Timing
Equipped with two special trolleys and handcarts for easy and efficient mold shell transfer.
Technical Parameters – X1200 Automatic De-waxing Kettle
| Item | Specification |
|---|---|
| Model | KWTL-1200-Z |
| Power Supply | 380V + 220V / 50Hz |
| Power | 147 kW |
| System Pressure | 0.8 MPa |
| Working Pressure | 0.7–0.8 MPa |
| Operating Temperature | 180 ℃ |
| Inner Casing Size | 1200 × 1400 mm |
| Material Basket Dimensions | 1400 × 1030 × 200 mm |
| Cold Furnace Heating Time | 80–100 min |
| Single Wax Removal Time | 8–20 min |
| Overall Dimensions | 3800 × 2200 × 2100 mm |
| Weight | 4000 kg |
Key Features & Advantages
Factory Planning
Professional consulting and early-stage research for precision casting plant setup.
Equipment & Materials
Supply of casting equipment, auxiliary devices, and high-quality raw materials.
Technical Support
Comprehensive process guidance and on-site technical services.
Molds & Tooling
Customized molds, fixtures, and tooling solutions to ensure production efficiency.
Product Services
End-to-end casting product support, from sample development to mass production
REQUEST FOR QUOTE
“We have been sourcing precision machined components from Vast-Cast for over two years. Their machining accuracy, consistent quality, and on-time delivery have significantly reduced our production downtime. The engineering team is responsive and always provides practical solutions.”
