The Fundamentals of Engineering Fits Key Concepts and Terminology

Ever wondered how two parts perfectly slide or press together without fuss? That’s where engineering fits come in. At its core, an engineering fit defines how tightly or loosely two mating parts—usually a hole and a shaft—fit together. Understanding the basics starts with allowance and tolerance.

Allowance is the intentional difference between the smallest hole size and largest shaft size—basically, the guaranteed clearance or interference. Tolerance refers to the acceptable variation in size manufacturing allows—no part is perfect, so tolerances ensure parts still fit within limits.

You’ll often see fit designations like H7/g6—a shorthand indicating specific tolerance zones for holes and shafts. For instance, “H7” means the hole has zero or positive allowance with a defined tolerance, while “g6” is a shaft size with a slight negative allowance, perfect for a precise fit.

There are two main fit systems: hole-basis and shaft-basis. The hole-basis system keeps the hole size constant while varying the shaft size, which is popular because machining holes to standard sizes is easier and cheaper. The shaft-basis system does the opposite—holding shaft size fixed but changing hole size. Each has pros and cons depending on production processes and cost.

Engineering fits play a crucial role in GD&T (Geometric Dimensioning and Tolerancing), helping specify allowable variation in part geometry. Plus, they follow globally recognized standards like ISO 286 for metric units and ANSI B4.1 for imperial units, ensuring consistency across designs and suppliers.

To simplify selecting fits, engineers often use tolerance calculator tools. These handy calculators quickly show the maximum and minimum sizes for shafts and holes based on desired fits, saving hours of manual calculations and avoiding costly mistakes.

Getting these fundamentals right helps you design assemblies that function smoothly and last longer—no matter the application.

Types of Engineering Fits Clearance Interference and Transition Explained

When it comes to engineering fits, there are three main types: clearance, interference, and transition fits. Each serves a different purpose depending on how tight or loose the connection needs to be.

Clearance Fits

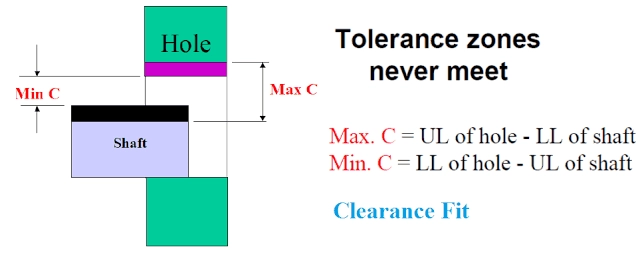

Clearance fits happen when there’s always some space between the shaft and hole, allowing one part to move or slide freely inside the other. These are great for applications where easy assembly and disassembly are needed, like in automotive wheel hubs. Clearance fits come in two main sub-types:

• Sliding fits – allow smooth motion with minimal play, ideal for rotating parts.
• Location fits – provide accurate positioning but still allow some clearance.

Pros: Easy to assemble, less chance of damage due to tightness.
Cons: Can lead to vibration or wear if the clearance is too large.

Interference Fits

Interference fits are the opposite—parts press tightly together with no space, sometimes even requiring force or heat to assemble. This type is common where a strong, lasting joint is needed, like aerospace turbine blades. Sub-types include:

• Light press fits – require moderate force, suitable for parts that might need future disassembly.
• Heavy drive fits – need strong force or heating/cooling and offer a nearly inseparable joint.

Pros: High strength and resistance to movement.
Cons: Harder to assemble and disassemble, risk of material stress.

Transition Fits

Transition fits sit between clearance and interference. Sometimes they have a slight clearance or a small interference, offering a balance of both. These fits are used where precise alignment and moderate load capacity are important—like robotic arms in precision machinery. Sub-types include:

• Push fits – easy to assemble with slight interference, good for parts with occasional disassembly.
• Wrench fits – tighter joints requiring tools to assemble, offering more holding force.

Pros: Good balance of strength and assembly ease, suitable for precision parts.
Cons: Needs careful tolerance control to avoid unwanted looseness or tightness.

Case Study on Transition Fit Benefits

In a precision robotics arm, using a transition fit ensures parts stay firmly aligned during operation but can still be serviced without damaging components. This reduces downtime and improves accuracy over time.

Tolerance Chart Comparison for 25mm Diameter Fits

To quickly see the differences, here’s how fits compare on a 25mm shaft:

Fit Type	Typical Clearance (μm)	Assembly Ease	Typical Use Case
Clearance Fit	+20 to +50	Easy	Automotive wheel hubs
Transition Fit	-5 to +10	Moderate	Precision robotics arms
Interference Fit	-10 to -30	Difficult	Aerospace turbine blades

Understanding these fit types helps pick the right tolerance for your project, ensuring parts work well together without problems.

Standards and Tolerance Charts for Engineering Fits

When working with engineering fits, understanding the key standards is crucial. The ISO 286 system is the go-to for metric fits, while ANSI B4.1 covers imperial (inch-sized) fits commonly used in the U.S. These standards set the rules for allowable limits and fits to ensure parts fit and function properly.

Fit codes like H7/h6 tell you about the tolerances for the hole and shaft. For example, in H7/h6, ‘H7’ refers to a specific hole tolerance zone, and ‘h6’ refers to a shaft tolerance zone. These codes help engineers communicate exactly how tight or loose a fit should be.

Tolerance charts break down limits for common shaft or hole sizes, showing the upper and lower bounds for dimensions. This makes it easy to pick the right fit for your application. For example, a 25mm shaft with an h6 tolerance might have a variation of just a few microns.

Choosing the right fit isn’t just about numbers. You also need to consider:

• Material types (steel, aluminum, plastic) because different materials expand and wear differently
• Operating temperature since parts can swell or shrink under heat
• Wear and maintenance needs for how long the fit must last without loosening or corrosion
• Cost implications because tighter tolerances cost more to machine

To make things easier, many shops and engineers rely on downloadable ISO fit cheat sheets or tolerance calculators online. These references speed up fit selection and help reduce costly mistakes in the U.S. manufacturing environment.

How to Choose the Right Engineering Fit Step by Step

Picking the right engineering fit is crucial to making your parts work smoothly and last longer. Here’s a simple guide to help you make the best choice:

1. Define Functional Needs

• Decide what the part needs to do: Will it rotate? Support heavy loads? Need to move freely or be locked tight?
• This will guide whether you pick clearance, interference, or transition fits.

2. Assess Environment and Materials

• Think about where and how the part will be used.
• Consider temperature changes, vibration, corrosion, or exposure to dirt.
• Factor in material types since different metals and plastics expand or wear differently.

3. Reference Standards and Calculate Tolerances

• Use ISO 286 or ANSI B4.1 tolerance charts to find the right limits for your shaft hole fits.
• Calculate allowances and tolerances to see if the fit meets your performance goals.

4. Prototype and Test with FEA Software

• Before full production, run a prototype to test fit and function.
• Use Finite Element Analysis (FEA) tools to simulate stress, thermal expansion, and assembly issues.

5. Watch Out for Common Pitfalls

• Don’t ignore thermal expansion; parts can get tighter or looser with temperature changes.
• Consider machinability – some fits need tight tolerances that cost more to produce.

6. Pro Tips for Smooth Designing

• Start with a hole-basis system. It’s simpler, more common, and helps standardize parts.
• Keep documentation clear using GD&T symbols for fit and tolerance to avoid confusion.

Following these steps helps pick the right engineering fit that balances performance, cost, and durability—especially important here in the U.S. where precision and reliability are key.

Real World Applications and Case Studies in Engineering Fits

Engineering fits are everywhere in real-world products and play a big role in how well machines run and last. Here’s how different industries use them:

Automotive Clearance Fits in Transmissions

Transmission systems rely heavily on clearance fits to ensure smooth rotation and easy assembly. These fits allow shafts to turn freely inside gears and bearings without excess wiggle, minimizing wear and improving fuel efficiency.

Aerospace Interference Fits for Strength

In aerospace, interference fits are common for parts that must stay firmly locked together under high stress—like turbine blades on engines. These tight fits create a strong bond without bolts, handling extreme loads and vibrations.

Consumer Electronics Transition Fits in Drone Motors

Transition fits are perfect for sensitive assemblies like drone motors where you need a balance of snugness and some movement. They ensure precision in alignment while still letting parts be assembled without damage.

Medical Device Case Study

A medical device manufacturer switched to transition fits in their assembly process, cutting down vibration and wear in robotic arms. This small design change improved reliability and reduced maintenance costs.

Emerging Trends

Additive manufacturing and 3D printing are opening new doors for engineering fits. These techs allow custom fits and rapid prototyping, speeding up development and reducing costs in industries across the US.

Engineering fits matter in every industry by making sure machines work as promised—smooth, strong, and lasting longer.

Common Mistakes in Engineering Fits and How to Avoid Them

When working with engineering fits, it’s easy to slip up, especially if you’re not careful with details. Here are some common mistakes and how to avoid them:

• Ignoring cumulative tolerances and stack-up analysisDon’t overlook how small tolerances add up across multiple parts. This can lead to assemblies that don’t fit right or perform poorly. Always run a stack-up analysis early to predict potential issues.
• Poor documentation and misuse of GD&T symbolsAccurate drawings and proper use of GD&T tolerances are key for clear communication. Messy or incorrect documentation causes confusion on the shop floor and can increase costs. Stick to standard symbols and double-check your work.
• Focusing too much on cost cutting over lifecycle analysisSaving money upfront by choosing cheaper fits or looser tolerances might backfire later with increased maintenance or failures. Balance cost with how long the product needs to last and the conditions it faces.
• Neglecting design reviews and auditsRegularly reviewing tolerances and fits can catch mistakes early. Use a free audit checklist to ensure every design stage is checked for possible issues before production.

Avoiding these pitfalls helps keep your mechanical assembly fits reliable and cost-effective, especially for the demanding needs of US manufacturing and engineering projects.
