Investment Casting Tooling

Precision In-House Tooling & Mold Design | Dongying Vastcast

At Dongying Vastcast, one of our core competitive advantages is our sophisticated in-house tooling and mold manufacturing capability. By integrating mold design and production within our specialized Dongying facility, we provide high-precision solutions that reduce lead times, ensure superior quality control, and significantly lower overall tooling costs.

High-Precision Capabilities & Tolerances

Our engineering team utilizes advanced technology to develop custom molds capable of casting virtually any complex geometry:

Net Weight & Near-Net-Shape: We focus on delivering components that require minimal secondary machining, saving you material and labor costs.
Extreme Accuracy: Our tooling process consistently achieves tight tolerances within ±0.002 inches per inch, meeting the most stringent industrial requirements.
Custom Engineering: Every mold is tailor-made to your specific CAD/3D drawings, ensuring 100% fidelity to your design.

Advantages of In-House Tooling at Vastcast

Choosing a manufacturer with integrated molding capabilities offers several strategic benefits:

Strict Quality Oversight: By manufacturing molds in our own facility, we eliminate the risks associated with third-party vendors and ensure every tool meets our internal excellence standards.
Rapid Prototyping & Iteration: Our in-house team can quickly adjust and refine mold designs, accelerating your product’s time-to-market.
Cost Efficiency: We pass the savings of direct manufacturing on to our customers, offering competitive mold pricing without compromising on precision.
Long-Term Durability: Our molds are built using high-grade materials to ensure consistent performance over thousands of production cycles.

Choose the Right Mold

We produce three basic types of molds: manual, semi-automatic and fully automatic. Each type of mold has its own advantages and disadvantages. Our team weighs up many factors when determining which type of mold is best for your particular project, including the geometry and quantity requirements of the part.

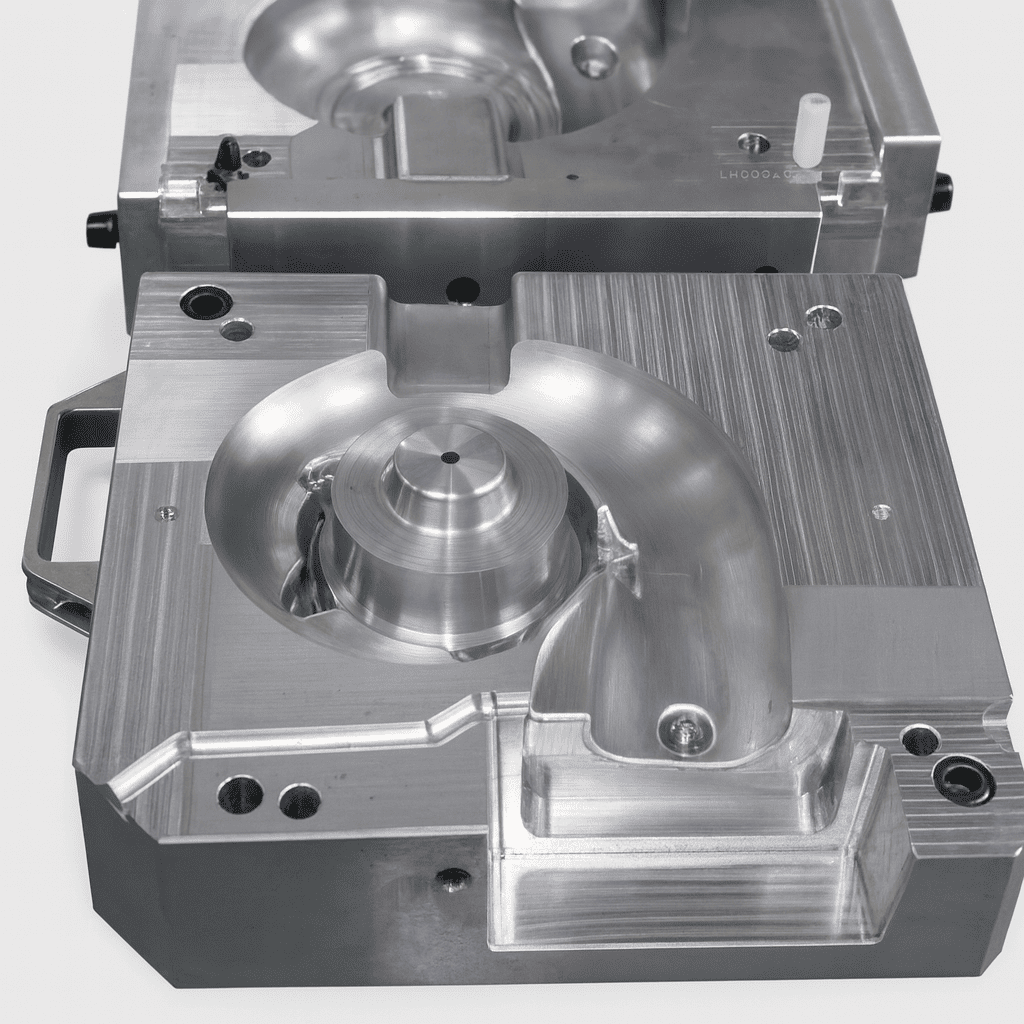

Investment Casting Manual Molds

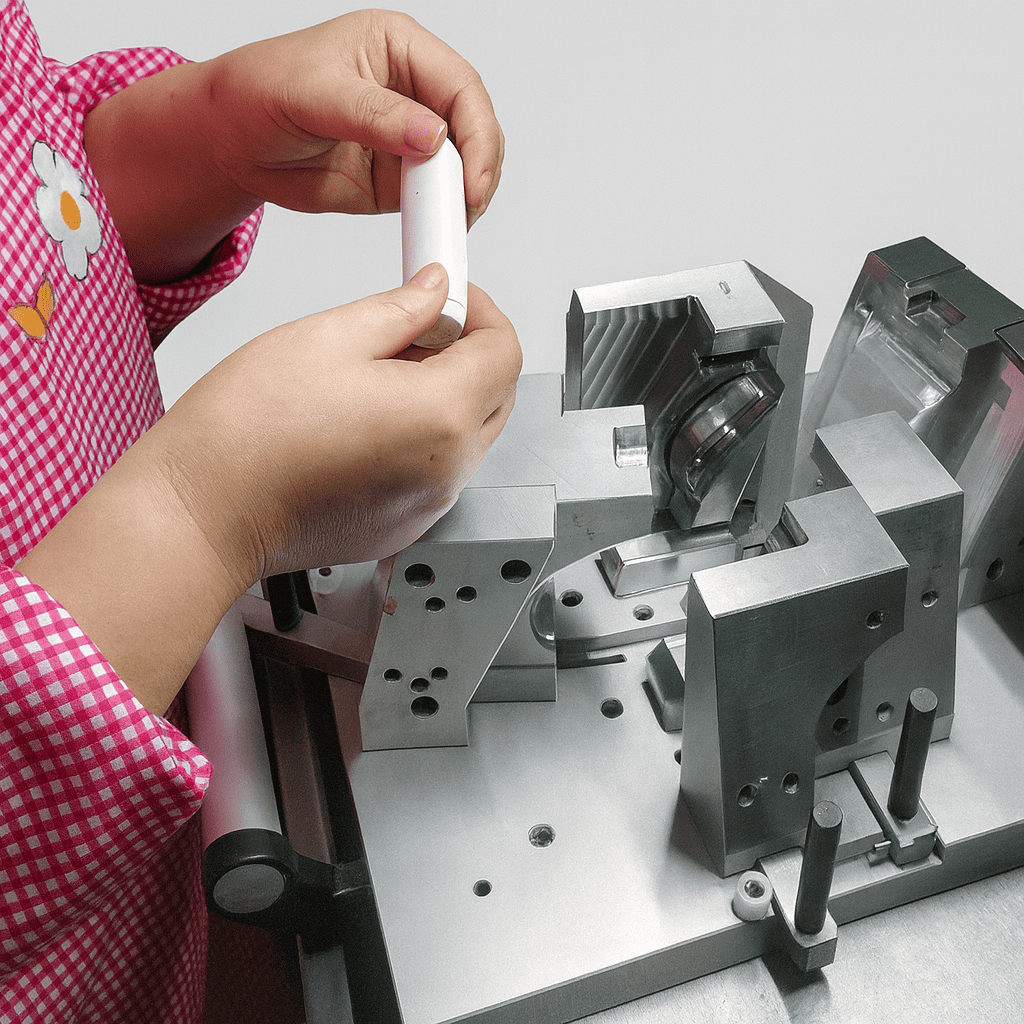

Investment Casting Semi-automatic Molds

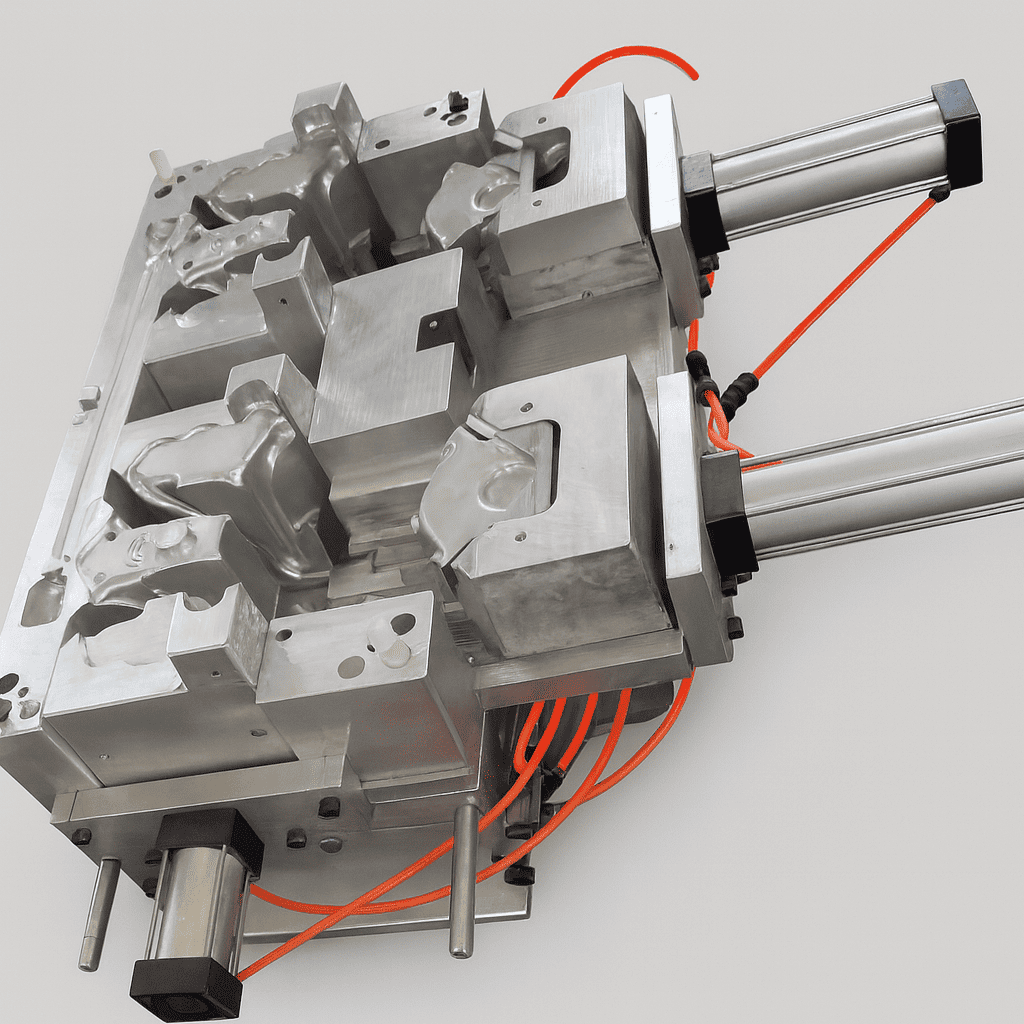

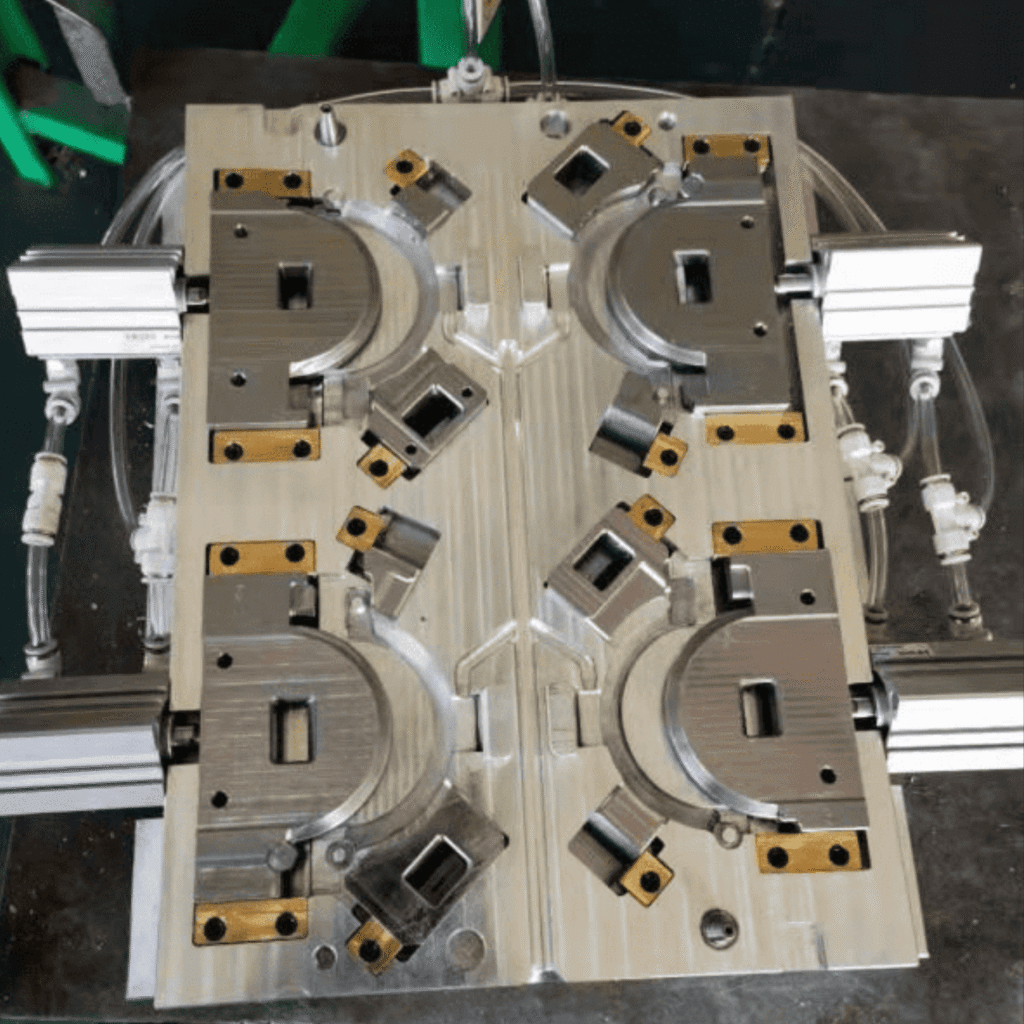

Investment Casting Automatic Molds

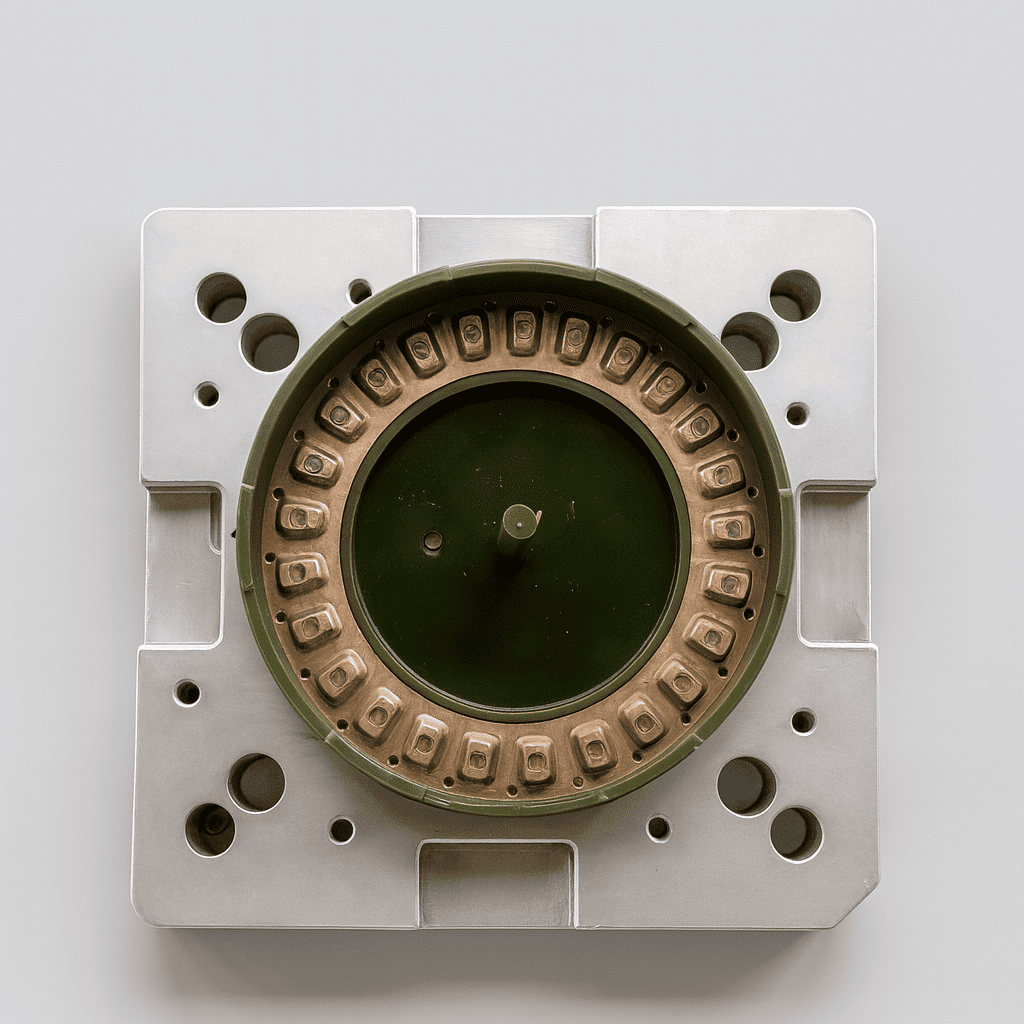

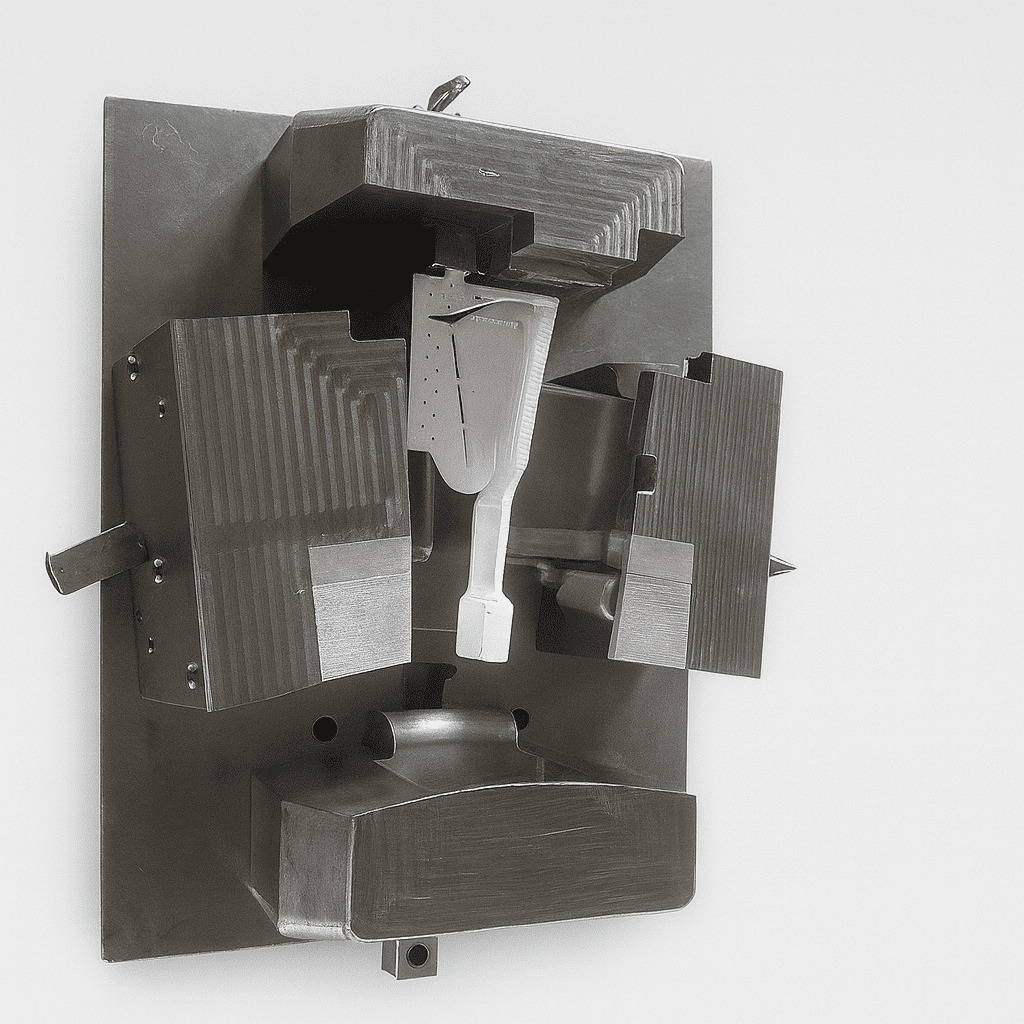

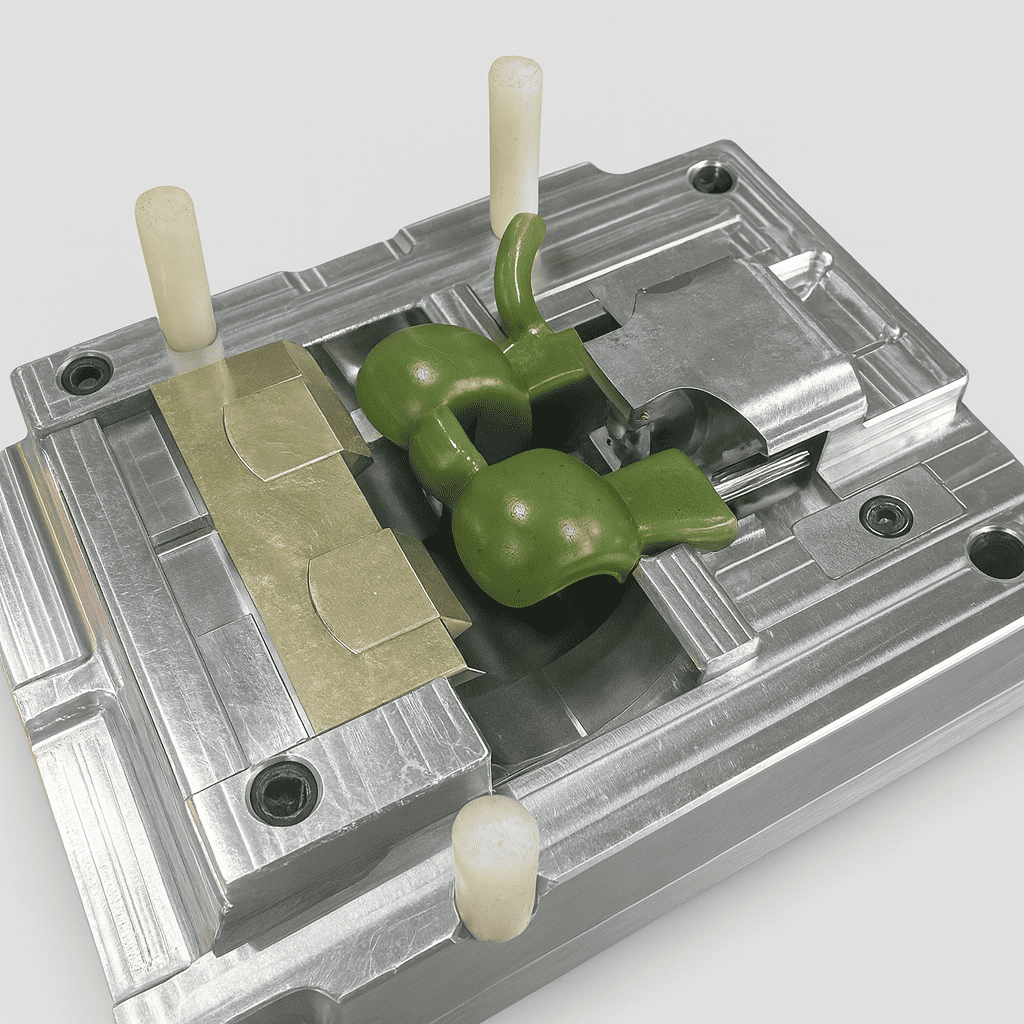

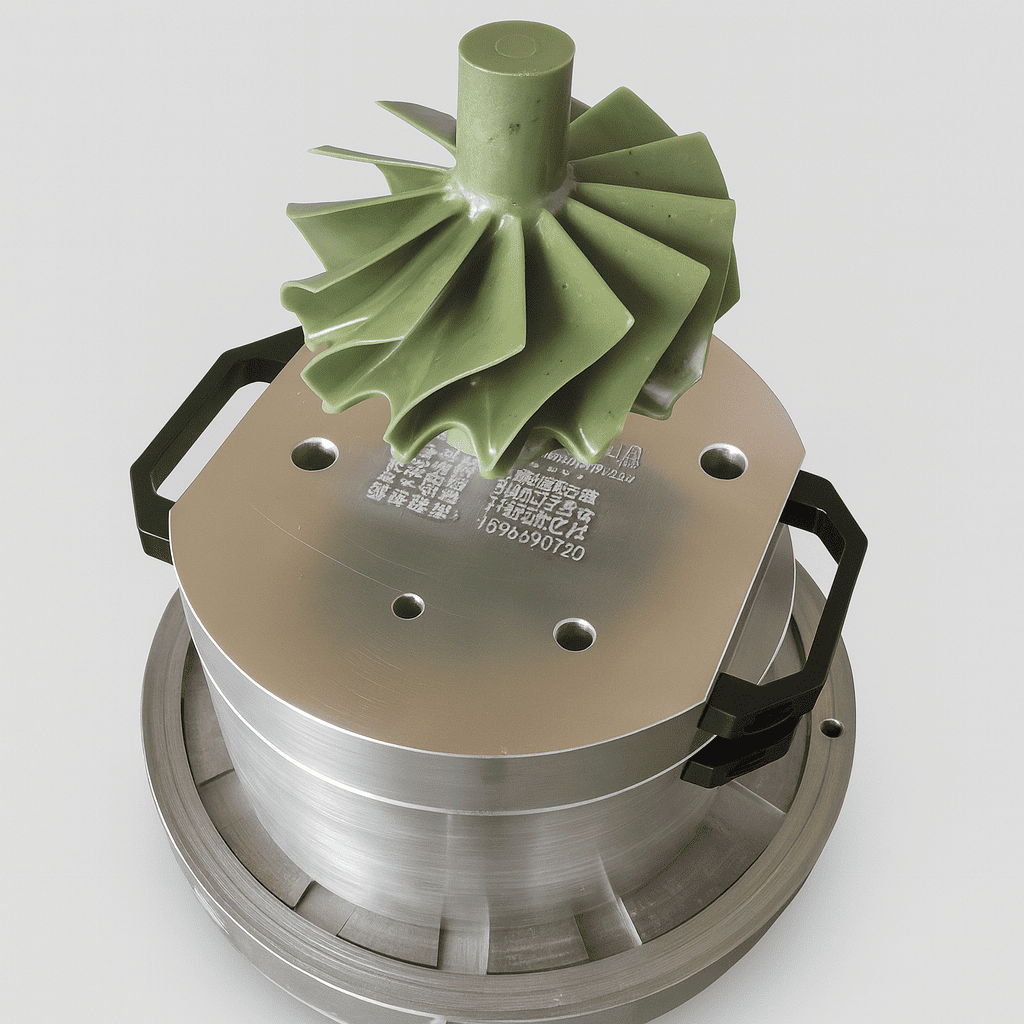

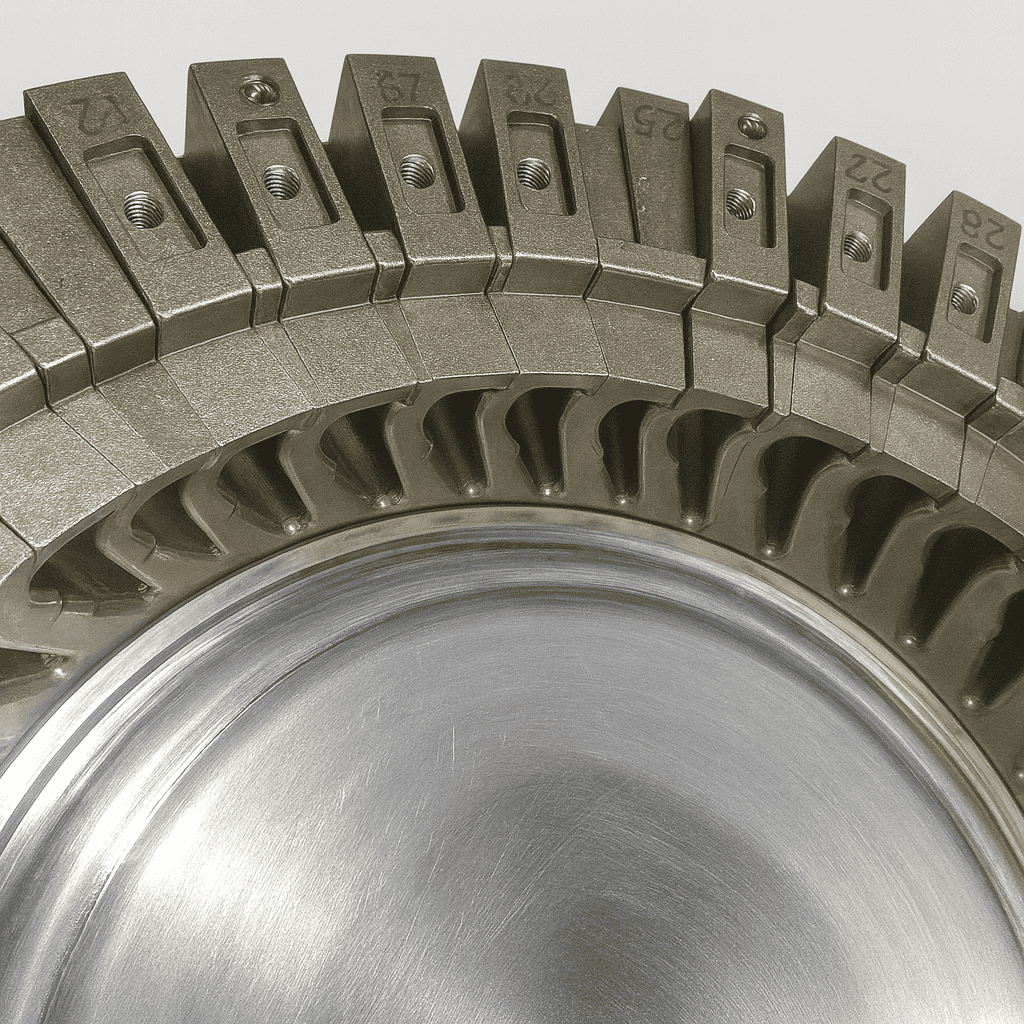

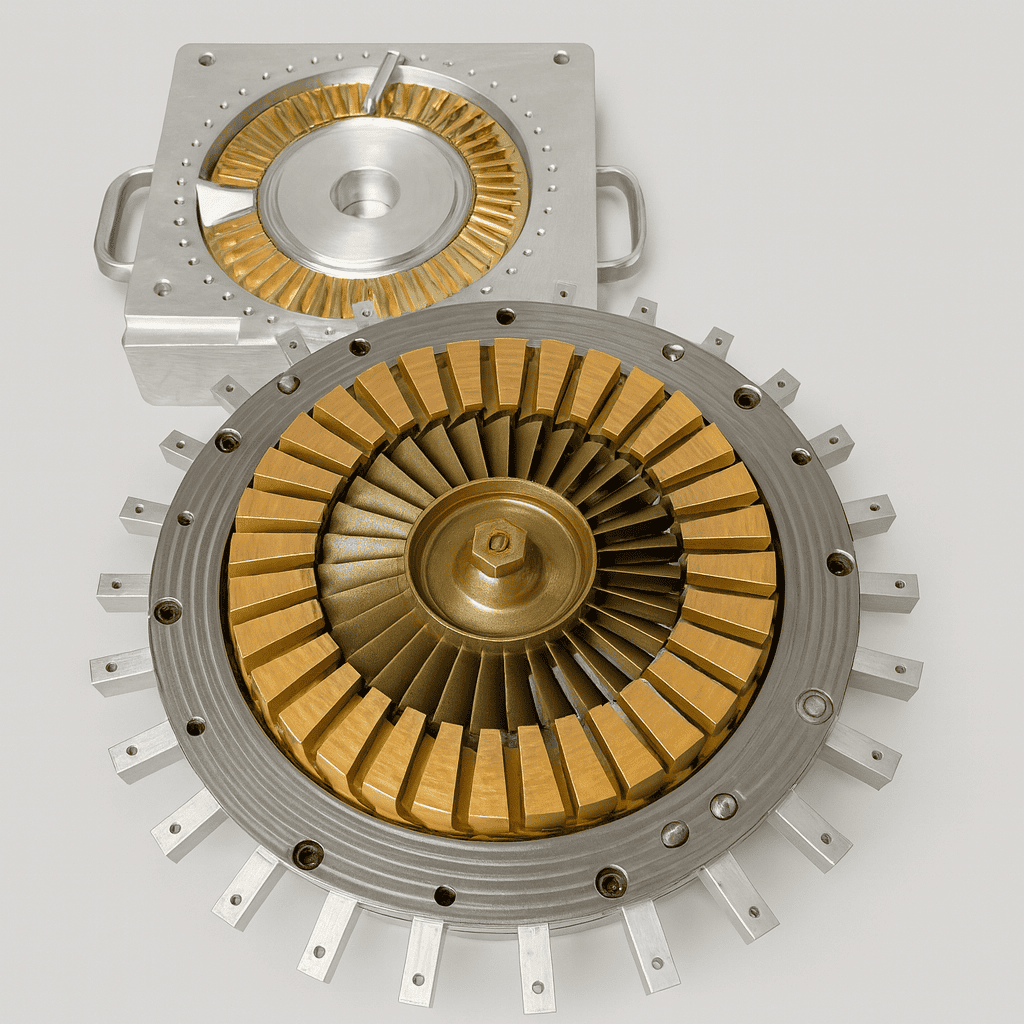

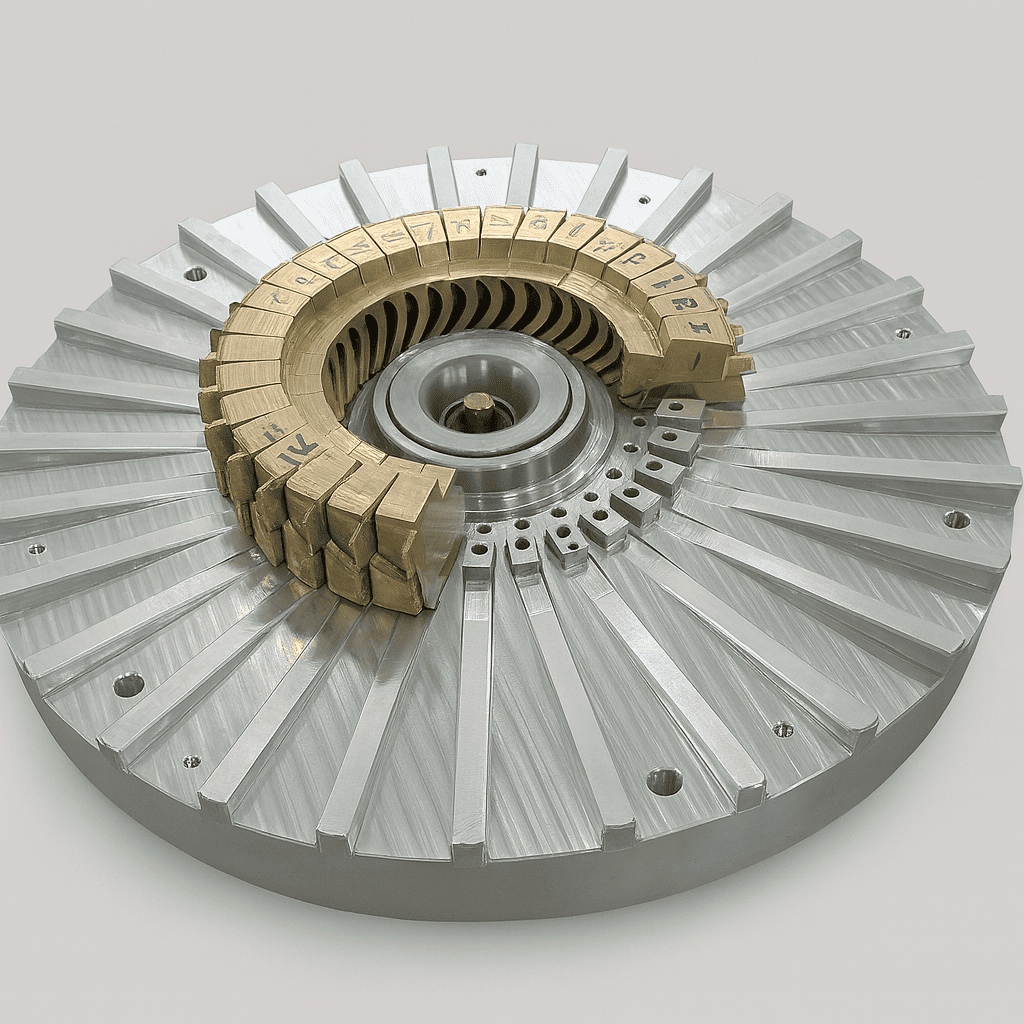

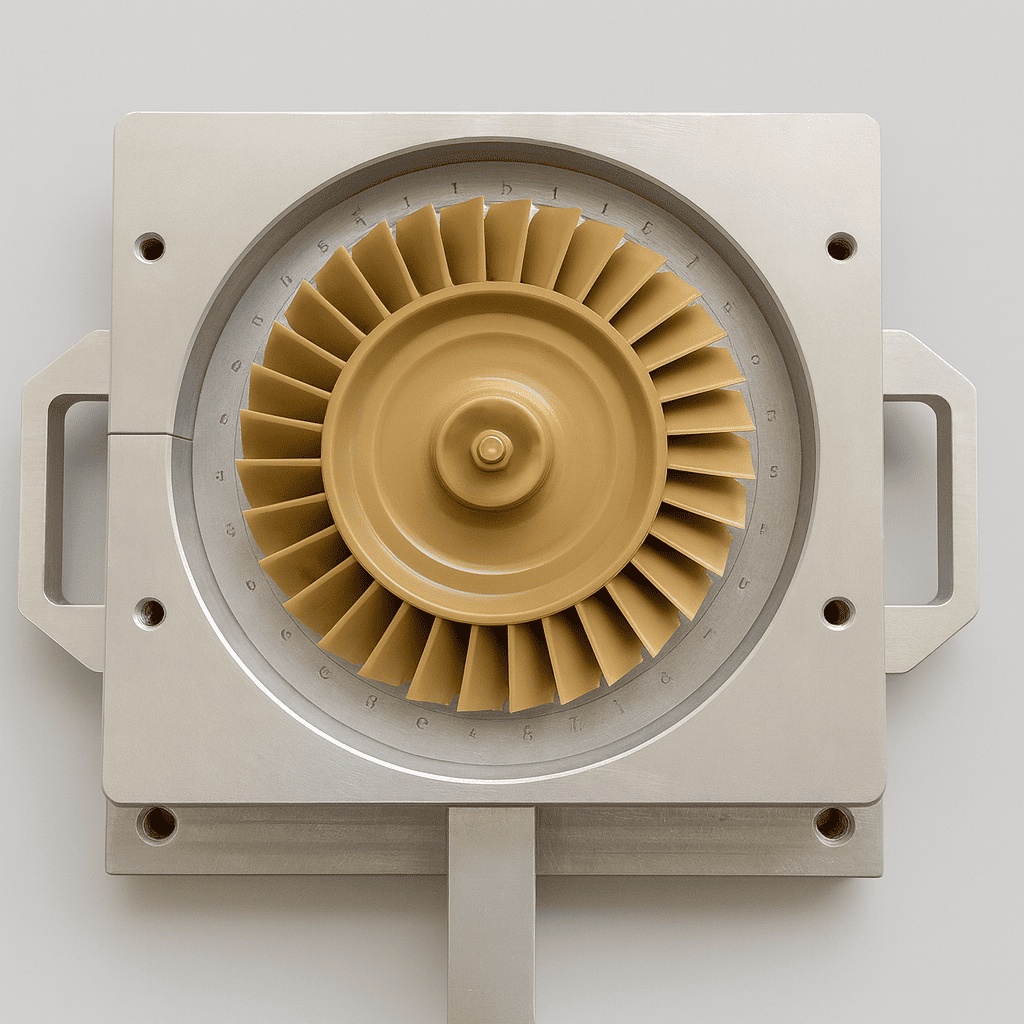

Gallery of Investment Casting Toolings

Complex Internal Geometry & Advanced Core Solutions

At Vast, we specialize in manufacturing components with intricate internal structures that traditional casting methods cannot achieve. By utilizing a sophisticated range of molding and coring technologies, we ensure that every internal passage, undercut, and cavity matches your technical specifications with absolute precision.

Advanced Coring Technologies for Intricate Designs

To produce flawless internal features, we select the optimal coring method based on your part’s complexity:

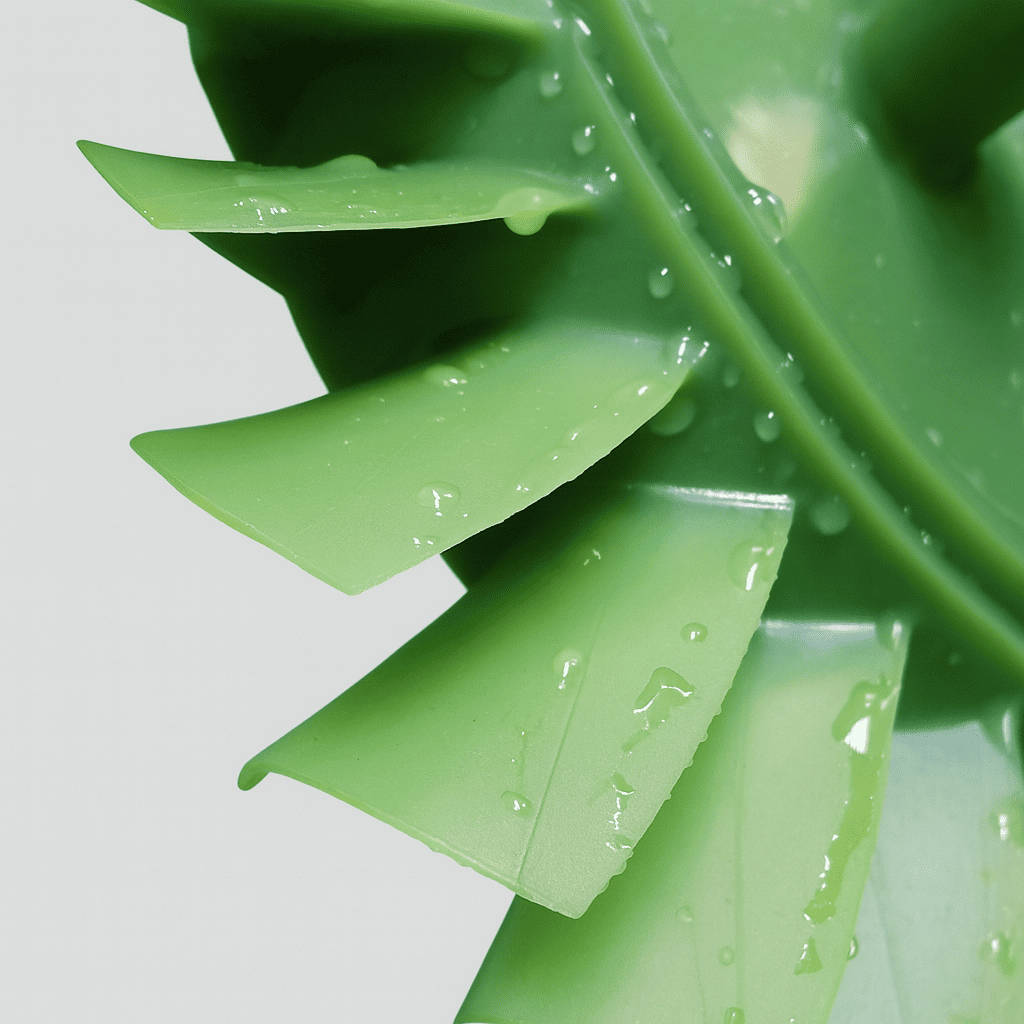

Soluble Wax Cores: Ideal for creating complex, hollow internal geometries that are impossible to reach with mechanical tools. The core is dissolved, leaving a clean, high-precision cavity.
Ceramic Cores (Prefabricated): Used for high-melting-point alloys and extremely tight tolerances in internal passages, common in aerospace and turbine applications.
Collapsible Mechanical Cores: A cost-effective solution for creating undercuts and internal threads that require repeatable accuracy across large production runs.

Modular Assembly & Sectional Casting

For ultra-complex components, we offer a multi-part assembly approach to optimize production efficiency:

Segmented Molding: We design and cast separate sections of a complex part and then expertly assemble them into a finished component.
Cost & Time Reduction: This method significantly simplifies the casting process, reduces scrap rates, and lowers the overall tooling investment for highly sophisticated designs.

Value-Added Engineering & Design for Manufacturing (DFM)

Our in-house engineering service is designed to save you time and capital before production begins. We don’t just cast; we optimize:

Casting Simulation: Using advanced software to predict metal flow and prevent internal defects.
Part Consolidation: We help you redesign multiple machined parts into a single investment casting, reducing assembly costs and improving structural integrity.
Material Optimization: Our engineers suggest the best alloys to balance performance with cost-effectiveness.

Mould Maintenance

Lifetime Mold Maintenance & Quality Guarantee | Dongying Vastcast

At Dongying Vastcast, we stand behind the precision and durability of our engineering. When we design, engineer, and manufacture a custom casting mold for your project, we commit to its performance for the entire lifecycle of your product.

Our Lifetime Mold Maintenance Program ensures that your production remains seamless, predictable, and cost-effective.

Zero-Cost Mold Maintenance for the Lifetime of Your Part

We provide a unique, no-cost maintenance guarantee to our partners. If the mold is designed and produced in-house by Vastcast, we take full responsibility for its upkeep:

Free Repairs & Refurbishment: If a mold wears out, breaks, or suffers any damage through normal production, our in-house tooling team will repair or replace it at no additional charge.
Ideal Working Conditions: We implement a rigorous preventative maintenance schedule to ensure every investment casting mold remains in peak condition, preserving the tight tolerances of your parts.
Cost Predictability: By eliminating the risk of unexpected mold replacement fees, we help you maintain a stable and transparent unit cost for your casting projects.

Why Choose Dongying Vastcast for Custom Tooling?

Our in-house capabilities do more than just cast metal—they safeguard your long-term supply chain:

Engineering Excellence: Our molds are engineered for high-volume repeatability and dimensional accuracy.
Risk Mitigation: You never have to worry about production delays due to mold failure; our onsite team handles everything.
Tailor-Made Solutions: We optimize every mold design to improve the surface finish and structural integrity of your cast parts.

Partner with a Premier China Casting Factory

Ready to optimize your next project? Contact Vast today to learn more about our custom mold capabilities and how our lifetime maintenance guarantee can provide long-term value for your business.

Dongying Vast’s Ability

20+ Years of Expertise in Custom Investment Casting & In-House Tooling

With over two decades of industry leadership, Dongying Vastcast has successfully manufactured and supplied more than 5,000 custom casting designs for diverse industrial and commercial applications. Whether you require a one-off functional prototype or high-volume production, our vertically integrated facility ensures precision at every scale.

The Strategic Advantage of In-House Tooling

Our dedicated in-house tooling workshop and experienced engineers are the backbone of our quality promise. By managing the mold-making process on-site, we offer:

Precision Engineering: Specialist equipment and direct oversight ensure your custom molds are built to exact specifications from day one.
Cost & Time Efficiency: Traditional mold iterations can cost between RMB 3,000 and RMB 80,000 and add weeks to your timeline. Our side-by-side engineering approach significantly reduces the risk of rework.
Optimized Lead Times: Eliminating third-party tooling vendors allows us to move from design to first-article inspection (FAI) faster than the industry average.

Data-Driven Design for Manufacturing (DFM)

At Vastcast, our mold engineers and project developers collaborate closely during the design phase. This synergy ensures that:

Specifications are met on the first try, avoiding the 1-to-3-week delay typically caused by mold modifications.
Castability is optimized, reducing scrap rates and lowering your final unit cost.
Tolerances are strictly maintained, ensuring the final part performs perfectly in its end-use environment.

Get a Precise Quotation for Your Bespoke Project

We specialize in fulfilling bespoke casting requirements with high accuracy. To help our team provide the most competitive and accurate quotation, please provide:

2D & 3D Engineering Drawings: (Formats: STEP, IGES, DWG, or PDF).
Dimensional Tolerances: Clearly defined accuracy requirements.
Material Specifications & Volume: To help us optimize the tooling strategy.

Ready to start your project? [Contact Vastcast Today] for expert engineering support and a comprehensive quote.
