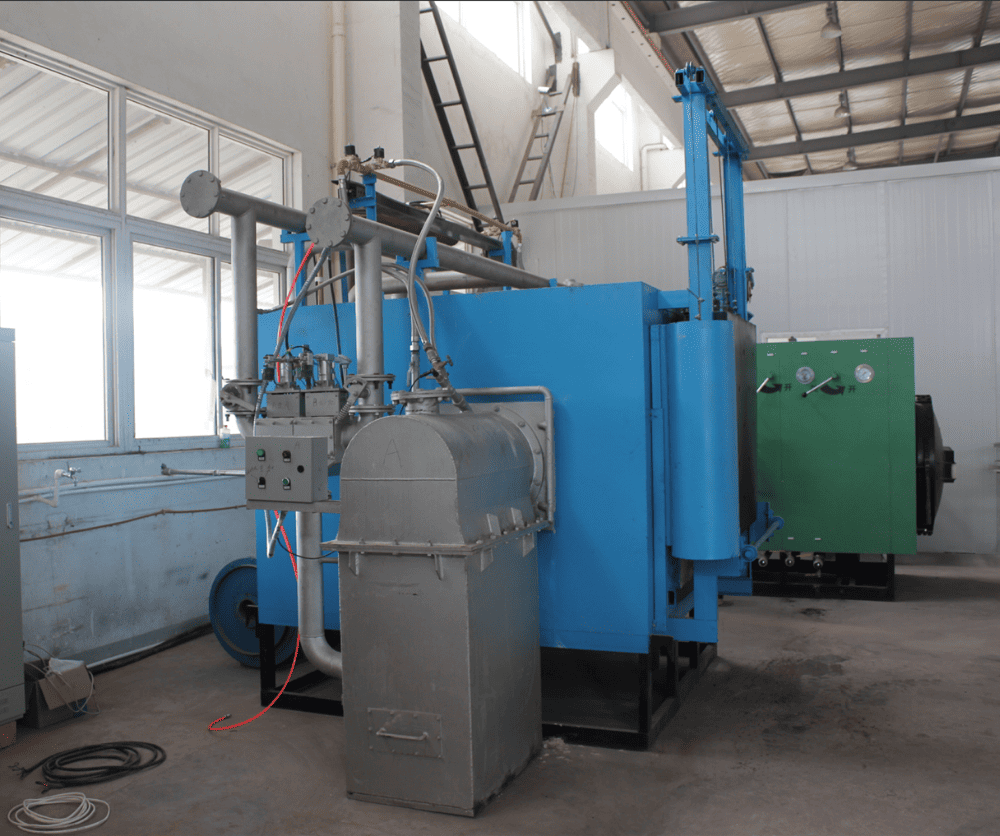

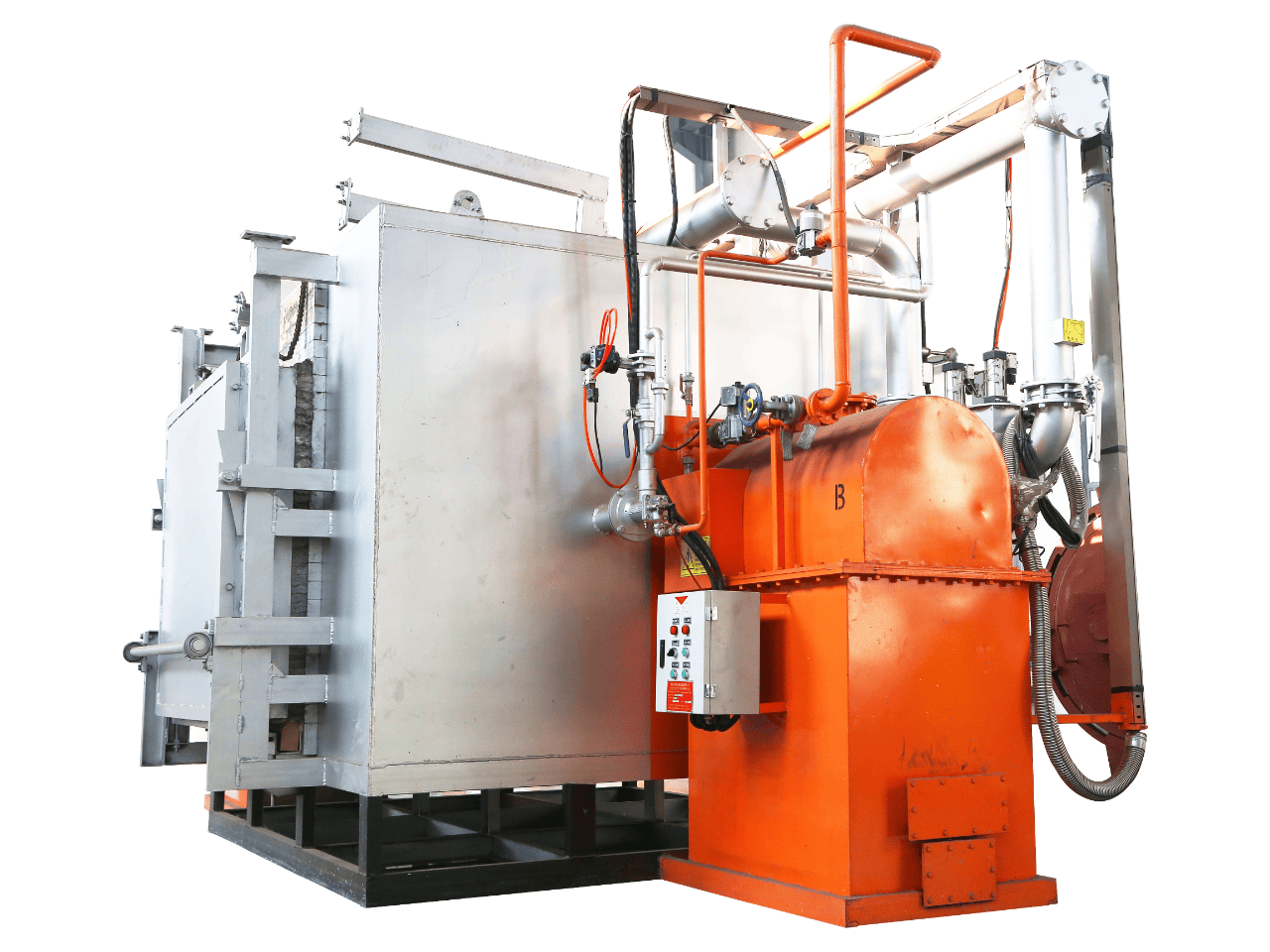

Natural Gas Kiln
Our natural gas kiln adopts an intelligent heat storage design, built with a welded steel shell, high-alumina bricks, and zirconium fiber insulation for superior durability and energy efficiency. Equipped with advanced fuzzy PID temperature control, it ensures ±2℃ precision and ±20℃ uniformity. Widely used in precision casting for mold shell baking and heat treatment, this kiln meets national standards for safety, energy saving, and environmental protection, and is backed by patented technology.
Key Features & Advantages
Durable Structure & Insulation
Welded steel shell, high-alumina bricks, and zirconium fiber insulation ensure long service life and excellent heat retention.
Precise Temperature Control
Advanced fuzzy PID control maintains accuracy within ±2℃ and uniformity within ±20℃
Energy Saving & Eco-Friendly
Intelligent heat storage design improves fuel efficiency while meeting national standards for safety and environmental protection.
Versatile Applications
Ideal for precision casting mold shell baking and heat treatment, supported by patented technology.
Natural Gas Kiln Models
Mould shell heating furnace technical performance table
Furnace Chamber Size: 3000 × 1300 × 1100 mm
Normal Working Temperature: 1200 ℃
Maximum Working Temperature: 1300 ℃
Temperature Precision: ±2 ℃
Temperature Uniformity: ±20 ℃
Fuel Type: Natural Gas (Calorific Value 8500 Kcal/Nm³, Pressure 6–10 KPa)
Number of Main Burners: 4 (thermal storage burners, installed on both sides)
Total Power: 11.2 kW
Equipment Weight: 27 Ton
High-standard electric box roasting furnace
Active Furnace Space: 1400 × 1300 × 700 mm
Throat Size: 580 × 580 mm
Rated Working Temperature: ≤1200 ℃
Installed Power: 150–180 kW
Voltage: 380 V
Installation Dimensions: 4150 × 2300 × 2600 mm
Equipment Weight: 6.5 T
One-stop Precision Casting Services
Factory Planning
Professional consulting and early-stage research for precision casting plant setup.
Equipment & Materials
Supply of casting equipment, auxiliary devices, and high-quality raw materials.
Technical Support
Comprehensive process guidance and on-site technical services.
Molds & Tooling
Customized molds, fixtures, and tooling solutions to ensure production efficiency.
Product Services
End-to-end casting product support, from sample development to mass production
