What Is Rapid Tooling Demystifying the Basics

If you’re wondering what rapid tooling is and how it can reshape your product development, you’re in the right place. At its core, rapid tooling refers to the process of quickly creating molds or tools used for manufacturing prototypes or low-volume production parts. Unlike traditional tooling, which can take weeks or even months to design and manufacture, rapid tooling speeds up this timeline dramatically by leveraging advanced technologies and streamlined workflows.

The evolution of rapid tooling has been driven by advances in digital design and manufacturing. It started as a way to shorten injection mold prototyping and bridge tooling phases, providing companies with faster access to physical parts for testing. Today, it often involves a mix of CAD modeling, 3D printed molds, soft tooling methods, and CNC rapid prototyping. These components work together to create molds that are ready for low-volume manufacturing much faster—often in just days.

Key parts of the rapid tooling process begin with digital design using computer-aided design (CAD) software, which allows precise control over every detail. From there, the tool creation process can leverage multiple fabrication methods, depending on your needs—whether it’s direct 3D printing of molds or indirect approaches that combine additive and subtractive manufacturing. This flexibility is what sets rapid tooling apart, making it a go-to solution for accelerating product development cycles without compromising on the quality of design validation testing.

If speed, cost-effective tooling, and adaptability are priorities in your project timeline, rapid tooling offers a compelling alternative to traditional mold-making—designed to keep pace with your innovation goals.

The Rapid Tooling Process Step-by-Step Breakdown

Step 1 Design and Digital Prep

It all starts with a solid design. Using CAD software, we create a precise digital model of the tool or mold needed for your project. This step ensures accuracy and helps spot potential issues early. Digital prep includes refining the model and setting it up for the chosen fabrication method, making sure everything is ready for a smooth build.

Step 2 Fabrication Methods Direct vs Indirect

There are two main ways to make the tools: direct and indirect rapid tooling.

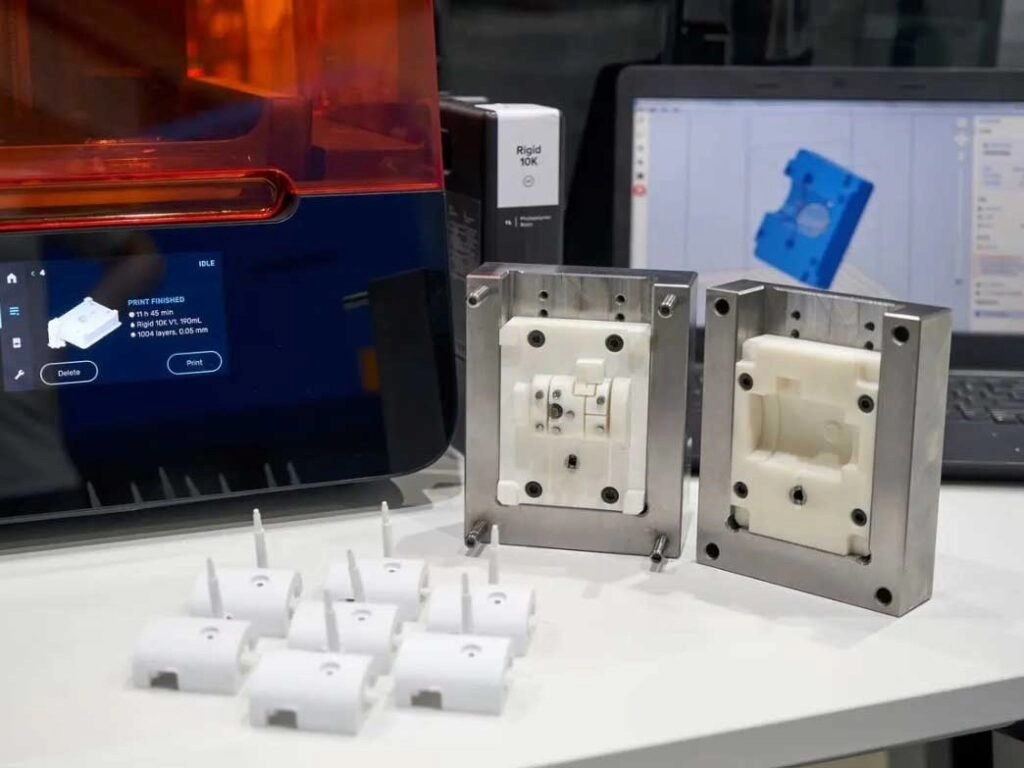

• Direct tooling uses technologies like 3D printed molds to create the tool directly from the digital file. This method cuts down time by skipping intermediate steps.
• Indirect tooling involves producing patterns or master models first (often with CNC rapid prototyping or 3D printing), then making the final tool from those patterns using soft tooling methods or bridge tooling techniques.

Both methods suit different needs depending on volume, budget, and precision.

Step 3 Testing Iteration and Scaling

Once the tool is ready, it’s time for testing. We run prototype molding or injection mold prototyping to validate the design and functionality. Testing helps catch any flaws before full production. Based on test results, adjustments are made for improvement. After final tweaks, the process scales up for low-volume manufacturing or larger production runs, delivering cost-effective tooling without sacrificing quality.

Top Benefits of Rapid Tooling Why It Outpaces Traditional Methods

Rapid tooling changes the game when compared to traditional tooling methods, especially for businesses looking to speed up product development without breaking the bank.

Speed and Cost Efficiency

One of the biggest advantages of rapid tooling is how quickly you can move from design to actual mold making. Traditional injection mold prototyping can take weeks or even months — rapid tooling cuts that timeline drastically. Plus, since it often uses cheaper materials and fewer steps, the cost is significantly lower, making it perfect for startups and smaller businesses.

Design Flexibility and Risk Reduction

Rapid tooling lets you test and tweak designs faster. If something doesn’t work, you can change the CAD files and create new molds without a huge investment. This flexibility reduces the risks of launching faulty products and speeds up design validation testing. You get better parts, faster.

Scalability for Low-Volume Needs

Not every project needs high-volume manufacturing. For low-volume manufacturing runs or bridge tooling between prototyping and full production, rapid tooling provides a cost-effective option that fits just right. It helps you get functional parts without waiting for full tooling, which can be overkill for smaller batches.

Overall, rapid tooling offers a smart, efficient alternative that fits the pace and budget of today’s product development cycles.

Real-World Applications Where Rapid Tooling Shines

Rapid tooling is making waves across several industries here in the U.S., especially where speed and flexibility are key. Industries like automotive, aerospace, consumer electronics, and medical devices rely heavily on prototype molding and injection mold prototyping to bring new products to market faster and with less risk.

Industries Driving Adoption

• Automotive: Rapid tooling speeds up development cycles for parts and allows testing without massive upfront investment.
• Aerospace: Low-volume manufacturing parts that require precision benefit from soft tooling methods and 3D printed molds.
• Medical Devices: Quick iteration and design validation testing ensure products meet strict safety and performance standards.
• Consumer Electronics: Design flexibility means teams can fine-tune products before full-scale production.

Case Study Spotlight Vast Success in Action

At Vast, we helped a medical device startup cut their product development time by 40% using rapid tooling. By creating CNC rapid prototyping molds, they quickly moved from design to test phase, catching design flaws early. This saved them significant costs and helped launch their product on schedule, showing just how product development acceleration through rapid tooling works in real life.

If you’re in a fast-moving industry, rapid tooling isn’t just a nice-to-have—it’s often a game changer.

Limitations and When to Choose Alternatives

While rapid tooling offers speed and cost benefits, it’s not a one-size-fits-all solution. Here are some common drawbacks and when you might want to consider other options:

Common DrawbacksDurability: Rapid tooling molds, especially those made with soft tooling methods or 3D printed molds, may wear out faster than traditional steel molds. This limits their use for high-volume manufacturing.
Material Restrictions: Not all materials work well with rapid tooling processes. Some plastics or metals used in traditional injection mold prototyping may require more robust tooling.
Surface Finish: The finish from rapid tooling molds can sometimes be rougher, needing extra work if a smooth final product surface is critical.MitigationsUse rapid tooling mainly for low-volume manufacturing or prototype molding where speed matters more than longevity.
Combine rapid tooling with CNC rapid prototyping for improved part accuracy and surface finish.
Plan for design validation testing to catch issues early and adjust tooling accordingly.Vs Other Prototyping Methods

| Aspect | Rapid Tooling | Traditional Tooling | 3D Printed Prototypes | Soft Tooling |
|————————|———————————-|——————————–|——————————–|——————————–|
| Speed | Fast, often days to weeks | Slow, weeks to months | Very fast, hours to days | Moderate, days to weeks |
| Cost | Low to moderate | High | Low to moderate | Low to moderate |
| Durability | Moderate, suited for low volumes | High, suited for high volumes | Low, mainly for prototypes | Low, limited durability |
| Surface Finish | Good but may require post-processing | Excellent | Variable, depends on printer | Fair |
| Material Flexibility | Good, but limited for some plastics | Very high | Limited | Limited |

Choose alternatives like traditional tooling when you need long-lasting molds for big production runs. For super quick and cheap prototypes, 3D printed models may work better. Understanding these trade-offs helps you pick the right process for your project.

How Vast Makes Rapid Tooling Seamless for Your Team

At Vast, we know that rapid tooling is a game changer—but only when it fits smoothly into your workflow. That’s why we offer end-to-end services designed to make the whole process easy and efficient. From initial design consultation and CAD optimization to fabrication using the latest soft tooling methods and 3D printed molds, we handle every step so you don’t have to worry about the technical details.

Our experienced team works closely with you to understand your product development goals, ensuring your injection mold prototyping or low-volume manufacturing needs are met on time and within budget. We combine CNC rapid prototyping with advanced quality checks like design validation testing to deliver tools ready for production faster without compromising quality.

Getting Started Tips for Success

• Clear Communication: Share your project goals and timelines upfront.
• Early Collaboration: Involve our experts during the design phase to avoid costly revisions.
• Iterate Smart: Use rapid tooling to quickly test and refine your prototypes before moving into full-scale production.
• Plan for Scaling: Think ahead about how your tooling can evolve as your production needs grow.

Partnering with Vast means you get a seamless rapid tooling experience tailored to speed up your product development acceleration. Ready to cut your time-to-market? Reach out today, and let’s get your project moving fast.

Accelerate Your Innovation with Vast’s Rapid Tooling Expertise

Rapid tooling is the game-changer for businesses looking to speed up product development without breaking the bank. By combining design flexibility, cost-effective tooling, and fast turnaround, it lets you move from concept to prototype molding or low-volume manufacturing quickly and confidently.

At Vast, we make rapid tooling seamless with end-to-end services that cover everything from CAD design to testing and scaling. Our expertise helps you cut time-to-market, reduce risk, and validate your products faster, so you can stay ahead in today’s competitive landscape.

Ready to accelerate your innovation and bring your ideas to life faster? Contact Vast today and let’s get started with the rapid tooling solutions tailored for your project.

FAQ About Rapid Tooling

What is rapid tooling?

Rapid tooling is a fast, cost-effective way to create molds or tools used for prototyping or low-volume manufacturing, often using technologies like 3D printed molds or CNC rapid prototyping.

How does rapid tooling differ from traditional tooling?

It’s quicker and cheaper because it uses modern fabrication methods, allowing faster design changes and reducing upfront costs compared to traditional metal tooling.

Can I use rapid tooling for injection mold prototyping?

Yes, rapid tooling is ideal for injection mold prototyping, especially for testing designs before investing in full-scale production molds.

What are the main fabrication methods in rapid tooling?

There are two primary methods:

• Direct: Creating the tool directly using 3D printing or CNC machining.
• Indirect: Making a pattern or master model first, then forming the tool from that.

Is rapid tooling suitable for low-volume manufacturing?

Absolutely. It supports low-volume manufacturing needs by reducing setup time and costs, making it highly scalable and flexible.

What are soft tooling methods?

Soft tooling refers to using materials like silicone or epoxy to create molds quickly, often part of indirect rapid tooling approaches.

Are there limitations to rapid tooling?

Yes, tools may not be as durable as traditional metal molds and might not suit large volumes or high-heat processes. It’s important to evaluate based on your specific project requirements.

How can I get started with rapid tooling?

Begin with a clear product design, use CAD software for digital prep, and select the best fabrication method. Working with experienced partners like Vast can streamline this process.

Where can I learn more about prototype molding and product development acceleration?

Check out our resources on prototype molding and how to speed up your product development with rapid tooling solutions.

If you have more questions or want tailored advice, don’t hesitate to reach out and connect with our team.
