What Is Spotface Core Definition and Fundamentals

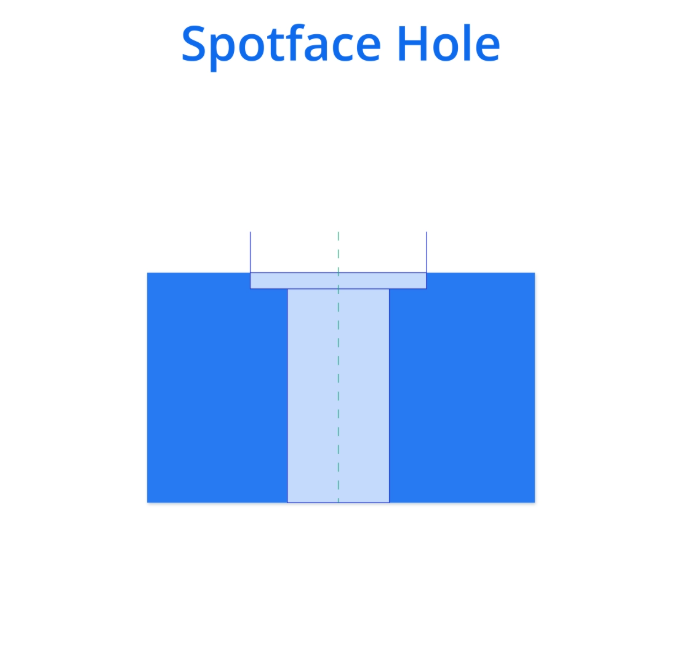

Spotface is a machining operation that creates a shallow, flat, circular surface around a hole. Think of it as a precise, smooth landing pad for fasteners like bolts or screws. The spotface forms a coaxial shallow cylinder, just slightly larger in diameter than the hole itself. Its depth is minimal—usually between 0.5 and 2 millimeters—just enough to make the surface perfectly flat, eliminating any roughness or unevenness caused by casting or forging.

Historically, spotfacing started as a manual finishing step, where machinists faced rough spots by hand to ensure bolts would sit flush. Today, it’s mostly automated with CNC machines, which bring much higher precision and consistency, especially on cast and forged parts that often have uneven surfaces. This shift revolutionized manufacturing by speeding up production and improving quality.

The main advantages of spotfacing include:

• Ensuring perpendicularity between the fastener surface and hole axis
• Reducing stress concentrations that can lead to fatigue or failure
• Improving assembly torque accuracy, giving tighter, more reliable joints

In the U.S., spotfacing is widely used in automotive and aerospace industries as a cost-effective way to clean up rough casting surfaces without doing a full facing operation. It balances quality and budget, making it a go-to step before fastening.

[Here a diagram would show a rough casting surface next to one post-spotface, highlighting how the smooth flat area improves fastener seating.]

Wondering how this compares with counterboring or where exactly spotface fits in your project? Let’s dive deeper.

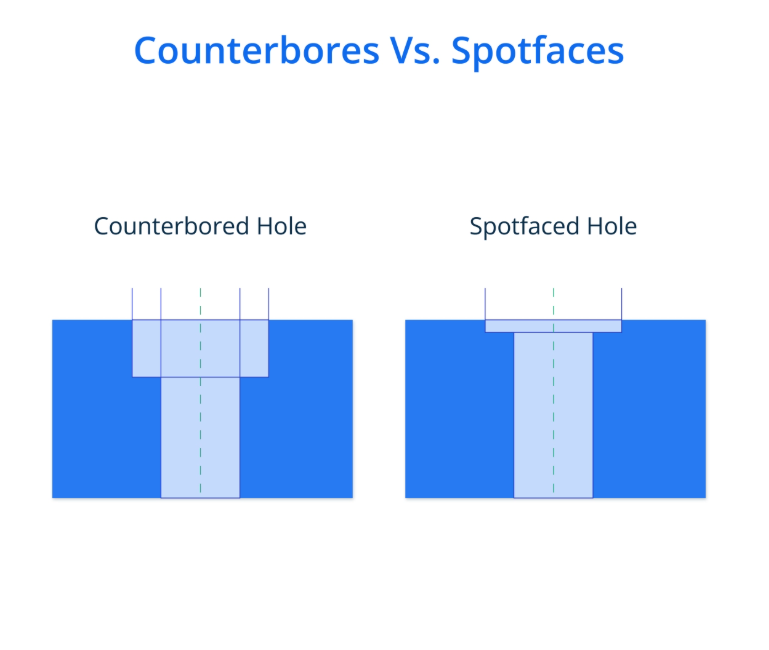

Spotface vs Counterbore Key Differences and When to Choose Each

Here’s a quick side-by-side look at how spotfaces and counterbores differ, and when one makes more sense than the other:

Feature	Spotface	Counterbore
Depth	Shallow, usually 0.05–2mm	Deeper recess for bolt heads
Purpose	Flatten a rough surface for fastener seating	Create a pocket to hide bolt or screw head
Applications	Fix uneven or scaly surfaces like castings or forgings	Flush mounting fasteners on smooth surfaces
Surface Requirement	Corrects irregular or rough surfaces	Needs a flat surface for sealing or flush fitting
Cost Implications	Usually cheaper and quicker	Higher tooling and machining cost
Hole Depth Control	Minimal, just enough to flatten	Controlled depth critical to bolt clearance

When to Use Spotface vs Counterbore

• Use Spotface if:
  • You have irregular or rough surfaces from casting or forging.
  • No recess is needed, just a flat, clean seat for your fastener.
  • Keeping machining costs low is a priority.
  • Fastener head flushness is not critical.
• Use Counterbore if:
  • You need to mount bolts or screws flush with or below the surface.
  • The fastener head must be hidden or protected.
  • Assembly requires a precise bolt head clearance.
  • Working with smooth surfaces that don’t require surface flattening.

Common Pitfalls

• Over-machining spotfaces can waste material and increase costs.
• Incorrect depth specification often leads to problems—stick closely to ASME Y145 guidelines on spotface depth tolerances.
• Assuming spotface can replace a counterbore can cause assembly issues if flush mounting is required.

Spotface vs Counterbore SEO Variations

• Spot facing tools
• Shallow counterbore
• Machined flat surface
• Fastener seating recess
• Piloted spotfacer
• CNC spotfacing process
• Spotface depth tolerance

Choosing between spotface and counterbore comes down to your surface conditions, fastener needs, and budget. For US-based automotive and aerospace shops, spotfacing is a go-to for efficient cleanup of rough surfaces, while counterbores serve when flush fits and fastener concealment matter most.

Applications of Spotface in Real World Industries

Spotface machining is a go-to in many industries where precision and reliability matter. In the automotive sector, spotfaces are commonly used on engine blocks to ensure bolt holes are perfectly flat and perpendicular. This reduces vibration-related wear and improves fastening reliability, which is critical for engine longevity.

In aerospace, spotfaces create precise pads on large forgings. These flat surfaces help align fasteners exactly as per Boeing and other aerospace specs, ensuring structural integrity and safety in high-stress environments. Spotfacing supports tight tolerance requirements that aerospace parts demand.

For general machinery, spotfaces help orient bosses and provide clean, flat areas on castings for part marking or component mating. This ensures consistent assembly and reduces variations in fit and function.

Additive manufacturing is a newer area where spotfacing plays a growing role. After printing hybrid parts, spotfacing cleans up irregular surfaces around holes, prepping them for fasteners and improving overall part quality.

Case Study

A Midwest tooling shop using spotface techniques reported a 20% reduction in assembly time on a complex tooling project. By ensuring flat, consistent bolt seating, they minimized rework and tightened production schedules—showing how spotface machining boosts efficiency in real-world US manufacturing environments.

Local Efficiency Boost

US small batch producers especially benefit from spotfacing. Tight tolerances paired with flexible, cost-effective machining make spotfaces a practical choice for localized manufacturing where quality and quick turnaround are key.

How to Spotface Step by Step Machining Process

Preparation and Material Assessment

Before you start spotfacing, assess your material—whether it’s aluminum, steel, or another metal. Different materials react differently to heat and machining forces. Check tolerances and make sure your hole is drilled or pre-bored because spotfacing is meant to clean and flatten the surface around an existing hole, not form the hole itself.

Tools and Setup

• Use piloted spotfacing tools or end mills designed for spotfaces.
• CNC machines with interpolation paths work best to keep the surface flat and coaxial with the hole.
• Make sure your tool diameter matches the spotface size needed and that the pilot fits snugly in the hole to guide the cutter.

Execution Steps

1. Secure the workpiece firmly in your fixture or vice.
2. Align the pilot of the spotfacer tool precisely in the hole to ensure coaxiality.
3. Select the correct cutter diameter and set the flat seating surface around 2 times the fillet radius of your fastener head.
4. Begin machining with a shallow Z-axis plunge—do not go too deep; typically, 0.05 to 2 mm depth is enough.
5. Use a circular XY motion to create a flat spotface surface around the hole.
6. Inspect the finished spotface for flatness using a micrometer or preferably a coordinate measuring machine (CMM).

Best Practices

• Use coolant or cutting fluid to reduce heat buildup and avoid part distortion.
• Multi-axis CNC machines help when you need angled or non-perpendicular spotfaces.
• Double-check tool wear regularly to maintain quality.

Video Demo

For a quick visual guide, check out Vast’s branded demo video available on our website. It walks you through the entire CNC spotfacing process to help you get the best results.

Essential Tools and Equipment for Spotfacing

When it comes to spotfacing, having the right tools is key for accuracy and efficiency. Here’s a quick rundown of what you’ll need:

• Core Tools: Piloted counterbores are the standard go-to, ensuring the cutter stays centered for a clean flat surface. For hard-to-reach spots, back spotfacers come in handy, allowing you to machine from the backside without disassembly. Tool inserts graded ISO K20 are popular for their durability and sharpness on common metals like aluminum and steel.
• Advanced Options: For more complex or reverse facing tasks, arbor-pulled multi-flute tools offer greater control and smoother finishes. These are especially useful for precision work on aerospace or automotive parts where tight tolerances matter.
• Sourcing Tips: While many spotfacing tools are available off the shelf, custom options can better match your specific project needs. If you want tailored solutions, contact Vast for expert advice and custom spotfacer options designed to boost your efficiency.
• Cost Benefit Analysis: Investing in high-quality spotfacing tools pays off over time. Tools with longer lifespans reduce downtime and tooling costs, delivering a better ROI for high-volume runs typical in US manufacturing hubs.
• Local Habit: In the US, sourcing tools domestically is common to ensure quick lead times and reliable support. This keeps production lines moving fast—crucial for small batch producers and just-in-time manufacturing setups.

Having the right equipment tailored to your tasks can make spotfacing smoother, more precise, and ultimately more cost-effective.

GD T and Specification Essentials for Spotface Callouts

When specifying a spotface on your drawings, it’s crucial to understand the GD&T basics and standards. The ASME Y14.5 notation is the go-to for spotface callouts. Typically, the spotface diameter and depth are noted right before the hole callout, ensuring the machinist knows exactly what surface finish and size are required.

Key Tolerancing Points

• Flatness tolerance is vital since the purpose of a spotface is to create a true flat surface for fastener seating.
• Follow IT grade standards for hole and spotface tolerances to maintain consistent quality.
• Positional accuracy matters for coaxiality between the spotface and the original hole; misalignment can affect assembly and torque performance.

Common Errors to Avoid

• Mis-specifying diameter sizes is a frequent issue. For example, Boeing specs sometimes differ from standard ASME, so always double-check which standard your project follows.
• Not indicating depth tolerances can lead to over-machining or insufficient flatness.

Quick Drawing Annotation Checklist

• Spotface diameter with appropriate tolerance
• Spotface depth with maximum and minimum depth limits
• GD&T flatness symbol near spotface callout
• Note if spotface is coaxial with hole or has positional tolerance
• Reference the standard (such as ASME Y14.5) if needed

Pro Tip

Integrate your drawings with CAD software that supports automated feature recognition for spotfaces. This reduces errors in communication and speeds up manufacturing setup by clearly flagging spotface features and callouts in your models.

Troubleshooting Spotface Challenges and Optimization Tips

Spotfacing can run into a few common issues, but with the right approach, you can avoid costly mistakes and get consistent results.

Issue 1: Uneven Surfaces After Machining

This usually happens from tool deflection or improper feeds. Here’s how to fix it:

• Check the spotfacer tool for wear or bending. Replace if needed.
• Adjust feed rates slower to reduce vibration and deflection.
• Use multi-axis CNC machines where possible for better control on angled or uneven surfaces.

Issue 2: Depth Inconsistencies

Uneven spotface depth causes assembly problems and can weaken the joint. Solutions include:

• Program CNC stops carefully with precise Z-axis control.
• Use depth gauging tools or digital micrometers after each pass to verify depth.
• Consider piloted spotfacers that self-center and keep consistent depth.

Optimization Tips

Try hybrid techniques to improve spotface quality while saving material:

• Add a chamfer to the spotface edge. This relieves stress and helps fasteners seat cleaner.
• Focus on minimal material removal to keep part strength and reduce cycle time.
• Use coolant consistently to avoid heat distortion and extend tool life.

Metrics for Success

Track these to measure your spotface improvements:

• Torque retention tests to confirm fastener tightness over time.
• Failure rate reductions indicating stronger, reliable joints.

For a handy guide with troubleshooting tips, best practices, and checklists, download our free Spotface Checklist PDF at vast. It’s tailored for the needs of small batch U.S. producers aiming for tight tolerances and cost savings.
