Discover expert tips on taps for cutting threads including types selection and pro techniques for precise internal threading in metal and wood.

Understanding the Basics How Taps Cut Threads and Key Components

When you need to create internal threads in a hole, taps for cutting threads are your go-to tool. But how exactly do they work? Understanding the core mechanics will help you pick the right tap and get clean, precise threads every time.

Core Mechanics Cutting Action vs Forming Threads

There are two main ways taps cut threads:

• Cutting taps remove material by slicing away metal chips. These taps have sharp cutting edges and are ideal for most metals.
• Forming taps, also called roll taps, don’t cut but rather press the metal to form threads. They’re great for ductile materials like aluminum or copper, leaving stronger threads without chips.

Knowing the difference ensures you select a tap suited for your material and project.

Anatomy Breakdown Body Chamfer and Flute Types

Most thread taps share these key parts:

• Body: The middle section where threads form on the tap.
• Chamfer: The tapered section at the tip that helps start the thread smoothly.
• Flutes: Long grooves running along the tap’s body. Flutes:
  • Provide cutting edges
  • Allow chip removal
  • Can be straight, spiral, or spiral point depending on the tap type

Each flute style suits different materials and hole types.

Materials Overview HSS Carbide Coatings

Taps come in different materials and coatings for durability and performance:

Material	Pros	Cons	Best Use
High-Speed Steel (HSS)	Good balance of toughness and sharpness	Limited wear resistance	General-purpose threading
Carbide	Extremely hard and wear-resistant	Brittle, can chip if misused	Hard metals, abrasive materials
Coated Taps (TiN, TiCN)	Enhanced hardness, longer tool life	Higher cost	Aluminum, stainless steel

Choosing the right material improves tap life and thread quality.

Understanding these basics about how taps cut, their structure, and their materials sets you up to choose the perfect tap and avoid common threading problems.

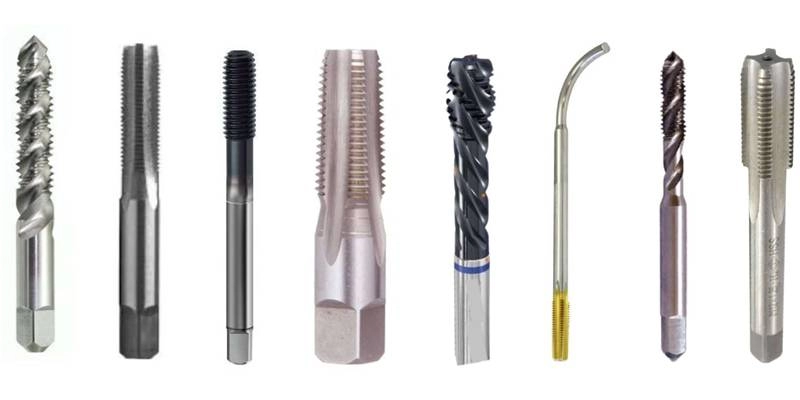

Types of Taps for Cutting Threads Choose the Perfect Match

When picking taps for cutting threads, knowing the right type makes all the difference. Here’s a quick breakdown to help you choose the perfect match:

Hand Taps

• Taper taps: Start gradually to help guide the thread cutting, great for beginners or rough holes.
• Plug taps: Have a moderate taper and are the most common for general use.
• Bottoming taps: Cut threads all the way to the bottom of blind holes, perfect when you need full-depth threads.

Machine Taps

• Spiral point taps (or gun taps): Push chips forward, ideal for through holes and faster machine tapping.
• Spiral flute taps: Pull chips out of blind holes, excellent for tougher materials and deeper holes.

Specialized Taps

• Pipe taps: Designed specifically for creating tapered pipe threads in plumbing and gas lines.
• Adjustable form taps: Let you tweak thread profiles to match unique standards or repair worn threads.

There are also niche taps for specific needs:

• Gas taps for sealing gas fittings
• Hydraulic taps for high-pressure systems
• Optical taps for precise threading in optical devices
• Wooden taps for clean threads in wood without splitting

Visual Aid Table with Key Tap Sizes and Types

Tap Type	Use Case	Hole Type	Chip Removal	Best For
Taper Hand Tap	Starting threads	Blind/Through	Chips break easily	Beginners, soft metals
Plug Hand Tap	General threading	Blind/Through	Moderate	All-round threading
Bottoming Hand Tap	Thread full depth	Blind holes	Difficult chips	Blind hole finishing
Spiral Point Tap	Fast machine tapping	Through holes	Pushes chips out	Steel, through holes
Spiral Flute Tap	Clean threads	Blind holes	Pulls chips out	Aluminum, tough metals
Pipe Tap	Creating pipe threads	Through holes	Varies	Plumbing & gas lines
Adjustable Form Tap	Custom/repair threads	Variable	Varies	Repair, custom specs

Pro Tip for Aluminum Frames

When working with aluminum frames, Vast spiral flute taps are a game-changer. Their chip-pulling action keeps threads clean, reduces sticking, and extends tap life—ideal for soft metals where chip buildup can be a hassle.

Choosing the right tap depends on your project’s metal type, hole depth, and threading needs. Knowing tap types saves you from costly mistakes and gets you solid threads every time.

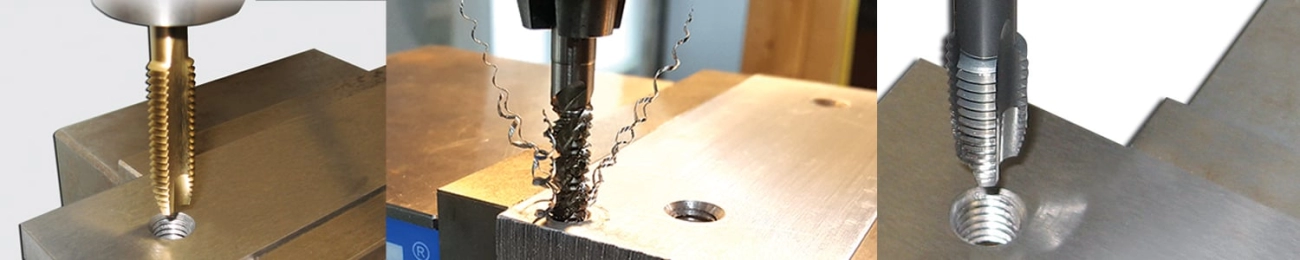

Selecting the Right Tap Factors for Success in Your Workshop

Choosing the right tap can make or break your threading job. Here’s what to keep in mind to get it right every time.

Material Compatibility

• Soft metals like aluminum or brass usually work best with spiral flute taps. They clear chips well and reduce binding.
• Hard metals like stainless steel or cast iron call for high-speed steel (HSS) or carbide taps. These stay sharp longer and handle tougher materials without breaking.

Hole Type and Depth

• Through holes (all the way through the material) allow chips to exit easily, so standard taps work fine.
• Blind holes (stopping before breaking through) need spiral point or spiral flute taps to help pull chips out of the cut and prevent clogging.

Thread Specs

• Always match your tap to the exact thread standard—metric or imperial. Use a tap drill chart to pick the right pilot hole size.
• Know the pitch and diameter required. Using the wrong size can lead to poor fits or cross-threading.

Tool Quality and Brands

• Trusted brands like Guhring, Dormer, or Irwin offer reliable taps with consistent sizing and durable coatings.
• Look for taps with proper coatings like TiN or TiCN for longer life.

Budget vs Longevity

• Cheaper taps might be good for one-off jobs but often dull or break fast.
• Investing in quality taps pays off if you’re threading frequently—less downtime, fewer broken taps, and cleaner threads.

Quick Checklist for Selecting Taps

• Match tap type to material and hole type
• Confirm thread size and pitch with charts
• Choose high-quality brand and coating suited for your budget
• Consider hand versus machine taps depending on your tools and project needs

Getting these basics right ensures your taps won’t let you down, saving time and frustration in the workshop.

Step-by-Step Guide How to Use Taps for Flawless Thread Cutting

Getting clean, precise threads with taps starts before you even touch the tap. Here’s a simple step-by-step to help you nail it every time:

Preparation

• Drill the pilot hole: Use the right size from a tap drill chart to match your tap. Too small, and the tap can break; too big, and the threads won’t grip.
• Chamfer the hole edge: A slight bevel helps the tap start easier and reduces the chance of cross-threading.
• Secure the workpiece: Clamp your part firmly so it can’t move or twist while tapping.

Tapping Process

• Ensure proper alignment: Keep the tap straight and aligned with the hole axis to avoid crooked threads or tap breakage.
• Use cutting fluid: Lubrication lowers friction and heat, making the cutting smoother and extending tap life.
• Turning technique: Turn the tap clockwise smoothly, then back it off every half to full turn to break chips and clear debris. Avoid forcing the tap; let it do the cutting.

Hand vs Machine Tapping

• Hand tapping is ideal for smaller jobs and beginners. Use a tap wrench, follow the turning technique, and stay patient.
• Machine tapping can be faster and more consistent, especially for multiple parts. Make sure your machine is set to the right speed and feed, and use tapping oil to prevent breakage.

Finishing

• Clean the threads: Blow out chips or use a thread cleaning brush.
• Test fit the bolt or fastener: This confirms thread quality and fit.
• Chase damaged threads: If threads have burrs or damage, a thread chaser (or a new tap used carefully) can fix minor issues.

Local Pro Tips for US Garages

• Spiral flute taps are great for aluminum frames, common in automotive repairs here, because they help clear chips away from the hole.
• Always have a selection of taper, plug, and bottoming taps on hand for different threading depths and finishes.
• When tapping blind holes typical in machinery repairs, be extra cautious to break chips often and prevent tap jams.

Following these steps will help you produce strong, accurate threads every time you use taps for cutting threads in your shop or garage.

Troubleshooting Common Tapping Issues Fixes from Vast Experts

When working with taps for cutting threads, some problems can pop up. Here’s how to handle the usual suspects and keep your projects moving smoothly.

Causes and Fixes for Breakage

• Tap Breakage happens mostly when the alignment is off or too much force is applied. Always use steady pressure and keep the tap straight.
• Use cutting fluid to reduce friction and heat buildup.
• If breaking keeps happening, switch to a higher-quality tap, like HSS or coated carbide.

Fixing Poor Threads and Cross-Threading

• Poor threads often come from a dull tap or improper hole size. Double-check your tap drill size using a tap drill chart.
• Cross-threading means you’re not starting the tap straight. Take your time to align it perfectly.
• Clean the hole before tapping to avoid debris causing thread damage.

Managing Chip Buildup

• Chips stuck in the flutes can cause jamming and poor cuts.
• Use spiral flute taps for through holes to clear chips away effectively.
• Stop regularly to back the tap out and clear chips if tapping blind holes.

Material-Specific Problems

• Wood: Soft material chips clog the tap fast. Use specialized wood-threading taps or clean often.
• Steel and Hard Metals: Need sharp taps, proper lubrication, and slow, steady turns.
• Avoid rushing; let the tap do the work.

FAQ on Common Tapping Questions

• Q: Why won’t the tap start in the hole?
  A: Make a small starter notch or use a center punch to guide the tap in straight.
• Q: How deep should I tap?
  A: Stop about one thread short of the hole bottom for blind holes.
• Q: Can I reuse taps?
  A: Yes, but monitor wear. Dull taps cause poor threads and break easier.

Keep these quick fixes in mind, and tapping will feel less frustrating — even for tricky jobs.

Maintenance and Best Practices Extend Tap Life for Endless Projects

Keeping your taps in good shape saves money and hassle down the road. Here are easy ways to maintain and get the most out of your taps for cutting threads.

Cleaning and Storage Tips

• Clean immediately after use: Remove any metal chips and cutting fluid with a soft brush or cloth to prevent rust and clogging.
• Use compressed air: Blow out chips from flutes especially in spiral flute taps to keep the cutting edges clear.
• Store properly: Keep taps in their original cases or a designated organizer to avoid damage or dulling. Avoid mixing different tap types loosely in a toolbox.

When and How to Sharpen or Replace Taps

• Sharpening: High-speed steel (HSS) taps can often be sharpened with the right equipment and skill to restore cutting edges. Carbide taps usually need replacing.
• Replace if: The tap chips break easily, threads don’t cut cleanly, or the tap shows signs of wear and rounded edges. Using a worn tap risks damaging your workpiece and tap breakage.

Safety Guidelines for Home and Workshop Use

• Always wear eye protection to shield from metal chips.
• Use the right cutting fluid to reduce heat and wear.
• Don’t force a tap; back it out periodically to clear chips and avoid breakage.
• Secure your workpiece well before tapping to prevent slips and injury.

Sustainability Benefits of Reusable Taps

• Using durable taps and maintaining them prolongs their life, reducing waste and the need for frequent replacements.
• Proper care supports eco-friendly practices by cutting down tool consumption and material waste over time.

Following these solid maintenance steps will keep your taps cutting clean threads in any project for years.
