Ever struggled with parts that just won’t fit right, no matter how precise you try to be? Unilateral tolerance could be the missing piece in your engineering toolkit. Unlike the usual bilateral approach, it lets you control variation strictly in one direction—helping you avoid assembly headaches and boost manufacturing accuracy. In this quick read, you’ll discover exactly what unilateral tolerance means, how it differs from bilateral tolerance, and why mastering it can save you time and cost. Ready to level up your design precision? Let’s dive into the world of one-sided tolerances and how they can transform your engineering process.

What Is Unilateral Tolerance Core Definition and Key Principles Breaking Down the Basics

If you’re new to engineering drawings or manufacturing, the term unilateral tolerance might sound complicated. Simply put, unilateral tolerance is a type of dimension tolerance where the allowable variation only exists on one side of the nominal size. Instead of giving a range both above and below a target measurement, unilateral tolerance permits deviation in just one direction—either all larger or all smaller.

Here’s the core idea in plain terms:

• Nominal Size: The ideal or target measurement for a part dimension.
• Tolerance Zone: The acceptable limit where the measurement can vary.
• Unilateral Tolerance: The tolerance zone extends only on one side of the nominal size.

For example, if a shaft diameter is specified as 10.00 mm with a unilateral tolerance of +0.05/-0.00 mm, the shaft can increase in size up to 10.05 mm, but it cannot go smaller than 10.00 mm.

Key Principles to Remember

• One-sided deviation: Unilateral tolerance allows variation exclusively in one direction.
• Clear limits: The tolerance zone is easier to control in manufacturing since only one boundary needs managing.
• Fits and function: Often used when the fit between components depends on a critical dimension not exceeding or dropping below a certain limit.
• Engineering drawings: Usually indicated with the size followed by tolerance in one direction (e.g., 20.00 +0.02/-0.00).

Knowing these basics helps designers and manufacturers ensure parts fit perfectly and function reliably while minimizing rework and waste. Understanding unilateral tolerance also lays the foundation for more advanced concepts like bilateral tolerance and unequally disposed tolerance, which we’ll explore next.

If you’re handling precision parts or tight assembly requirements, bilateral or unilateral tolerance choices can make a big difference—so it’s worth mastering this simple but powerful concept. Want to dive deeper? Let’s visually break down tolerance zones in the next section.

What Is Unilateral Tolerance Visual Breakdown Tolerance Zones Illustrated

Unilateral tolerance means the allowable variation is only on one side of the nominal size. Imagine a target where you can only move left or right, but not both—you either add or subtract from the ideal, never both.

Here’s how the tolerance zone looks:

• Nominal size: The exact measurement you want.
• Tolerance limit: Only on one side. For example, if the nominal diameter is 10.00 inches and the tolerance is +0.01/-0.00, the part can be 10.00 to 10.01 inches but not smaller.
• Tolerance zone: A one-sided band extending from the nominal value.

This makes the tolerance zone asymmetric. Unlike bilateral tolerances where variations go both above and below the nominal, unilateral tolerance allows only one-sided deviation, either all positive or all negative.

Visualizing it helps cut confusion when reading engineering drawing notation or defining CNC machining tolerances. In GD&T profile tolerances, it clarifies how far parts can veer on one side without affecting the fit or function.

Using unilateral tolerance zones means you control where the part can vary — perfect for precision fit assemblies that need tight control on one side but can be flexible on the other.

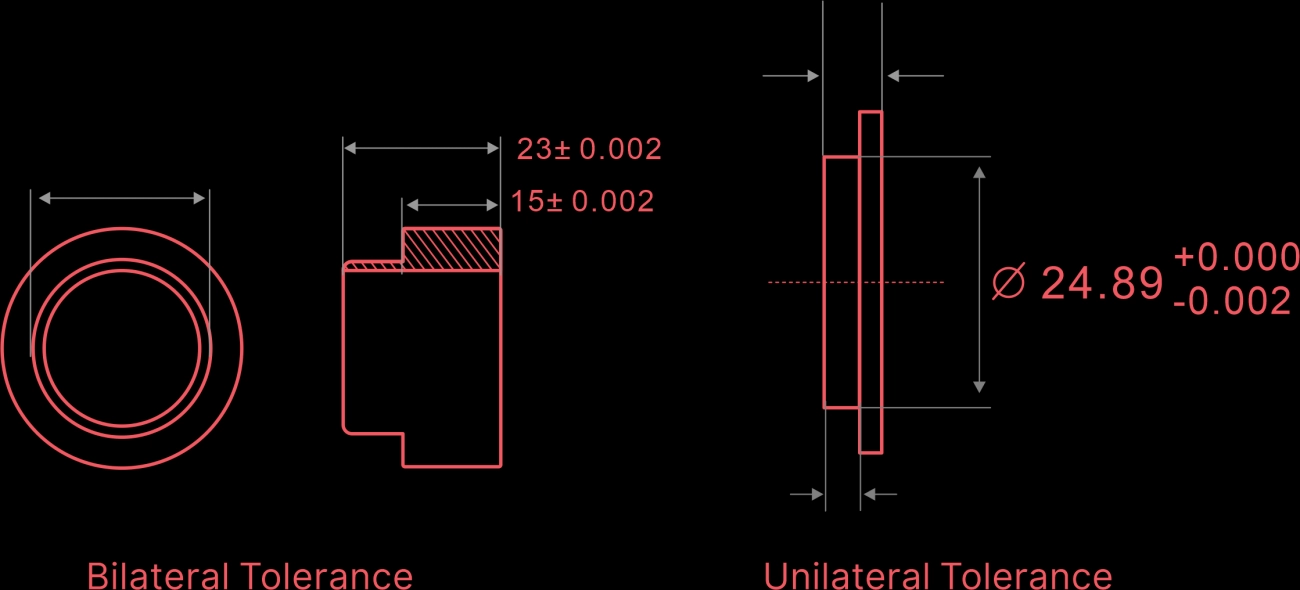

Unilateral vs Bilateral Tolerance Head to Head Comparison

When it comes to unilateral tolerance versus bilateral tolerance, the main difference lies in how the allowable variation is distributed around the nominal dimension.

• Unilateral tolerance allows variation in only one direction—either above or below the nominal size. For example, a shaft diameter might be specified as 10.00 +0.00/-0.05 inches, meaning it can only be smaller than 10 inches, not larger.
• Bilateral tolerance spreads the variation evenly or unevenly on both sides of the nominal size, like 10.00 +0.03/-0.02 inches, letting the part be slightly bigger or smaller within limits.

Why choose one over the other?

• Unilateral tolerance gives tighter control on one side, perfect when a part must not exceed a certain size to fit or function properly.
• Bilateral tolerance offers more flexibility in manufacturing, often simplifying processes when minor deviations in either direction are acceptable.

This comparison shows that unilateral tolerance is ideal when only one-sided deviation matters, such as in precision fits where oversizing could cause assembly issues. Bilateral tolerance works well when there’s room to balance errors on both sides, potentially reducing scrap and costs.

Understanding these differences helps you decide which tolerance type better suits your application, especially in industries like CNC machining or precision assemblies where every fraction of an inch counts.

Unilateral vs Bilateral Tolerance When One Side Wins Pros and Cons of Unilateral Tolerance

Unilateral tolerance lets you control variation on just one side of a dimension. This makes it a great choice in certain situations, but it also has its downsides. Here’s the lowdown on the pros and cons of unilateral tolerance compared to bilateral tolerance:

Pros of Unilateral Tolerance

• Clear Limits on One Side: You only allow deviation in one direction, helping parts fit precisely when only one side matters.
• Simplified Inspection: Measuring is easier because you’re focused on one side of the tolerance zone.
• Cost Savings: Tight control on one side can reduce scrap and rework when a specific limit is critical (like maximum material condition MMC).
• Better for Precision Fits: Works great in assemblies where one part must never be too large or too small but can vary on the other side.
• Clear Engineering Drawings: Specific tolerance zones reduce ambiguity, complying with ASME Y14.5 standards.

Cons of Unilateral Tolerance

• Less Flexibility: Parts that only allow variation in one direction can be harder to produce consistently.
• Potential Higher Costs in Some Cases: If the unilateral side is extremely tight, manufacturing might become more expensive.
• Can Limit Process Capability: The process window shrinks when deviation is allowed only one way, which might increase rejects.
• Not Always Suitable: For symmetrical features or parts that require balanced tolerance on both sides, bilateral tolerance is a better fit.

Bottom Line

Unilateral tolerance shines when you need to control fit or function in one direction and can accept variation in the other. But if your design or manufacturing process needs balanced allowance, you might prefer bilateral or even unequally disposed tolerances. Knowing these pros and cons helps you pick the best tolerance strategy for your parts and assembly needs.

Unilateral vs Bilateral Tolerance When One Side Wins Unequally Disposed Tolerance The Hybrid Option

Sometimes, neither a purely unilateral nor a strictly bilateral tolerance fits the bill perfectly. That’s where unequally disposed tolerance comes into play—a hybrid approach that mixes one-sided and two-sided limits but with uneven allowance.

Unlike unilateral tolerance, where all the variation is on one side, or bilateral tolerance, which splits variation evenly both ways, unequally disposed tolerance allows different amounts of deviation on each side of the nominal size. Think of it as giving yourself a bigger safety margin on one side while keeping the other side tighter.

Why Use Unequally Disposed Tolerance?

• Meets specific functional needs: When a part can tolerate more variation on one side without affecting fit or function.
• Optimizes manufacturing cost: Reducing tightness on one side can save machining time and lower scrap rates.
• Maintains quality control: It still keeps a controlled tolerance zone, unlike fully unilateral, which might risk more rework.

How It Compares

Tolerance Type	Variation Direction	Typical Use Case
Unilateral Tolerance	One side only	When only one side affects function
Bilateral Tolerance	Equal both sides	Balanced flexibility in dimension
Unequally Disposed	Both sides, uneven split	Custom fit needs with cost control

You’ll often see unequally disposed tolerance in specialized assemblies where one side’s deviation impacts performance less than the other. It’s a smart middle ground—offering flexibility without loosening quality control.

To dig deeper into tolerance zones and how they interact, you might want to review related guidelines like ASME Y14.5 standards and GD&T profile tolerances, which clarify how to define and apply these in engineering drawings.

Real World Applications Where Unilateral Tolerance Shines in Manufacturing Precision Fits and Assemblies

Unilateral tolerance really stands out when it comes to precision fits and assemblies in manufacturing. This type of tolerance allows you to control variation on just one side of a dimension, which is especially useful in parts that must fit together tightly without excess play or stress.

For example, in a shaft and hole fit, using unilateral tolerance ensures the shaft diameter doesn’t exceed a maximum size, preventing it from being too large to fit. At the same time, it allows a bit of room on the smaller side to avoid tightness or jamming. This is key for reliable, smooth assembly in automotive parts, aerospace components, and high-quality machinery.

Some benefits include:

• Reduced Scrap and Rework: By limiting variation to one direction, parts are less likely to cause fit issues.
• Consistent Performance: Ensures mating parts perform as intended under real-world conditions.
• Cost Optimization: Focuses tighter control where it matters, easing measurement and manufacturing on the less critical side.

This kind of tolerance works hand-in-hand with GD&T profile tolerances and maximum material condition (MMC) concepts, making it a go-to choice when precise assembly and interchangeability are non-negotiable in CNC machining and mass production environments.

Real World Applications Where Unilateral Tolerance Shines in Manufacturing GD T Profile Tolerances in Action

When it comes to geometric dimensioning and tolerancing (GD&T), unilateral tolerance plays a big role, especially with profile tolerances. Profile tolerances control the shape of a part’s surface or feature, ensuring it stays within a specific zone. Applying unilateral tolerance here means the allowed variation happens only on one side of the nominal surface or line.

This approach is common when a part needs to fit precisely but can’t go beyond a particular limit on one side — for example, a sealing surface that can’t be too high but can be slightly lower without issues. The one-sided deviation set by unilateral tolerance helps maintain function while preventing costly over-manufacturing.

Here’s why unilateral tolerance works well in GD&T profile tolerances:

• Clear material boundary: Ensures the part doesn’t exceed maximum or minimum limits on one side, which is critical for proper assembly.
• Simplified inspection: Measuring a tolerance zone that only extends in one direction makes quality control faster and more straightforward.
• Cost savings: Allows some flexibility in one direction, reducing scrap and rework, especially in CNC machining tolerances where tighter control is expensive.

In the U.S., many manufacturers rely on unilateral profile tolerances within ASME Y14.5 standards to drive precision fit assemblies and maintain consistent quality. This strategy fits well with modern CNC production methods, where controlling one side of tolerance zones helps optimize efficiency without risking part failure.

In short, GD&T profile tolerances paired with unilateral tolerance offer a smart balance—tight enough to ensure performance but flexible enough to keep costs down. This is why it’s a popular choice in industries like aerospace, automotive, and medical device manufacturing.

Real World Applications Where Unilateral Tolerance Shines in Manufacturing Vasts Case Study Optimizing Unilateral Tolerances in CNC Production

Vasts, a leading CNC machining company in the U.S., recently optimized their production by implementing unilateral tolerances across key parts. They focused on controlling dimensions where only one-sided deviation mattered, such as hole diameters and shaft fits. This approach simplified the engineering drawing notation and reduced material waste.

By using unilateral tolerance zones, Vasts tightened control on the maximum material condition (MMC), ensuring parts fit precisely without costly rework. Their quality control team reported improved Cp and Cpk values, meaning parts were consistently within spec. This improved efficiency cut down scrap rates and sped up inspections.

Key takeaways from Vasts’ success with unilateral tolerances include:

• Clear tolerance zones that focus measurement only on the critical side
• Easier adjustments in CNC programs, reducing setup times
• Better alignment with ASME Y14.5 standards for engineering drawing notation
• Enhanced precision fit assemblies, boosting overall product reliability

Vasts’ experience shows how unilateral tolerance is a practical choice in CNC machining when you need tight control without overcomplicating tolerance zones. For companies focused on precision and efficiency, unilateral tolerances can deliver noticeable benefits.

How to Specify and Implement Unilateral Tolerance Effectively Step by Step Notation Guide

Specifying unilateral tolerance right is crucial for clear communication on engineering drawings and smooth manufacturing. Here’s a simple step-by-step guide to get it done:

1. Identify the Nominal DimensionStart with the exact nominal size of your part or feature. This is your baseline measurement.
2. Choose the Direction of ToleranceDecide if the tolerance will be above or below the nominal dimension. Unilateral tolerance allows variation only on one side.
3. Specify the Tolerance ValueIndicate the allowable deviation on one side, for example, +0.010” / 0.000”. This means the part can be larger by 0.010” but cannot be smaller.
4. Use Clear Notation on DrawingsWrite the dimension and tolerance clearly, usually like this: 1.000 +0.010 / -0.000. Placing the zero on the side with no tolerance shows one-sided deviation.
5. Follow ASME Y14.5 StandardsStick to these standards for consistency. They cover how to mark unilateral tolerance and incorporate it with GD&T profile tolerances if needed.
6. Add Notes if NecessaryIf the tolerance impacts assembly, material condition (like MMC), or inspection protocols, add a brief note for clarity.
7. Review for PracticalityDouble-check that the tolerance can be realistically met by your machining process, especially for CNC machining tolerances.

Final Tip: Keeping your notation simple and following the standard conventions avoids confusion and reduces manufacturing errors.

By following these steps, you make sure unilateral tolerance is correctly specified, understood, and implemented from drawing to final inspection.

How to Specify and Implement Unilateral Tolerance Effectively Common Pitfalls and How to Avoid Them

When working with unilateral tolerance, it’s easy to make mistakes that can cause production delays or quality issues. Here are some common pitfalls to watch out for and tips on how to avoid them:

• Confusing unilateral with bilateral toleranceMake sure your drawings clearly show that tolerance is one-sided. Using the wrong tolerance type can lead to incorrect parts and scrap. Use precise engineering drawing notation and follow ASME Y14.5 standards to be clear.
• Ignoring maximum material condition (MMC)Overlooking MMC when specifying unilateral tolerance can cause assembly problems. Always indicate MMC if it applies to the feature to ensure parts fit together as intended.
• Improper notation of tolerance zonesIncorrect placement of tolerance limits on engineering drawings creates confusion. Use clear, standard symbols and labels to define the one-sided deviation accurately.
• Not accounting for manufacturing capabilitiesUnilateral tolerances can be tight on one side, so make sure your CNC machining tolerances and processes can consistently meet these requirements before specifying them.
• Overusing unilateral tolerancesNot every feature needs a unilateral tolerance. Use them only when there’s a functional reason like a precision fit or interference avoidance. Overuse complicates quality control and drives up costs.

Keeping these pitfalls in mind will help you specify and implement unilateral tolerance with confidence, making sure your parts meet standards and assembly goes smoothly.

For a clear step-by-step on notation, check out our guide on How to Specify Tolerances Correctly.

Measuring and Quality Control for Unilateral Tolerances Tools and Techniques

When working with unilateral tolerance, measuring and quality control require a focused approach. Because the tolerance is only allowed on one side of the nominal dimension, it’s important to use precise tools that detect deviations effectively.

Common tools used include:

• Calipers and Micrometers: Great for quick checks on external and internal dimensions with fine accuracy.
• Height Gauges: Useful for ensuring flatness and straightness when the tolerance zone is offset to one side.
• Coordinate Measuring Machines (CMM): The go-to for complex parts where profile or GD&T tolerances apply, capturing deviations precisely in 3D.
• Go/No-Go Gauges: Simple and fast, these help verify if parts fall within the one-sided limit without detailed measurement.
• Optical Comparators: Ideal when visualizing the tolerance zone helps assess if parts meet unilateral specs.

Key techniques to keep in mind:

• Always measure from the nominal dimension toward the allowed deviation side.
• Take multiple readings to identify if measurements consistently stay within the unilateral zone.
• Use gauge repeatability and reproducibility tests to confirm measurement system accuracy.
• For GD&T profile tolerances, apply digital scanning or CMM to capture surface irregularities on the tolerance side.

By combining the right tools and methods, you ensure parts meet unilateral tolerance requirements, which keeps your precision fit assemblies working smoothly and reduces costly rework in CNC producing environments.

Measuring and Quality Control for Unilateral Tolerances Statistical Insights Cp vs Cpk in Unilateral Scenarios

When dealing with unilateral tolerance, understanding the difference between Cp and Cpk is crucial for quality control. Both are process capability indices used in manufacturing, but they tell you slightly different things, especially when tolerance sits mostly on one side.

Cp measures how capable your process is overall by comparing the spread of your data to the tolerance range. It doesn’t consider how centered the process is—just whether the variation fits inside the limits.

Cpk adds the centering factor. It shows how well your process is hitting the target considering the one-sided nature of unilateral tolerance. Since unilateral tolerance allows deviation only in one direction (either above or below the nominal), Cpk becomes more telling because it reveals if your process is drifting toward the limit or safely within range.

Why This Matters for Unilateral Tolerance

• A high Cp but low Cpk means your process spread fits well, but you might be close to the tolerance limit on the allowed side—risky for one-sided deviation.
• Monitoring Cpk helps prevent producing parts that consistently hit the maximum material condition (MMC) or boundary.
• For unilateral tolerance, aim for both Cp and Cpk to be high, but prioritize Cpk since your tolerance zone is asymmetrical.

Practical Tips

• Use real data from CNC machining tolerances to calculate these indices regularly.
• Focus inspection tools on the side of allowed deviation to catch any shift before parts fail.
• Incorporate statistical process control (SPC) charts reflecting unilateral tolerance zones.

Understanding Cp and Cpk helps keep your process stable and within ASME Y14.5 standards for unilateral tolerances. This leads to better precision fit assemblies and less costly rework.

FAQs Answering Your Top Unilateral Tolerance Questions

What is unilateral tolerance?

Unilateral tolerance means a dimension can vary in only one direction—either above or below the nominal size—but not both. It keeps the tolerance zone on one side, which helps in controlling fits more precisely.

How is unilateral tolerance different from bilateral tolerance?

Bilateral tolerance allows variation on both sides of the nominal size, whereas unilateral tolerance restricts variation to just one side. This can be useful when you need tighter control in one direction to ensure proper function or fit.

When should I use unilateral tolerance?

Use it in cases where one dimension must not exceed a limit, like in precision fit assemblies or when parts need to avoid interference. It’s common in CNC machining where controlling one-directional variation is critical.

How do I specify unilateral tolerance on engineering drawings?

Typically, you note the nominal size followed by the tolerance with a plus or minus sign on one side only—for example, 50.00 +0.05/-0.00. ASME Y14.5 standards guide this notation clearly.

Can unilateral tolerance improve manufacturing efficiency?

Yes. By focusing tolerance on one side, manufacturers can reduce scrap and rework since only one limit needs strict control. This often leads to cost savings in CNC machining and assembly.

What are common challenges with unilateral tolerance?

Mistakes often come from misreading drawing notes or incorrectly measuring one-sided deviations. Using the right tools and understanding the tolerance zone is key to avoiding these pitfalls.

Can unilateral tolerance be combined with unequal bilateral tolerance?

Absolutely. That’s known as unequally disposed tolerance, where tolerance offsets are unequal but still exist on both sides—giving flexibility when full bilateral tolerance isn’t ideal but pure unilateral tolerance is too tight.

Where can I learn more about measuring unilateral tolerances?

Look into quality control tools like calibrated micrometers and statistical methods such as Cp and Cpk indices. These help ensure your parts stay within the desired one-sided limits.

Is unilateral tolerance commonly used in the US manufacturing industry?

Yes, especially in precision machining and aerospace manufacturing where exact fits and clearances matter. It aligns well with engineering demands and standards across the U.S. market.
