If you’ve ever wondered why some mechanical parts fail at their edges while others hold up under pressure, the answer often comes down to one simple detail: the fillet radius. This small, rounded corner can be a game-changer in your designs, dramatically reducing stress concentrations and boosting durability. Whether you’re drafting in CAD or fine-tuning a manufacturing process, mastering the fillet radius is essential for stronger, longer-lasting parts. Ready to unlock the secret behind superior mechanical design? Let’s dive into how the right fillet radius can transform your engineering projects.

Understanding Fillet Radius What Is a Fillet Radius

A fillet radius is the smooth, concave rounding of an internal corner where two surfaces meet. Instead of forming a sharp 90-degree angle, the fillet softens this connection to reduce stress concentrations and improve flow or assembly.

You’ll often see fillet radius labeled as an R value, such as R10, which means the rounded corner has a radius of 10 units (inches, millimeters, etc.).

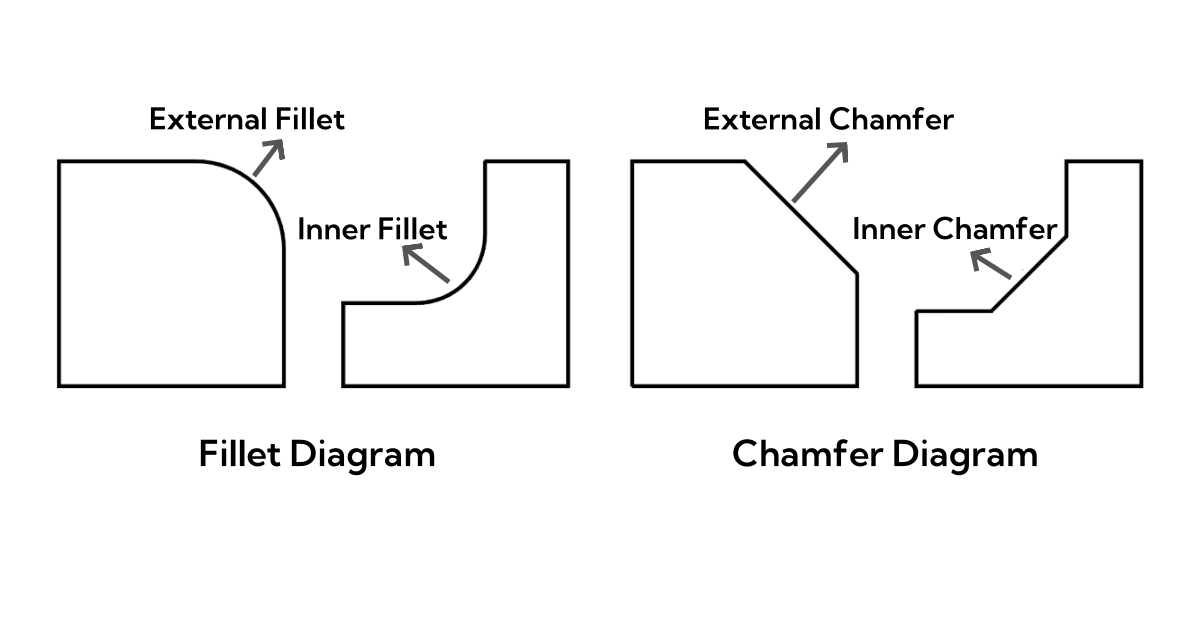

To visualize the difference:

• A sharp corner has a crisp, 90-degree angle—common but prone to stress buildup.
• A chamfer cuts off the corner with a straight angled edge.
• A fillet smoothly rounds the corner with a curved surface.

This simple but effective feature plays a big role in engineering design, improving part durability and manufacturability.

Fillet Radius vs Chamfer Round and Bevel

When deciding between fillet radius, chamfer, or bevel, it’s important to consider their differences, pros, and cons. Here’s a quick breakdown:

Feature	Pros	Cons	When to Use
Fillet Radius	Reduces stress concentration Improves durability Smoother transitions	Can be harder to machine May add weight	Use for internal corners needing stress relief and strength
Chamfer	Easier to machine Helps with assembly Good for sharp edges	Less stress relief Can concentrate stress at edges	Use on edges to ease assembly or for aesthetics
Bevel	Similar to chamfer Improves fit and appearance	Does not reduce stress concentration	Used mainly for appearance or to prepare edges for welding

When to Use Fillet vs Chamfer

• Fillet Radius: Best when you want to improve part strength and reduce stress buildup, especially in mechanical parts like shafts or gears.
• Chamfer: Better for easing sharp edges for assembly or handling and where precise stress relief is less critical.

The fillet radius focuses on boosting durability and reducing stress concentration, while chamfers generally serve assembly ease and aesthetics. Understanding this ensures you pick the right edge feature for your design needs.

Standards and Notation in Engineering Drawings

When working with fillet radius in engineering drawings, it’s important to follow recognized standards to ensure clear communication. The ASME Y14.8 guidelines are the go-to reference in the US for dimensioning and tolerancing radii, including fillets. These guidelines specify how to properly note fillet radius dimensions, whether as a simple radius (R) or with more detailed geometric dimensioning and tolerancing (GD&T) symbols.

In GD&T, the radius is often shown with the symbol “R” followed by the value, like R10, indicating a 10-unit radius. When tight tolerances are required, additional GD&T callouts may specify allowable variation or including datums to control the feature precisely.

Here’s what you typically see in engineering drawings regarding fillet radius:

• R symbol placed near the rounded corner dimension
• Leader lines pointing to the fillet or rounded edge
• When using GD&T, radius might be combined with feature control frames for tighter control
• Clear notes on drawings to distinguish between fillets, rounds, or chamfers

An example drawing will show a sharp internal corner replaced with a fillet radius labeled “R5,” making it unmistakable for manufacturers. Following these standards helps avoid mistakes and ensures your fillet radii meet design intent, especially when parts go to production or inspection.

The Engineering Importance of Fillet Radius Reducing Stress and Enhancing Durability

Fillet radius plays a crucial role in engineering by reducing stress concentrations at internal corners. When a sharp corner is present, stress tends to build up in that small, tight spot, causing what engineers call a stress concentration factor (SCF). This means the material can fail much sooner under load due to high localized stress.

Adding a fillet, or a rounded inside corner, spreads out that stress over a larger area. This lowers the SCF significantly and improves the overall strength and durability of the part.

Case study sharp corner vs fillet

In one study, a steel bracket with a sharp 90-degree corner failed after just a few thousand cycles under load. When redesigned with a fillet radius of R5, the same bracket lasted over ten times longer before cracking. This real-world example shows how even a small fillet radius makes a huge difference in part life.

Stress concentration factor vs radius size

Generally, as the fillet radius increases, the SCF drops. A graph plotting SCF against radius size clearly shows a steep decline in stress concentration with small increases in the fillet radius. Beyond a certain point, larger fillets still help, but the benefit tapers off.

In practical terms, choosing the right fillet radius is a key way to enhance part durability, reduce failure risk, and extend maintenance intervals — especially important for US manufacturing industries focused on reliability and cost-saving over time.

Applications Across Industries

Fillet radius plays a crucial role in many industries, especially where durability and performance matter.

• Mechanical parts like axles, gears, and shafts commonly use fillets to smooth out sharp corners. This reduces stress and helps parts last longer.
• In manufacturing processes such as casting and 3D printing, applying a fillet radius improves material flow and reduces defects during production. It also makes removing parts from molds easier.
• The aerospace and automotive industries rely heavily on fillet radius to enhance safety and reliability. Proper radii reduce fatigue cracks in high-stress areas like engine components and suspension parts.

Using the right fillet radius across these areas not only boosts strength but often lowers costs by extending the part’s life and simplifying manufacturing.

Impact on Part Lifecycle and Cost Savings

Adding the right fillet radius can seriously boost a part’s fatigue life. Studies show that introducing a fillet instead of a sharp corner can increase a component’s fatigue life by up to 50% or more, depending on the material and load conditions. This improvement comes from lowering stress concentration factors, which reduces cracking and failure over time.

Using simulation tools like FEA (Finite Element Analysis) helps engineers predict how different fillet sizes affect stress distribution and life expectancy. These tools make it easier to optimize the fillet radius, balancing durability with manufacturing cost. A well-chosen fillet radius not only extends part life but can save thousands in repairs and downtime over the product’s lifecycle.

In short, investing in the right fillet radius upfront pays off with longer-lasting parts and significant cost savings throughout production and maintenance.

How to Design and Calculate the Optimal Fillet Radius

Choosing the right fillet radius isn’t just about making corners look smooth—it’s about balancing strength, function, and manufacturability. Here are the key things to consider when picking your fillet radius:

• Geometry: Look at the part’s shape and size. Tight spaces or sharp transitions might limit how big your fillet can be.
• Material: Different materials handle stress differently. Metals like steel usually benefit from larger fillets to reduce stress concentration, while plastics may need smaller radii to avoid deformation.
• Load: Understand the forces acting on the part. High-stress areas call for larger fillets to spread out those stresses and avoid early failure.

Calculation Methods

To find the optimal fillet radius, engineers often rely on formulas or design charts that relate the radius to stress concentration factors (SCF). For example, the SCF decreases as the fillet radius increases, which improves durability. You can also use software tools or finite element analysis (FEA) to simulate stress distribution accurately.

Step-by-Step Example Calculation

1. Identify the loading conditions (axial, bending, etc.).
2. Check the material’s allowable stress.
3. Use a standard SCF chart for your material and geometry.
4. Select a radius that reduces SCF enough to keep stress below allowable limits.
5. Double-check manufacturability based on your selected radius.

Common Pitfalls to Avoid

• Too small radius: Leads to high stress concentration and quicker part failure.
• Too large radius: Can cause interference or assembly problems.
• Ignoring manufacturing limits: Some processes like machining or casting have minimum radius capabilities.
• Skipping simulation: Never rely solely on rules of thumb; always validate with simulation when possible.

By keeping all these factors in check, you can design a fillet radius that boosts part life and performance without blowing up costs.

Implementing Fillet Radius in CAD Software Practical Tutorials

Creating a fillet radius in CAD software like AutoCAD or SolidWorks is straightforward once you get the hang of it. Here’s how you can do it and make sure it fits your design perfectly.

Creating Fillets in AutoCAD and SolidWorks

• AutoCAD: Use the FILLET command. Select the edges or lines you want to round, then enter the radius value (e.g., R10). AutoCAD will create a smooth curve to replace the sharp corner.
• SolidWorks: Use the Fillet tool found in the Features tab. You can pick edges or faces and enter the desired radius. SolidWorks also offers options for constant or variable radius fillets for more control.

Using Variable Radius Fillets

Variable radius fillets let you change the curve’s radius along the edge, which is great for complex shapes or when you need a smooth transition that isn’t uniform. Both AutoCAD and SolidWorks support this feature:

• In SolidWorks, pick the Variable Radius Fillet tool.
• Set different radius sizes at various points along the edge.
• The software smoothly blends between those values.

Step-by-Step Guide for Fillets in VAST CAD Suite

If you’re working with VAST CAD or a similarly comprehensive suite, follow these basics:

1. Select the edge or corner to fillet.
2. Input the fillet radius or define multiple points for variable radius.
3. Preview the fillet to confirm the smoothness and clearance.
4. Accept the operation to generate the fillet.
5. Use Undo if needed to adjust parameters.

Measuring and Verifying Accuracy with Tools

After creating your fillet radius, measuring and verifying its accuracy is crucial:

• Use the Measure tool in your CAD software to check the radius value directly.
• Cross-check dimensions with the Dimensioning feature to ensure the fillet matches your design specs or engineering drawings.
• In SolidWorks, you can also use the Evaluate tab tools like Curvature Display or Section View to see how the fillet affects the surface and neighboring geometry.

Getting these details right ensures your parts fit together well and perform as expected, saving you time and cost in production.

Advanced Techniques and Best Practices for Fillet Radius

When working with fillet radius in modern designs, advanced techniques like variable radius fillets and face fillets are essential for handling complex shapes. Variable radius fillets allow you to change the radius along a single edge, which is great for smoothing out transitions where geometry changes. Face fillets help create smooth joins between different surfaces, perfect for intricate parts with compound curves.

Manufacturing tolerances play a big role in fillet radius implementation. It’s important to design fillets that can be reliably produced without costly rework. Often, post-processing like machining or polishing is needed to meet tight tolerance specs, especially in aerospace and automotive components where precision matters.

Sustainability is another key advantage when applying the right fillet radius. Optimized fillets reduce stress concentrations, extending part life and cutting down on material waste caused by early failures or excessive machining. Plus, smoother transitions can improve flow dynamics in fluid systems, which can lower energy use.

Lastly, the fillet radius integrates smoothly into a VAST ecosystem of CAD tools, manufacturing software, and simulation programs. From creating fillets in SolidWorks to analyzing them via FEA, you can streamline workflows for better accuracy and faster iterations. This connectivity helps engineers in the US market develop stronger, cost-effective parts faster.

By using these best practices and advanced options, you ensure your fillet radius designs not only meet functional demands but also optimize production and sustainability.

FAQs Quick Answers on Fillet Radius

What is the minimum fillet radius?

The minimum fillet radius depends on the material and manufacturing method. For most metals, a radius as small as 0.5 mm is common, but bigger is usually better to reduce stress. In machining, going below the tool’s corner radius isn’t practical. Always check your process specs.

How does fillet radius affect welding?

Fillets help welding by providing smoother transitions, which reduce cracking risk. Too small a radius can cause weld defects or stress points, while too large may add unnecessary material and weight. A balanced fillet radius supports better weld quality and strength.

What is a negative fillet radius in CAD software?

Negative fillet radius in CAD means creating an internal sharp edge or groove rather than a rounded corner. Some software uses this to model chamfers or back cuts. It’s not a real physical radius—just a tool trick to get the desired shape.

Additional practical questions

• Can I use variable radius fillets? Yes, they allow smooth transitions on complex parts and better stress distribution.
• How do I measure a fillet radius? Use radius gauges or CAD inspection tools for accuracy.
• Does larger fillet radius always mean longer life? Generally yes, but too large can interfere with part fit or function. Balance is key.
• Are fillets always needed? Not always. Sometimes sharp edges or chamfers work better for assembly or aesthetics.

If you have specific needs for fillet radius in mechanical parts or design, consider your manufacturing process, material, and stress factors first.
