La fusione a cera persa con sol di silice offre parti metalliche precise e durevoli con superfici lisce e tolleranze strette per applicazioni industriali esigenti

Panoramica di prodotto e processo

Definizione ingegneristica della fusione a cera persa con sol di silice

Utilizziamo il processo di fusione con sol di silice, un metodo avanzato di fusione di precisione a cera persa progettato per componenti ad alta integrità. Il processo utilizza sol di silice colloidale come legante miscelato con sabbie refrattarie (zircone e mullite) per costruire un guscio ceramico multistrato attorno a modelli in cera iniettati con precisione.

A differenza dei sistemi convenzionali a vetro solubile, il nostro legante a sol di silice produce uno stampo chimicamente inerte e ad alta refrattarietà. Questa struttura ceramica resiste a temperature di colata superiori a 1650°C senza degradarsi, prevenendo reazioni chimiche metallo-stampo e la decarbonizzazione superficiale.

Parametro di processo	Specifiche di capacità
Sistema legante primario	Sol di silice colloidale (matrice di SiO2)
Refrattario di rivestimento superficiale primario	Sabbia di zircone / Polvere di zircone
Supporto refrattario secondario	Mullite / Silice fusa
Tolleranza dimensionale lineare	ISO 8062-3 DCTG da 4 a 6
Minimum Wall Thickness	1,5 mm (0,060 pollici) standard; 1,0 mm (0,040 pollici) localizzato
Finitura superficiale allo stato grezzo	Ra 1,6 – Ra 3,2 µm (63 – 125 µin)

Principali differenziatori di prestazione e capacità per pareti sottili

Il nostro investimento in fusione a cera persa con guscio ceramico a sol silica offre vantaggi tecnici distinti rispetto ad altri metodi di fonderia:

• Precisione Near-Net-Shape: Realizziamo contorni esterni complessi, canali ciechi interni e geometrie di porti critici direttamente dal modello, riducendo o eliminando la lavorazione CNC di finitura a valle.
• Integrità strutturale a parete sottile: L'alta permeabilità del guscio e il riscaldamento uniforme dello stampo consentono un riempimento affidabile di sezioni trasversali sottili fino a 1.5 mm su ampie superfici, e fino a 1,0 mm su nervature localizzate o alette ottimizzate per il flusso.
• Reazione zero del guscio: L'assenza di leganti a base di sodio interrompe completamente la formazione di incrostazioni superficiali, porosità da gas e inclusioni di scorie, comuni nelle tecniche di fusione più grossolane.
• Alta ripetibilità: Le tassi di contrazione prevedibili del guscio ceramico mantengono una ripetibilità geometrica costante da pezzo a pezzo durante la produzione in batch multi-cavità.

Ambito dalla prototipazione alla produzione di volume

Equilibrio tra velocità di sviluppo e automazione durante la produzione commerciale:

• Fase 1: Prototipazione rapida (da 1 a 50 pezzi)
  • Produzione di stampi tramite modelli SLA stampati in 3D o modelli in resina castabile senza attrezzature dure.
  • Tempo di consegna: da 7 a 14 giorni lavorativi per i primi campioni funzionali.
• Fase 2: Produzione pilota e bassa quantità (da 50 a 500 pezzi)
  • Cavità di stampo in alluminio lavorate rapidamente per la validazione pre-produzione e la verifica dell'assemblaggio.
• Fase 3: Produzione di serie ad alto volume (da 1.000 a 100.000+ pezzi/anno)
  • Iniezione di cera automatizzata in stampi in acciaio perutensili temprato a più cavità (P20/H13).
  • Celle robotizzate per la costruzione del guscio con camere di essiccazione controllate per garantire l'uniformità del guscio e una fornitura ad alto volume.

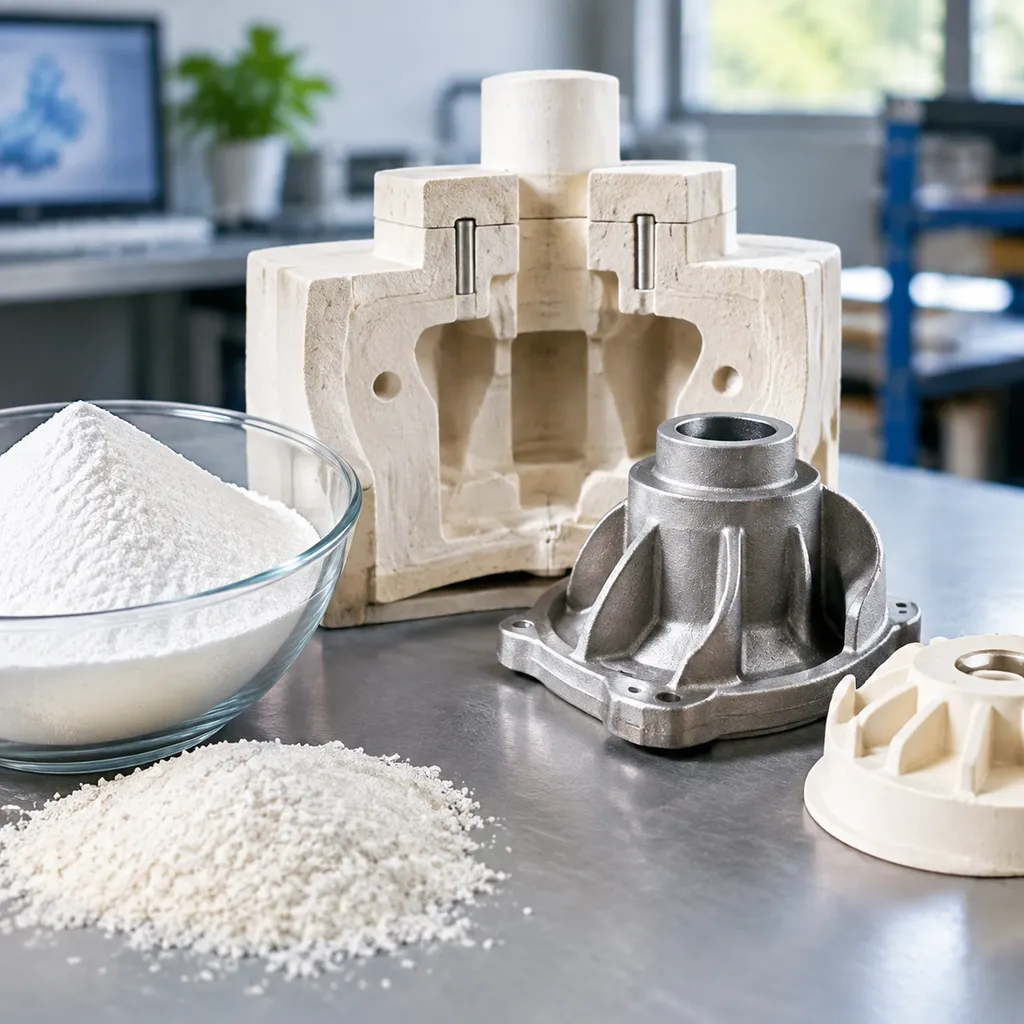

Specifiche ingegneristiche e capacità tecniche

Realizziamo fusioni a forma quasi finita (near-net-shape) che riducono al minimo le lavorazioni meccaniche di finitura e controllano i costi di produzione. Il nostro processo di microfusione a sol di silicio mantiene tolleranze geometriche strette, finiture superficiali lisce e profili di parete stabili sia per brevi tirature che per la produzione in serie.

Parameter	Capacità / Standard	Note ingegneristiche
Tolleranza lineare	ISO 8062-3 DCTG da 4 a DCTG 6	I limiti lineari generali variano di ±0,1 mm per dettagli inferiori a 25 mm
Surface Roughness	Da Ra 1,6 µm a 3,2 µm (da 63 a 125 µin)	Finitura grezza non lavorata direttamente dal guscio ceramico
Part Weight Range	da 0,01 kg a 85 kg (da 0,02 lbs a 187 lbs)	Supporta da microfusioni a grandi alloggiamenti industriali
Dimensioni massime dell'ingombro	Fino a 800 mm × 600 mm × 500 mm	Determinato dallo spazio libero della vasca di immersione e dal volume dell'autoclave
Minimum Wall Thickness	1,5 mm (0,060 pollici) standard; 0,8 mm localizzato	Dipendente dalla fluidità della lega e dalla distanza dal canale di alimentazione
Angolarità geometrica	±0,5° standard	Limiti angolari più stretti disponibili con attrezzature di raffreddamento localizzate

Tolleranze lineari secondo ISO 8062-3 DCTG da 4 a 6

Manteniamo le serie di produzione standard entro le tolleranze di fusione ISO 8062-3 nei gradi da DCTG 4 a DCTG 6. Per le dimensioni non critiche, facciamo riferimento al grado di tolleranza generale CT6, mentre le interfacce funzionali e le sedi delle guarnizioni mantengono costantemente CT4 a CT5. Il controllo del ritiro dell'iniezione di cera e dell'espansione dello stampo in ceramica ci consente di fondere cerchi di bulloni precisi, asole parallele e sottili alette senza distorsioni da sformo.

Parametri di rugosità superficiale allo stato grezzo di fusione

La nostra costruzione del guscio in silice colloidale fornisce una faccia di contatto densa e priva di difetti che elimina la forte vaiolatura tipica dei metodi di stampaggio più grossolani. I pezzi escono dalla fase di distacco con una finitura grezza di fusione da Ra 1,6 a 3,2 µm. Comprendere i corretti parametri di rugosità superficiale e le tecniche di misurazione aiuta a valutare queste trame di fusione rispetto alle superfici lavorate per evitare passaggi di post-elaborazione non necessari.

Limiti di dimensioni e peso dell'ingombro

Le nostre linee di immersione automatizzate gestiscono ingombri di componenti fino a 800 mm di lunghezza principale, gestendo pesi dei pezzi da 10 grammi fino a 85 chilogrammi. Per sezioni trasversali più pesanti, il nostro team di fonderia bilancia i gradienti termici utilizzando alberi di colata personalizzati e anime in ceramica per prevenire cricche a caldo e cavitazione da ritiro.

Regole sullo spessore minimo della parete

Progettiamo sezioni a parete sottile fino a 1,5 mm su ampie superfici piane e fino a 0,8 mm su nervature localizzate e costole strutturali. Il mantenimento di transizioni di parete uniformi elimina la microporosità e garantisce un riempimento pulito dello stampo durante la colata per gravità.

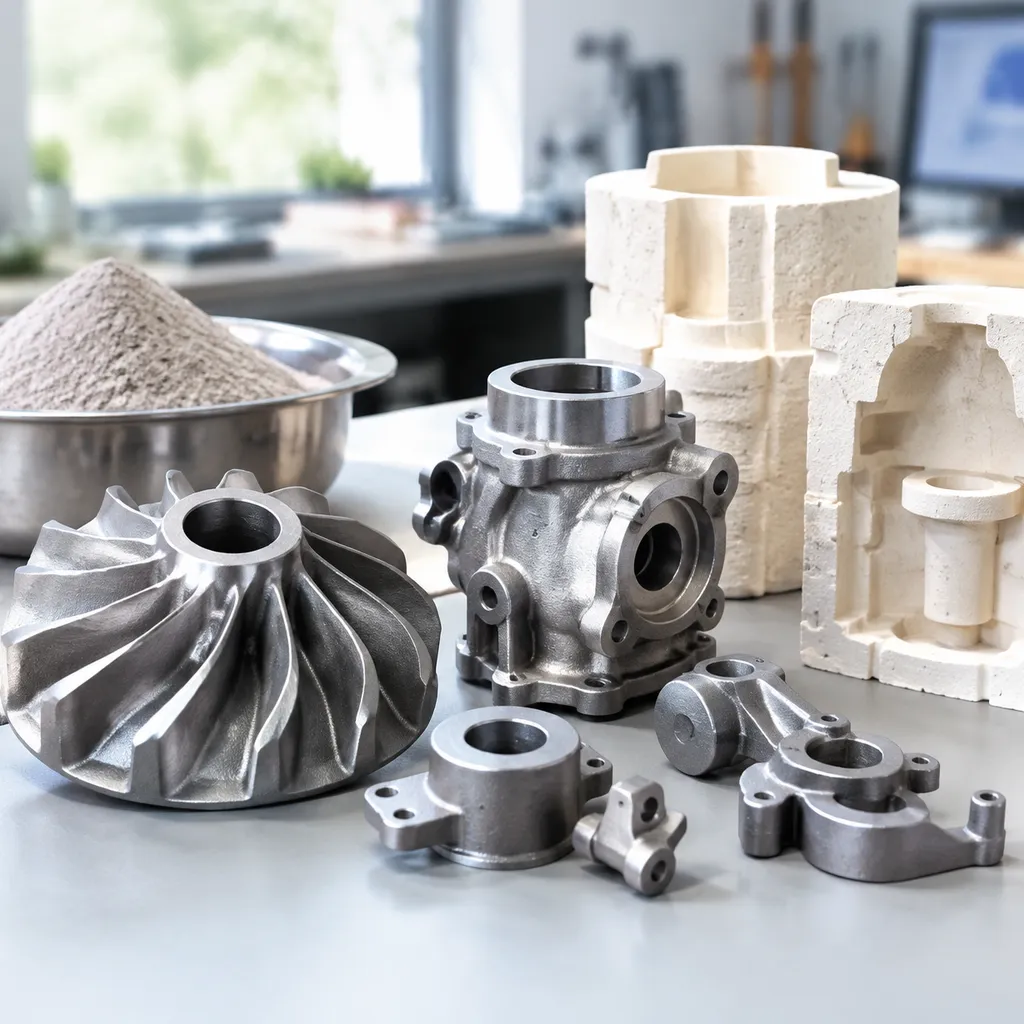

Gradi di materiali e matrice metallurgica per la fusione a cera persa con sol di silice

Coliamo un ampio catalogo metallurgico tramite il nostro processo di fusione a cera persa con sol di silice, soddisfacendo precisi obiettivi meccanici, criteri di usura e limiti di corrosione ambientale. Ogni colata è formulata, colata e verificata sotto rigorosi controlli metallurgici.

Acciai inossidabili: austenitici, martensitici e gradi PH

Produciamo un ampio spettro di fusioni in acciaio resistente alla corrosione con elevata integrità strutturale e finiture superficiali pulite: Gradi austenitici (CF8/304, CF8M/316, CF3M/316L): Resistenza chimica generale, idoneità marina e duttilità criogenica. Gradi martensitici (CA15/410, CA40/420, 440C): Leghe temprabili adatte per finiture di valvole, anelli di usura e superfici di taglio che richiedono un'elevata resistenza a trazione. Indurimento per precipitazione (17-4PH / CB7Cu-1, 15-5PH): Elevato carico di snodo combinato con una moderata resistenza alla corrosione, fornite negli stati trattati termicamente standard H900, H1025 o H1150.

Leghe duplex e super duplex per ambienti aggressivi

Per attacchi severi di cloruri, gas acido e ambienti marini, coliamo leghe duplex ad alta purezza che offrono una superiore resistenza allaVai pitting e alla corrosione interstiziale: 2205 Duplex (CD3MN / UNS S31803 / S32205): Microstrutture bilanciate ferrite-austenite che producono il doppio del carico di snodo rispetto ai gradi austenitici standard. 2507 Super Duplex (CE3MN / UNS S32750): Valori PREN > 42, progettati per collettori sottomarini offshore, sistemi di dissalazione e lavorazioni chimiche aggressive.

Acciai strutturali al carbonio e bassolegati

Quando la resistenza all'usura, la tenacità e la rigidità strutturale hanno la priorità sulla protezione dalla corrosione, fondiamo gradi strutturali economici quasi pronti per la forma finale (near-net-shape): WCB, WCC e acciaio al carbonio comune (AISI 1020–1045): Elementi strutturali standard, corpi resistenti alla pressione e staffe industriali generali. Acciai bassolegati (4130, 4140, 8620): Elevata resistenza agli urti e profonda temprabilità per componenti di trasmissioni, sollevamento e idraulici sottoposti a forte stress.

Superleghe di nichel e cobalto per alte temperature

Per condizioni operative che comportano cicli termici estremi, ossidazione e gas di scarico corrosivi, la nostra fonderia di precisione a cera persa lavora superleghe fuse sotto vuoto e in aria: Leghe a base di nichel: Componenti in Inconel 625, Inconel 718 e Lega C-276 per esposizioni chimiche gravose e resistenza alla rottura per scorrimento a高温 (alta temperatura). Cobalt-Based Alloys (Stellite 6, Stellite 21): Unmatched galling resistance, erosion defense, and high-temperature hardness for severe service seat rings and turbine nozzles.

Chemical Verification and EN 10204 3.1 Certification

We maintain complete heat-to-part traceability on every silica sol casting production run: Optical Emission Spectrometry (OES): Direct chemistry verification prior to tapping and during pour sequences to guarantee elemental compliance. Mechanical Validation: Tensile, yield, elongation, and Charpy V-notch impact testing executed per ASTM and EN test bars. cURL Too many subrequests. Standard delivery includes comprehensive EN 10204 Type 3.1 inspection certificates, detailing batch chemical composition, heat treatment parameters, and mechanical lot acceptance.

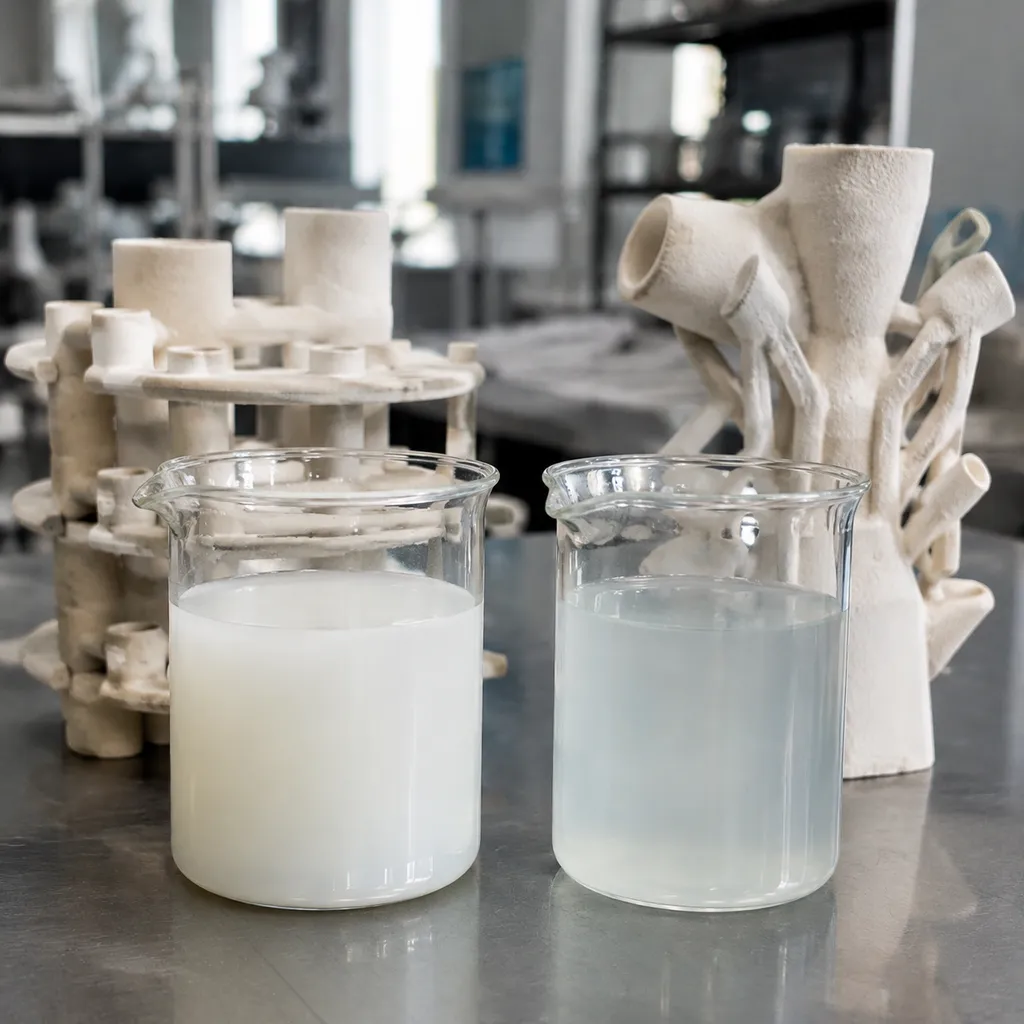

Technical Comparison: Silica Sol vs. Water Glass Casting

When sourcing precision investment castings, choosing between a silica sol ceramic shell and a water glass binder directly dictates your downstream finishing costs, part consistency, and reject rates. We run both technologies, but we reserve silica sol investment casting for critical applications demanding tight linear tolerances, superior metallurgical purity, and smooth as-cast surfaces.

Metric Comparison: Silica Sol vs. Water Glass

Parameter	cURL Too many subrequests.	cURL Too many subrequests.
Typical Surface Roughness (Ra)	1.6 – 3.2 µm (63 – 125 µin)	6.3 – 12.5 µm (250 – 500 µin)
Linear Tolerances (ISO 8062-3)	DCTG 4 – 6	DCTG 7 – 9
Refractory Binder System	Colloidal silica slurry with zircon / mullite	Sodium silicate / quartz sand
Surface Defect Risk	Minimal pitting, no chemical decarburization	Susceptible to orange peel, scab, and pinholes
Wall Thickness Capability	Down to 1.5 mm (0.060 in)	Typically restricted to ≥ 3.0 mm (0.120 in)
Secondary Machining Required	Low to zero (near-net-shape)	High (requires heavy cleanup cuts)

Surface Quality and Roughness Benchmarks

Our silica sol process uses high-purity zircon flour and colloidal silica for the prime coats, producing an as-cast finish of Ra 1.6 to 3.2 µm. In contrast, water glass utilizes sodium silicate binders that react aggressively with molten alloy surfaces, routinely yielding rougher profiles in the Ra 6.3 to 12.5 µm range. For flow-critical components such as pump impellers and fluid meter bodies, the smooth surface of silica sol drastically cuts hydrodynamic friction without requiring secondary polishing.

Dimensional Precision and Thermal Expansion Differences

Silica sol ceramic shells exhibit exceptional thermal stability at pouring temperatures exceeding 1600°C. This uniform thermal expansion allows us to hold repeatable ISO 8062-3 DCTG da 4 a 6 tolerances across long production volumes. Water glass shells soften at lower temperatures, leading to mold distortion, core shift, and wider dimensional spreads (DCTG 7 to 9) that make tight-tolerance assembly difficult without machining.

Shell Integrity, Pitting Prevention, and Decarburization Control

Water glass slurries introduce residual sodium into the mold face. During high-temperature pour cycles, this residual alkali reacts with alloying elements in stainless and low-alloy steels, creating surface pitting, slag inclusions, and significant decarburization layers.

Our automated silica sol slurry dips yield a neutral, high-density shell that resists thermal shock and eliminates mold-metal reactions. This preserves alloy chemistry right up to the part edge, protecting critical faces against the common surface flaws analyzed in our guide to casting defects and prevention solutions.

Total Cost of Ownership and Secondary Machining Reduction

While the initial price per kilogram of water glass casting is lower, silica sol investment casting consistently yields a lower total cost of ownership (TCO) for complex geometry:

• Eliminates rough machining: Near-net profiles eliminate multi-pass roughing cycles on standard functional faces.
• Reduces tool wear: Clean surfaces free of abrasive ceramic burn-in extend the tool life of carbide inserts during finish CNC operations.
• Lowers scrap rates: Consistent part geometry simplifies CNC workholding and reduces setup scrap during production runs.

To evaluate which binder system fits your volume and cost targets, review our detailed engineering breakdown of silica sol casting vs. sand casting vs. water glass casting.

Step-by-Step Workflow for Silica Sol Investment Casting

We run our silica sol investment casting process through a disciplined, six-stage production sequence engineered to control metallurgical purity, surface finish, and tight dimensional tolerances from initial tooling to final heat treatment.

Tooling Design and Wax Pattern Injection

Every run starts with dedicated aluminum tooling designed with precise shrinkage allowances:

• Die Machining: High-grade aluminum dies are CNC-machined to match the solid model, accounting for both wax and metal volumetric shrinkage.
• Iniezione di cera: Temperature-controlled virgin pattern wax is injected under hydraulic pressure into the die cavity, creating flash-free, dimensionally accurate wax patterns.
• cURL Too many subrequests. Individual wax patterns are hand-welded to a central wax sprue and runner system engineered for laminar flow and balanced metal distribution.

Robotic Ceramic Shell Building and Slurry Dipping

Shell construction determines the surface finish and structural integrity of the final cast:

• Primary Coating: Assembled wax trees are dipped into a premium colloidal silica sol slurry and dusted with ultra-fine zircon flour to form a dense, smooth face coat.
• Backup Layers: We apply multiple backup layers using graded mullite and fused silica refractories. We utilize automated casting solutions for high efficiency and quality to standardize slurry viscosity, robot dip paths, and sand-raining cycles across high-volume runs.
• Asciugatura controllata: Each layer dries in an environmentally controlled room with regulated humidity (50% ± 5%) and temperature (22°C ± 2°C) to prevent shell cracking and premature delamination.

Autoclave Dewaxing and High-Temperature Sintering

• Steam Autoclave Dewaxing: The ceramic mold enters a fast-pressurizing steam autoclave (8–10 bar) within seconds, instantly melting out the wax without letting thermal expansion crack the ceramic shell.
• High-Temperature Sintering: Dried shells are fired in gas furnaces at 1000°C to 1150°C for 60 to 90 minutes. This burns out remaining wax residue, fully vitrifies the silica sol binder, and preheats the mold for pouring.

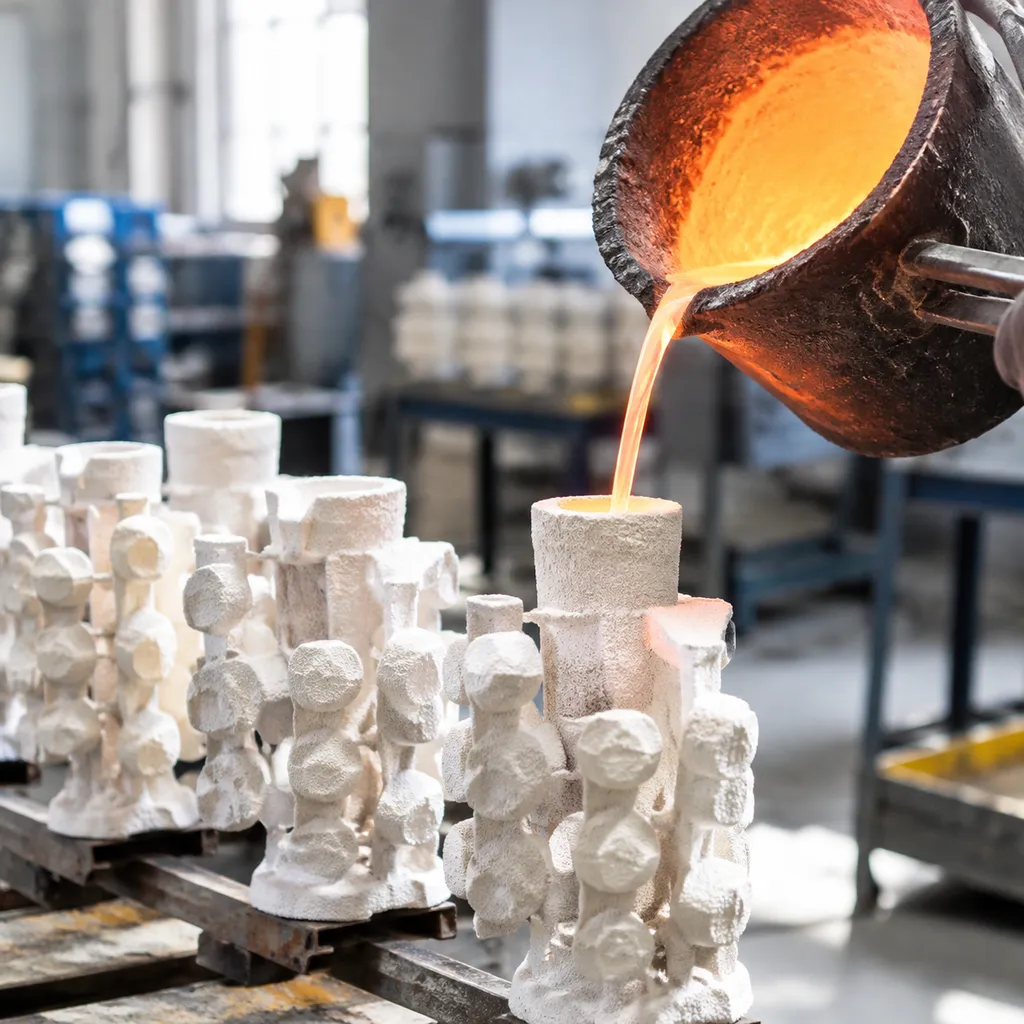

Induction Melting and Slag-Free Pouring

• Medium-Frequency Melting: Raw ingots are melted in clean medium-frequency induction furnaces to minimize gas absorption and melt oxidation.
• Slag Removal & Deoxidation: Slag coagulants isolate impurities, and calculated deoxidizers are introduced prior to tapping.
• Preheated Pouring: Liquid metal is poured directly into the red-hot ceramic shell. Controlling how heat affects metal casting from melting to cooling allows us to regulate directional solidification, avoid cold shuts, and eliminate shrinkage porosity throughout heavy-to-thin section transitions.

Knockout, Cut-Off, and Gate Grinding

• Rimozione Meccanica: Once cooled to ambient temperature, the ceramic shell is broken away using pneumatic hammers and high-pressure water blasting.
• Abrasive Cut-Off: Cast parts are sliced from the central runner using abrasive wet cut-off wheels or plasma torches.
• Smerigliatura dei Canali di Colata: Witness gates are ground flush using multi-axis CNC or manual abrasive belts, blending seamlessly into the component’s outer profile without undercutting base surfaces.

Post-Cast Heat Treatment Cycles

To restore optimal microstructure and meet target mechanical properties, cast parts undergo metallurgical heat treatment tailored to their alloy chemistry:

• Solution Annealing: Austenitic stainless steels (CF8, CF8M) are heated to 1050°C–1120°C and rapidly water-quenched to dissolve chromium carbides and restore peak corrosion resistance.
• Normalizing & Tempering: Carbon and low-alloy steels undergo controlled normalizing cycles to refine coarse as-cast grain structures, followed by tempering to achieve targeted tensile and elongation specs.
• cURL Too many subrequests. Complex geometries and thin-walled parts receive sub-critical stress-relief cycles prior to final CNC finish machining to lock in dimensional stability.

Secondary Processing & Value-Added Services for Silica Sol Investment Casting

While silica sol investment casting delivers exceptional near-net-shape accuracy, complex mechanical interfaces often demand tight post-cast operations. We provide complete in-house secondary processing to deliver drop-in, ready-to-use components directly to your production line.

Multi-Axis CNC Precision Machining and Tapping

Castings rarely serve as finished assemblies without precision datum points, critical bearing bores, or threaded ports. We bridge the gap between rough casting and micro-inch tolerances using dedicated machining centers.

• Tight Bore and Face Tolerances: We machine critical fits down to ±0.005 mm (±0.0002 in) to match demanding shaft, seal, and bearing dimensions.
• Complex Multi-Axis Milling: cURL Too many subrequests. five-axis machining capabilities handle angled ports, compound contours, and cross-drilled passages in single setups to lock in true position.
• Precision Tapping and Thread Milling: Standard metric (ISO) and imperial (UNF/UNC/NPT) threads, complete with thread-depth control and gauge verification.
• Custom Tooling and Jigs: We design rigid CNC fixtures specifically around the cast parting lines and datum targets to avoid part deflection during high-speed cutting.

Integrating our stainless steel casting CNC machining services directly at the foundry level cuts lead times, lowers scrap rates, and eliminates disputes over casting versus machining stock allowances.

Electropolishing, Passivation, and Surface Finishing

Chemical and mechanical finishing enhances corrosion resistance, reduces friction, and cleans up visible surfaces on custom precision cast parts.

• Chemical Passivation (ASTM A967 / AMS 2700): Strips free iron from the cast surface, optimizing the passive chromium oxide film on austenitic and duplex stainless steels.
• Electropolishing: Removes microscopic surface peaks, taking as-cast roughness down to Ra 0.2–0.4 µm (8–16 µin) for high-purity pharmaceutical, semiconductor, and sanitary food valves.
• Abrasive Blasting: Automated glass bead and ceramic bead blasting cleans away residual ceramic shell residue and produces uniform matte finishes.
• Pickling and Acid Cleaning: Removes high-temperature heat-treat scale and surface oxides without altering underlying base metal dimensions.

Sub-Assembly, Hardware Insertion, and Functional Kitting

We streamline your supply chain by delivering finished functional units rather than loose castings.

• Threaded Inserts & Hardware: Installation of Heli-Coil wire inserts, self-locking key-sert fasteners, dowel pins, and press-fit bushings.
• Mechanical Sub-Assembly: Mating cast housings with shafts, O-rings, bearings, and retaining rings under strictly monitored torque specifications.
• Pressure and Leak Testing: 100% helium, hydrostatic, or pneumatic submerged testing on machined pump bodies, valve blocks, and manifold castings to ensure zero porosity leaks.
• Custom Kitting and Packaging: Parts packaged in custom thermoformed trays, barcode-labeled, and pre-sorted for direct line-side delivery into your manufacturing cells.

Quality Assurance, Metrology & Testing Protocols

Every silica sol investment casting run goes through systematic dimensional, physical, and non-destructive evaluations before dispatch. We verify internal soundess, alloy composition, and surface geometries against your engineering drawings.

Dimensional Metrology & GD&T Verification

We audit critical dimensions and complex contours using bridge coordinate measuring machines (CMM) and high-resolution optical 3D scanners:

• cURL Too many subrequests. Contact probing for tight-tolerance bores, centerlines, and true position features down to micron accuracy.
• Structured Light 3D Scanning: Full-field surface deviation mapping against native CAD models to inspect complex curves, draft angles, and wall thicknesses.
• Standard Metrology Tooling: Calibrated bore gauges, digital height gauges, thread go/no-go plugs, and surface roughness testers to ensure compliance with specified GD&T callouts.

Non-Destructive Testing (NDT)

To detect sub-surface inclusions, gas voids, or micro-cracks without damaging the components, our certified inspectors execute standard NDT workflows:

• Radiographic Testing (RT): X-ray inspection to detect internal shrinkage porosity and inclusions in high-stress structural sections.
• cURL Too many subrequests. Fluorescent or dye penetrant testing across as-cast and machined surfaces to expose surface-breaking flaws.
• Magnetic Particle Inspection (MPI): Applied to ferromagnetic alloy castings to reveal linear defects and near-surface cracks.
• Ultrasonic Testing (UT): Thickness verification and internal discontinuity mapping for heavy-wall configurations.

Mechanical Testing & Structural Verification

We validate metallurgical integrity per heat and master heat using our comprehensive material testing guide protocols:

• Tensile & Yield Testing: Room- and elevated-temperature stress testing to verify ultimate tensile strength (UTS), yield strength (YS), and elongation percentage.
• Impact Toughness: Charpy V-notch testing conducted down to sub-zero service temperatures for aggressive-environment applications.
• Hardness Verification: Standardized Rockwell (HRC/HRB) and Brinell (HBW) testing across specified datum faces to confirm heat-treatment efficacy.
• Spectrochemical Analysis: Direct-reading optical emission spectrometry (OES) to ensure tight elemental chemistry control before and after pouring.

Quality Standards and Compliance

Our foundry systems operate under internationally recognized management and pressure equipment regulations:

• ISO 9001:2015: Standard quality management covering tool design, process monitoring, and lot traceability.
• IATF 16949: Automotive-grade defect prevention, process capability verification (PPAP Level 3), and rigorous FMEA controls.
• PED 2014/68/EU (Module H): Material validation, non-destructive evaluations, and EN 10204 3.1 inspection certification for pressure-bearing valves, pumps, and fluid equipment.

Industrial Applications & Real-World Use Cases

We utilize the silica sol investment casting process across critical sectors requiring tight dimensional tolerance, clean internal geometries, and pressure integrity. By eliminating parting-line mismatch and core shift, our near-net-shape casting reduces machining stock and raw material waste.

Fluid Handling, Pumps, and Sanitary Valve Hardware

• Components: Impellers, pump volutes, high-pressure regulator bodies, and tri-clamp valve housings.
• Engineering Impact: The silica sol ceramic shell yields an as-cast internal surface roughness down to Ra 3.2 µm, minimizing fluid friction and turbulence. Non-porous microstructures prevent pinhole leaks under hydro-testing up to 300 bar. When designs demand precision-threaded ports or fast finishing, utilizing free-machining grades like AISI 303 stainless steel allows rapid post-cast threading without tearing.

Automotive Brackets, Manifolds, and Structural Links

• Components: Turbocharger exhaust flanges, chassis suspension brackets, engine mounts, and shift forks.
• Engineering Impact: Thin-wall sections down to 1.5 mm reduce assembly weight while maintaining fatigue life. For components subjected to heavy torsional stress and friction, casting high-strength grades such as 1.4057 (AISI 431) martensitic stainless steel delivers the necessary balance of toughness, yield strength, and wear resistance.

Marine Grade 316 Deck Hardware and Components

• Components: Heavy-duty cleats, hawse pipes, thru-hull fittings, hinges, and anchor swivels.
• Engineering Impact: Marine environments accelerate crevice corrosion on rough surfaces. Silica sol investment casting produces smooth, pit-free surfaces on marine-grade AISI 316 and 316L alloys. This minimizes surface prep time before final electropolishing or mechanical buffing.

Food and Pharmaceutical Metering Assemblies

• Components: Dosing pump pistons, sanitary flow-meter bodies, homogenizer valves, and filler nozzles.
• Engineering Impact: Clean-in-place (CIP) and steam-in-place (SIP) processes require smooth passages free of internal voids, gas pockets, or micro-cracks. We cast custom precision cast parts that eliminate bacterial traps and withstand aggressive caustic sanitizing cycles.

Downhole Oil and Gas Instrumentation Enclosures

• Components: Measurement-While-Drilling (MWD) probe bodies, directional drilling control sleeves, logging tool housings, and valve chokes.
• Engineering Impact: Operating in sour-gas environments demands corrosion-resistant steel castings produced in duplex, super duplex, or high-nickel alloys. Our process ensures uniform wall density to handle bottom-hole hydrostatic pressures exceeding 15,000 PSI without structural collapse.

Frequently Asked Questions About Silica Sol Investment Casting

What is the typical lead time for custom tooling and initial samples?

Our standard lead time for aluminum injection tooling and first-article samples runs 15 to 25 business days, depending on part complexity and internal coring requirements:

• Tooling fabrication: 2 to 3 weeks for precision CNC-machined dies.
• T1 samples & FAI: 7 to 10 days to inject wax patterns, build the ceramic shell, pour, and generate full CMM inspection reports.
• Rapid prototyping option: For urgent design verification, we offer 3D-printed wax patterns that ship as finished metal castings within 5 to 7 days, eliminating the upfront wait for dedicated hard tooling.

Can multi-part welded assemblies be converted into single-piece castings?

Yes. Converting multi-piece welded fabrications into a single, near-net-shape investment casting is one of our primary methods for cutting total production costs. Consolidating multiple parts into a monolithic casting:

• Eliminates joint-line stress concentrations and risks associated with common welding faults.
• Reduces assembly labor, secondary fixturing, and post-weld NDT overhead.
• Allows optimized, organic wall transitions and internal fluid contours that welded plates cannot achieve.

What CAD file formats are required for DFM evaluation?

To conduct a comprehensive Design for Manufacturability (DFM) review and mold-flow analysis, we prefer:

• 3D models: STEP (.step, .stp) or Parasolid (.x_t) for gating calculations, draft analysis, and shrinkage compensation.
• 2D drawings: PDF or DWG with defined critical-to-quality (CTQ) dimensions, geometric dimensioning and tolerancing (GD&T), alloy grade callouts, and target surface roughness parameters.

Review our technical guide on how to choose the right metal casting and machining process to assess how draft angles and section thicknesses impact part manufacturability.

How does the process eliminate gas porosity and shrinkage defects?

We mitigate internal defects through controlled mold design and precise metallurgy:

• Directional solidification: We run simulation modeling (ProCAST) to place risers, chills, and gating cross-sections so hot spots freeze progressively back toward the runner system.
• Shell breathability: The silica sol ceramic shell maintains high refractory permeability, allowing trapped cavity air and mold gases to vent outward under pouring temperatures up to 1650°C.
• Clean melting practice: Medium-frequency induction melting, combined with argon shielding and thorough deoxidation slag removal, ensures dissolved gases are purged prior to the pour.

What are the standard minimum order quantities for production runs?

We support both development phases and sustained high-volume programs:

• Prototype & Pilot Runs: As low as 25 to 50 pieces to validate your fit, form, and functional assembly.
• Series Production: Standard batch runs typically range from 500 to 10,000+ pieces per year.
• Tooling Longevity: Our aluminum wax-injection molds support upwards of 100,000 injection cycles with zero cavity degradation, maintaining tight repeatability across multi-year purchase orders.
